GPS Automotive Fakra Antenna for Car
| Price: |
US $ 1-3/Piece |
| Trade Terms: |
FOB |
| Min Order: |
50/Piece |
| Pay Type: |
T/T |

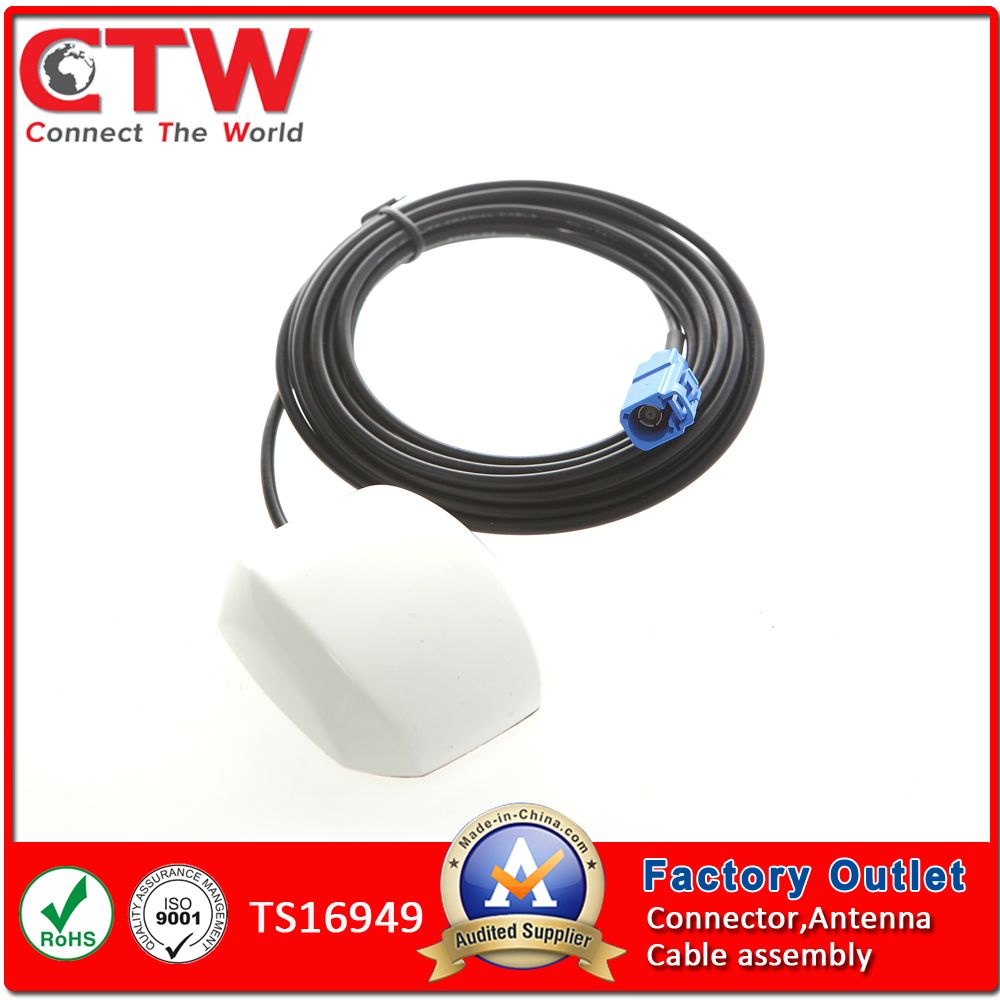

GPS Automotive Fakra Antenna for Car
Product Specification| Item | Specification |
| GPS Antenna | Ceramic
microstrip
antenna | CF | 1575.42MHz |
| BW | CF±5MHz |
| Polarization | RHCP |
| Gain | 2.5dBic(Zenith) |
| VSWR | <=1.5 |
| Axial Ratio | 3dB(max) |
| Impedance | 50Ω |
| LNA | Gain | 28±2dB |
| NF | <=1.5 |
| VSWR | <=2.0 |
| With table attenuation | 30dB@CF+50MHz/20dB@CF+50MHZ |
| Supply voltage | 3.0V-5.0V |
| Current consumption | <=25mA |
| Structure | Antenna size | 56mm×53mm×13mm |
| Coaxial line | RG174/Length can be customized |
| Connector | FAKRA |
| Installation method | Screw or tape |
| Shell material | PC/ABS |
| Dustproof and waterproof | IP67 |
| Operating temperature | -40ºC~+85ºC |
Features and Benefits- Strong R&D team which is dedicated to research,design,analyze and test innovative antenna systems
- Professional and efficient mechanical and RF simulation toolis to make sure the perfect antenna performances
- One stop solution to design and manufacture all kinds of antennas for industrial and automotive applications
- Provided quad band,muti-function module,AM/FM short whip,embedded BT antenna,stealth GSM and GPS antenna,and the TPM antenna,RFID antenna
- Customeized and standard antennas design and manufacture
- Strict quality control and end to end process
Applications- Industrial RFID antenna
- Asset tracking external /internal antenna
- Automotive muti-function antenna
- Wireless alam,security and monitoring systems
- Vehicle tracking systems
FAQQ: Could i use my own LOGO or design on goods?A: Yes, customized logo and design on mass production are available.Q:May I visit your factory?A: Sure, welcome any time. Q: What's your company MOQ?A: our company don't have MOQ. We also accept small quantity.Q: Can your company accept customize?A: Welcome OEM & ODM.Q: What's your delivery time?A:If our company have stock ,will send to you within one day once receive your deposit.If use customer brands, we will take some days to prepare materials and mass production.Q: How do you solve after sale service?A: This please ask us for technical support if you have workers know how to repair.If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.Q: Can you send a sample for us to develop?A: Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee.At the same time. the Sample fee will return back in future order. If thesamples cost is lower, we can send it to you free, but shipping cost will be took .
| Prod Model: |
GPS Antenna |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fixture Type: |
Screw |
| Connector: |
Fakra |
| Used: |
Car |
| OEM: |
Yes |
| NF: |
<2.0dB |
| Usage: |
GPS |
| Operating Wavelength: |
Microwave |
| Directionality: |
Omnidirectional Antenna |
| Material: |
N/a |
| VSWR: |
Less Than 2.5 |
| Base Antenna: |
N/a |
| Nature Of Operation: |
Recieve and Transimit |
| Dimensionality: |
Rhcp |
CTW is founded in the end of 2013. It is a private enterprise.
CTW is a global professional provider for connectors, antennas and wire harness,
We are dedicated to providing innovative solutions & high quality products for industrial, telecommunications & networking, military, medical and automotive markets.
We have got the ISO9001 and TS16949 certification.
Our revenue was 1millon USD in 2014, 2.5millon USD in 2015, will be up to 4.5 millon USD in 2016
We have:
- Professional & experienced R&D / Engineering team who are dedicated to reserch and development;
- Early involvment and collaborative design capability;
- Rigorous and controlled manufacturing process and excellent quality system;
- Strong project management team focus on early involvement, time to marked, cost control and others;
Our company name is CTW: Connector the world. Our product is around the world and industrial area is our prospect.
