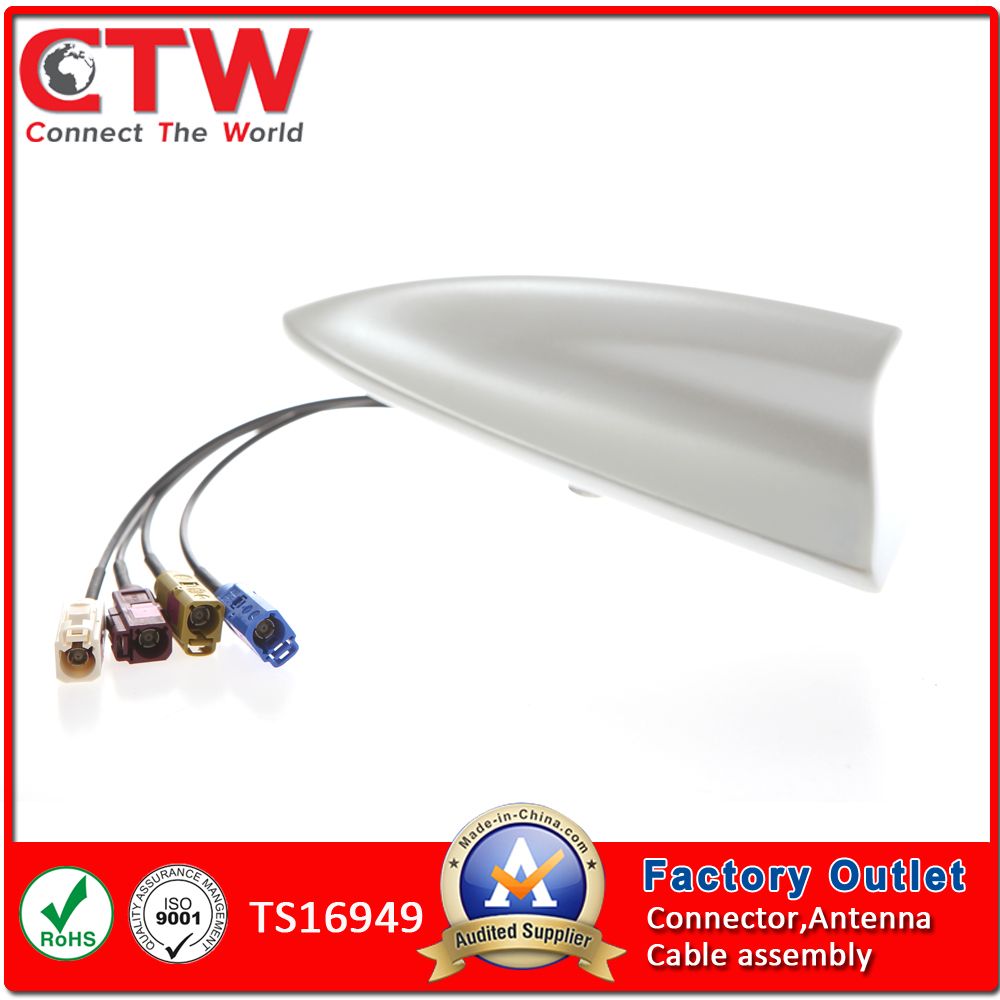

OEM Am/FM Shark Fin Antenna
| Price: |
US $ 9.5/Piece |
| Min Order: |
500/Piece |
| Pay Type: |
T/T |
OEM AM/FM Shark Fin Antenna
Product Specification| Item | Specification |
| AM/FM | AM/FM | Type | | |
| Working frequency | AM | |
| FM | |
| Polarization | Linear |
| Average gain | >=-4dBi |
| Output impedance | 75Ω |
| LNA | Gain | AM:6±2dB(Voltage gain) |
| FM:10±2dB(Power gain) |
| AGC Dynamic Range | 30dB |
| VSWR | <=2.5 |
| Noise | AM<=-6dBuV(Noise voltage) |
| FM<=3.7dB(Noise figure) |
| Supply voltage | 6-24V |
| Current consumption | <=80mA |
| Output impedance | 75Ω |
| Power supply | Coaxial line |
GPS/BDS
Antenna | Ceramic
microstrip
antenna | CF | 1559MHz-1577MHZ |
| Polarization | RHVP |
| Gain | 1dBic(Zenith) |
| VSWR | <=2.0 |
| Axial Ratio | 3dB(max) |
| Impedance | 50Ω |
| LNA | Gain | 28±2dB |
| NF | <=1.5 |
| VSWR | <=2.0 |
| With table attenuation | 30dB@CF+50MHz/20dB@CF+50MHZ |
| Supply voltage | 2.7V-5.5V |
| Current consumption | <[email protected] |
4G MIMO Main
antenna/Vice antenna | Frequency Range | 824-960MHz/1710-2690MHz |
| VSWR | <=2.5 |
| Polarization | Linear |
| Gain | >=1dBi |
| Impedance | 50Ω |
| Isolation | Main and auxiliary antenna isolation | 10dB(Min) |
| Structural characteristics | Size | 183mm×79mm×52mm |
| Coaxial line | RG174 |
| 4G MIMO Antenna connector | FAKRA-Z |
| GPS/BDS Antenna connector | FAKRA-C |
| AM/FM Antenna connectoe | FAKRA or others |
| Installation method | Screw fixation |
| Radome material | PC/ABS |
| Colour | Customized |
| Working Temperature | -40ºC~+85ºC |
| Waterproof Level | IP67 |
Features and Benefits- Strong R&D team which is dedicated to research,design,analyze and test innovative antenna systems
- Professional and efficient mechanical and RF simulation toolis to make sure the perfect antenna performances
- One stop solution to design and manufacture all kinds of antennas for industrial and automotive applications
- Provided quad band,muti-function module,AM/FM short whip,embedded BT antenna,stealth GSM and GPS antenna,and the TPM antenna,RFID antenna
- Customeized and standard antennas design and manufacture
- Strict quality control and end to end process
Applications- Industrial RFID antenna
- Asset tracking external /internal antenna
- Automotive muti-function antenna
- Wireless alam,security and monitoring systems
- Vehicle tracking systems
FAQQ: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q:May I visit your factory?
A: Sure, welcome any time.
Q: What's your company MOQ?
A: our company don't have MOQ. We also accept small quantity.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: What's your delivery time?
A:If our company have stock ,will send to you within one day once receive your deposit.
If use customer brands, we will take some days to prepare materials and mass production.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee.At the same time. the Sample fee will return back in future order. If the
samples cost is lower, we can send it to you free, but shipping cost will be took .
| Impedance: |
50Ω |
| Connector: |
Fakea |
| Installation Method: |
Screw or Tape |
| Radome Material: |
PC/ABS |
| Usage: |
GPS |
| Operating Wavelength: |
Microwave |
| Directionality: |
Omnidirectional Antenna |
| Material: |
N/a |
| VSWR: |
Less Than 2.5 |
| Base Antenna: |
Automotive Antenna |
| Nature Of Operation: |
Recieve and Transimit |
| Sturcture Form: |
PCBA with Cable |
| Dimensionality: |
Linear |
