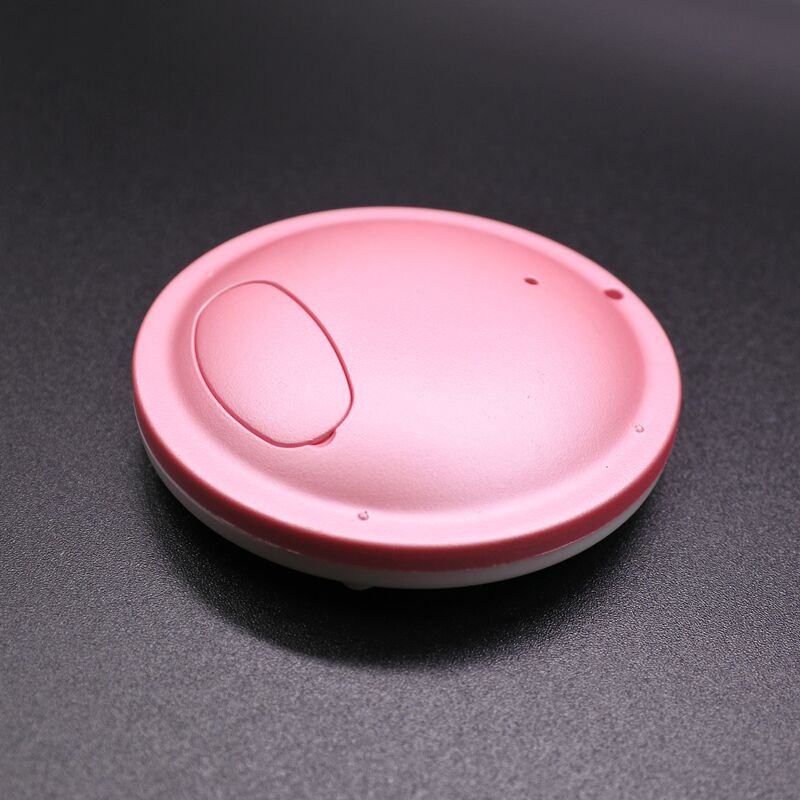

gps collar pet tracker with Collar

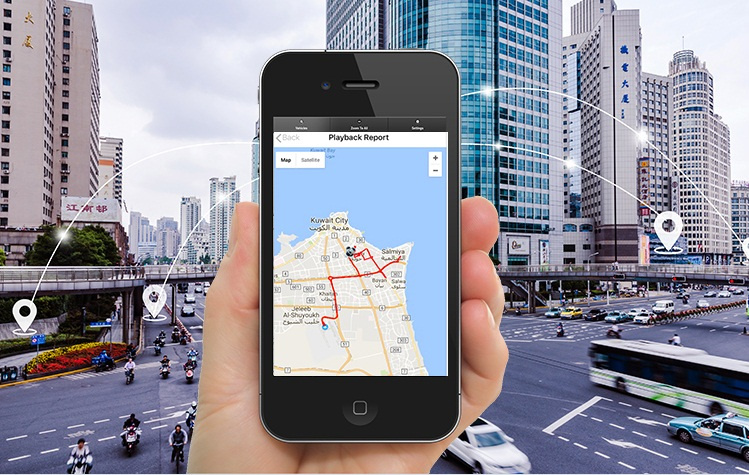

1. Functions1) real-time GPS, LBS, WIFI positioning2) historical playback3) safe zone4) two-way call (SOS emergency call)5) voice monitoring6) vibration alarm7) remote shutdown2 .Specifications| Items | Parameters |
| CPU | MTK MT6261 |
| GSM frequency band | 850/900/1800/1900MHz |
| GPS chip | MTK6261 |
| GPRS | class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| WIFI location accuracy | 5~15M |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average stndby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| GPS antenna | Built in high sensitivity ceramic antenna |
| GSM antenna | FPC antenna |
| Texture of material | ABS environmental protection material |
| supported operating systems | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring |
| GSM+GPRS+GPS+wifi | GPS+LBS+WIFI Multi-modal positioning(Optional) |
| support AGPS | Cold start 26 seconds positioning |
| call function | SOS call, voice monitor, whitelist for don't disturb |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | SOS one key emergency function ,autodialing |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters |
| Language support | Compatible with support for multi-languages |
| 3D gravity sensor | Support |
| MIC | Support |
| Whole machine size | 49*49*5 mm |
| Packing size | 11.5cm * 7.5cm * 3.5cm |
| Weight | 29g no packaging, 46g packaging box |
| gps antenna | High sensitive ceramics active antenna |
| battery | 800mAh |
| G-sensor | support |
| I/O port | DC seat charging |
| Standby time | 15 day |
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
