PRODUCT FEATURES:Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.GPS / LBS Double locating mode , support A-GPSKeelin Tracking Service Platform, Keelin APP Client, SMS queryElder phone, big font, big button ,big speaker, One key to family , Nice DialOne Key SOS, Healthy managementHigh-capacity lithium battery, long standby A key flashlight, FM radio, pedometerGPS time, real-time latitude and longitude coordinates, altitudeLocally record GPS track to generate PLT fileSupport EELINK protocol, can be integrated to any platform of the customer'sOTA upgrade firmware.Standby time : 7-8 days(under closing GPS )
Satellite Positioning Accuracy: 5-15 m ( Depend Satellite signal)LBS Positioning Accuracy: Over 100m( Depend Bases Density)Dimensions (mm): 115.5(L) *54.2(W) * 16.4(H)
Weight(g):110gPLATFORM/APP:Real-time TrackingRoute Play BackSOS AlarmListenPedometerSpeed AlarmGeo-fence AlarmLow Battery Alarm
Parameter: | GPS positioning accuracy | 5-15m (Depend GPS signal) |
| GSM Positioning Accuracy | About 200m (Depending on density of base stations) |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/Warm/Cold Start time | <3s,<15s,<60s |
| Battery Capacity | 2000mAh |
| Dimensions (mm) | 115.5(L)X54.2(W)X16.4(H) |
| Operating Temperature | -20ºC~65ºC |
| Operating Humidity | 20%~80%RH |
| Weight | 110g |
Feature:

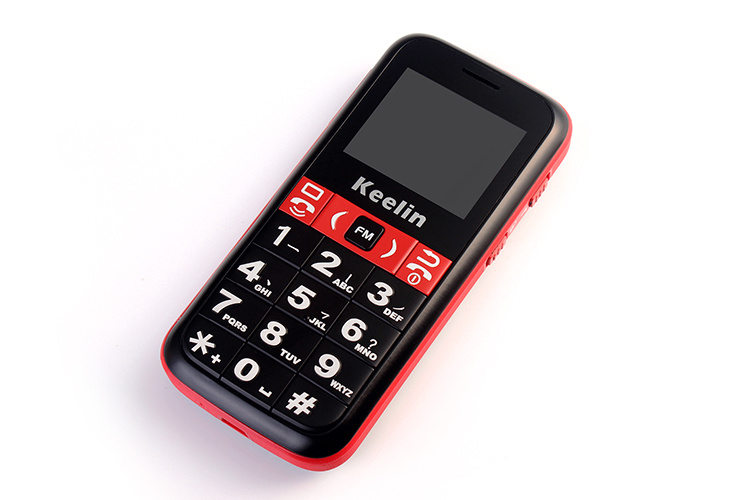

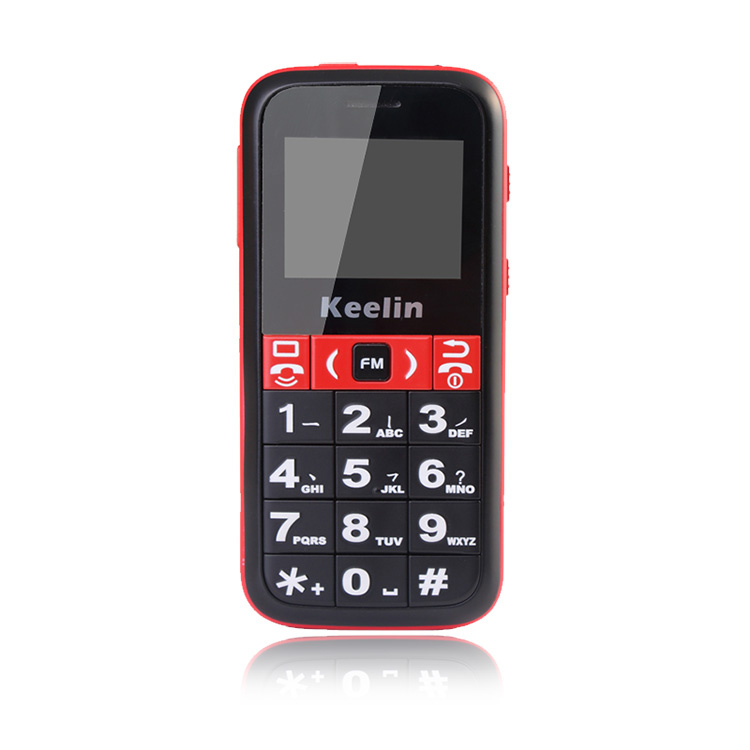

1.Automatic Handsfree,mobile phone as well as gps tracker,special for the elder
2.High flashlight, Large font, Loud voice, support TF card, Loud speaker of music and radio
3.High-accuracy GPS chip, GPS/LBS intelligent switching to realize accurate position
4.Keelin Tracking Service Platform, Keelin APP Client, SMS query
5.Remotely monitor, SOS alarm and many useful alarms/alerts
6.Call straight line to the elder (can get through even not answering the phone)
7.Built-in pedometer, daily activity of the elder is clearly seen from APP mobile client
Attention:
- Please recharge K20 when receive a low battery alarm.
Platform:You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server. Accessories (Optional):Relay/ Microphone/SOSDelivery:*Sample and mini order will be delivered within 1-2 working days after the receipt of payment. *For order over 500PCS or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000PCS stocks in advance per month. Warranty:*All products have been strictly Quality Checked in house before packing. *All products have been well packed before shipping. *One year warranty is provided for all models. We will bear maintenance cost during warranty.
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
