| Prod Model: |
car motorcycle GPS303G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE FCC |
| Network: |
GSM GPS |
| Weight: |
65g |
| GPS Sensitivity: |
-159dBm |
| Quad Band: |
850/900/1800/1900MHz |
| GPS Accurancy: |
5m |
| Back Up Battery: |
Chargeable 3.7V 500mAh Polymer Li-Battery |
| Anti-Theft Alarm: |
Engine Cut Remotely |
| Arm Alarms: |
Acc, Shock Sensor Alarm |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Type: |
GPS Tracker |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
GPS Satellite Positioning and Data Transmit by GSM |
| Model: |
GPS Tracker 303G |
| Brand: |
GPS Tracker |
| Chip: |
No |
Product Description
1. Summary
1.1 Working Based on existing GSM/GPRS network and GPS satellites, Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety. This product can locate and monitor any remote targets by SMS or internet.
1.2 Features
1.2.2 Built-in GSM, GPS antenna, compact, elegant appearance.
1.2.3 Support GPS and LBS (Location based service) double tracking solutions.
1.2.4Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions includes in CD in package)
1.2.5 Support configure the settings remotely
1.2.6Set multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Functions

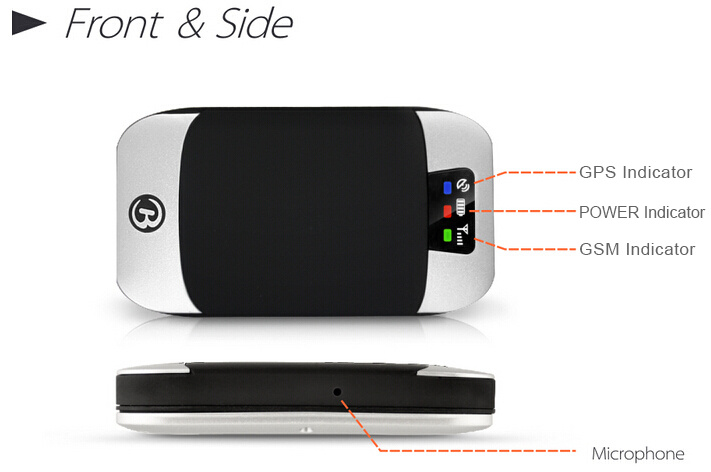

GSM/GPS LED Indicator
Initialization
Change Password
Authorization
Single Locating
Auto track continuously
Automatic update positions of vehicle turns
GPS drift suppression
Absolute street address by SMS
Location based service (LBS)
Voice Monitor
Data logging
Data Load
Forward the third parties' message
Charges Inquiry
Alarm Function
Low battery alarm
External Power off alarm
GPS blind Spot alert
SOS
Geo-fence
Multi-area management
Movement alarm
Over speed alarm
ACC working alarm
Alarms under Arm State
1 ACC alarm
2.Shock Sensor alarm
Alarm without GSM network service
Check the Vehicle State
Reset Hardware
Sleep Mode
1 Sleep by time
2 Sleep by shock sensor
3 Deep Sleep by shock sensor
4 No sleep mode
Scheduled wake-up
Check IMEI
Set up Terminal (local) Time
TCP / UDP Switch
Configure parameters by USB
GPRS setting
Less GPRS traffic
Modes Switch between "SMS" and "GPRS"
Set up monitor center number
Cut off the Oil and Power System
Specifications
Content | Specification |

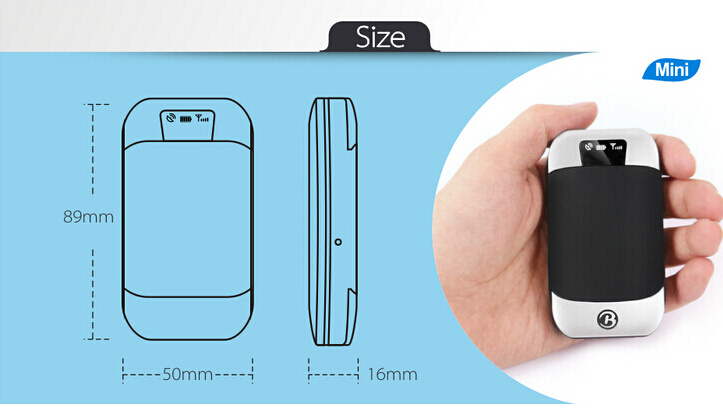

DIM | 8.9×5.0×1.6cm |
Weight | 65g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accurancy | 5m |
GPS start time | Cold status 45s Warm status 35s Hot status 1s |
Car power supply | 12 V -24V |
Back up battery | Chargeable 3.7V 500mAh Polymer Li-Battery |
Storage Temp | -40°C to +85°C |
Operation Temp. | -20°C to +65°C |
Humidity | 5%--95% non-condensing |
FIVE tracking solutions:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Free PC based tracking application (send you in CD package)
4. Optional web server
5. Free mobile tracking app for android/IOS phones

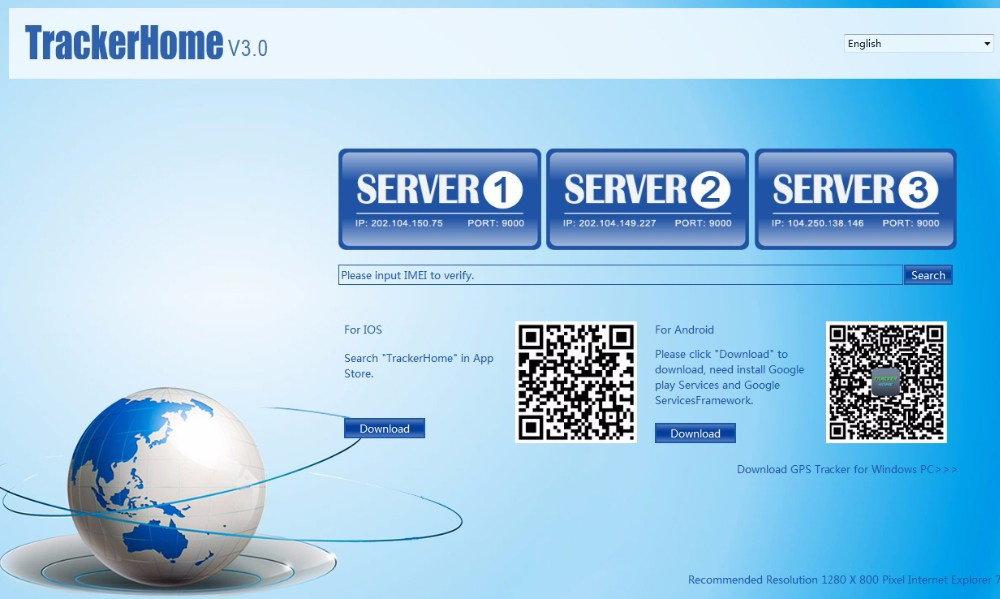

Web Platform tracking
APP tracking
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
