Rope Innovation Co., Ltd. >> GPS Tracker Small Size Geo-Fence Protect for Bike M558

GPS Tracker Small Size Geo-Fence Protect for Bike M558

GPS Tracker Small Size Geo-Fence Protect for Bike M558
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

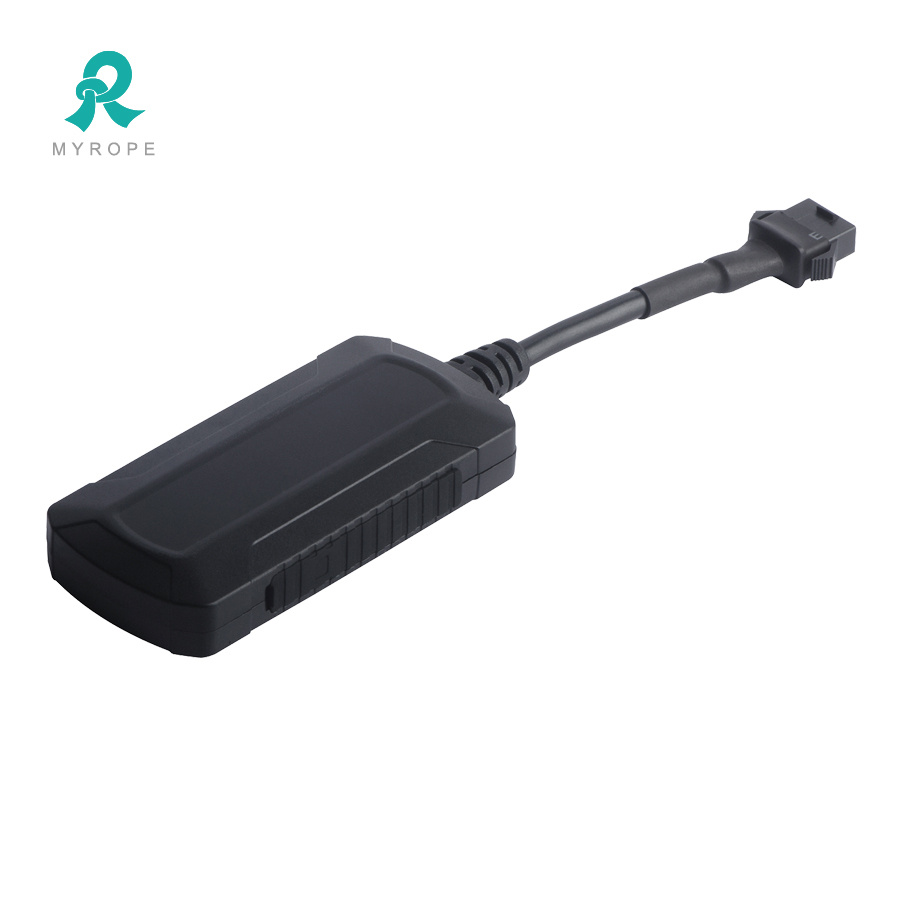

                      GPS Tracker Small Size Geo-fence protect  for bike M558

1. Product Overview
   M558 GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for getting location data from satellite, and GSM module is for transferring data to server so that people can check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable performance and versatile functions,can be applied to various kind of fleet management like construction trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.


2. Functions

Smallest size, as small as USB dongleParking alarm;
Built-in antenna;Tired driving alarm;
Track by SMS or GPRS;History playback;
Real time tracking at intervals; Mileage statistics;
Resend data from signal dead zone; Reports statistics;
Low power alarm;Remotely update firmware.
Overspeed alarm;
  Geo-fence alarm;


3. Specifications

work voltage8VDC~100VDC
work current50mA~160mA
GSM moduleFour Band: GSM 850/900/1800/1900Mhz    Quectel M26
Communication protocolUDP/TCP(can be customized)
GPS moduleUblox chipset
GPS sensitivity-159dBm
 GPS frequencyL1, 1575.42 MHz
 C/A coding 1.023 MHz chip rate
 Channels 20 channels examine track
 Position accuracy 10 meter, 2D RMS
 Speed  accuracy 0.1 meter/second
 Tine accuracy GPS time synchronization
 Default data WGS-84
 Recover Average 0.1 second
 Hot start Average 1 second
Warm bootAverage 38 second
Cold bootAverage 42 second
Height limit18,000 meter (60,000 feet) max
Speed limit515 kilometer/second (1000 knots)max
Acceleration limitLess than 4g
Work temperature-20°~ 70° C
Storage temperature-30°~ 85° C
Humidity5% ~ 95%  noncondensing
Terminal size55mm × 28mm × 12mm
Inside batteryContinuous working no less than 4 hours

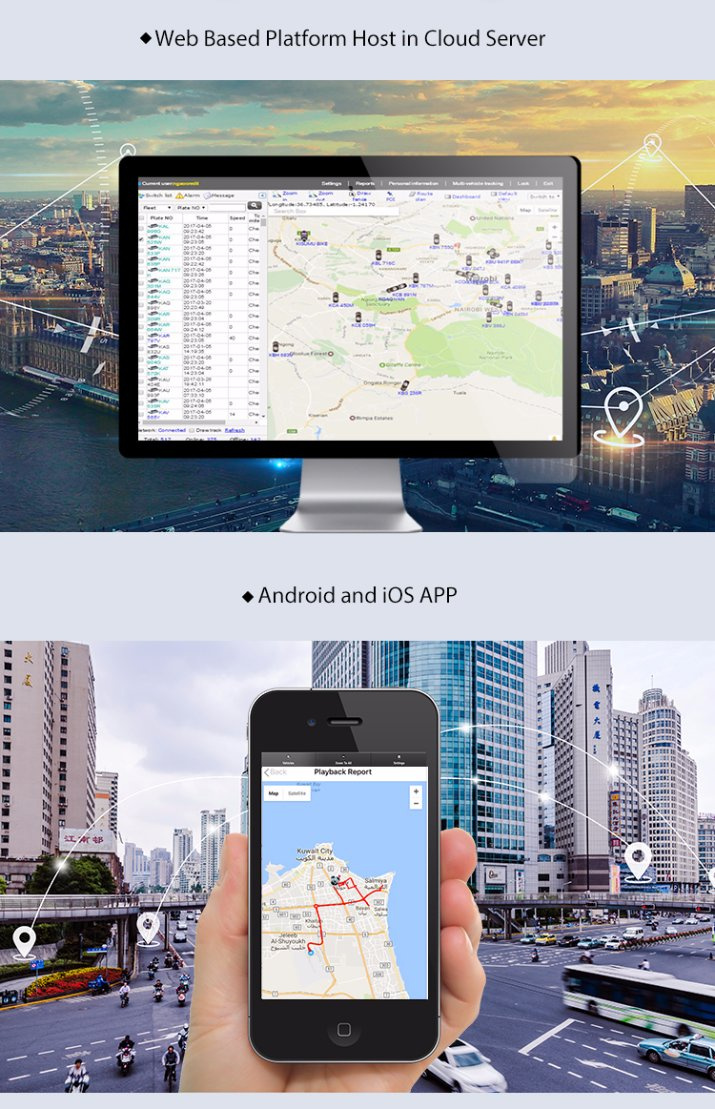

4. Web Platform & APP










Prod Model: M558
GSM Module: Quectel M26
GSM Frequency: 850/900/1800/1900 MHz
GPS Chipset: U-Blox 7020
Warranty: 12 Months
Tracking Software: Free Websited Based Platform and Mobile APP
Accuracy: 5 Meters
Server: Cloud Server
Weight: 0.2kg
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.

Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.

With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.

We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
