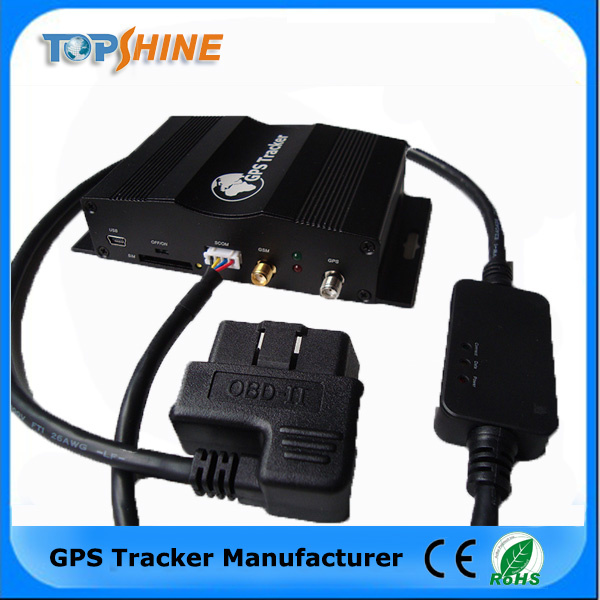

VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera(location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; Support OTA(upgrade over the air) for upgrading new firmware by GPRS if needed; With harsh braking&acceleration alarm and accident alarm; And many useful functions and extensibility for fleet management and vehicle security purposes.
Features and Functions:
1. GPS tracker + RFID car alarm
2. OTA function
3. Support max 64G SD card store
4. Two way communication
5. Support Active RFID & passive RFID
6. Full fleet manage
7. Support max 4 fuel sensor manage
8. Unique RFID car alarm function
9. Driver(student) ID identify
10. Photo with location & driving information log function
11. ARM9 high speed microcontroller
12. Accident alarm(Option)
13. Harsh braking and harsh acceleration alarm
14. Check the car's real physical address (such as city name,
Street name...(need support of the SMS01 or GPRS01 center)
Application:
Suit for Vehicle security / Fleet management
Complete Set:
Standard Package:
Main unit
1PCS
GSM antenna
1PCS
GPS antenna
1PCS
Wire harness
MIC
1PCS
Relay
1PCS
1PCS
Optional Accessories
Camera
Fuel sensor
Temperature sensor
Active RFID kit
Passive RFID kit
SD card
Crash sensor
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 110mm x 80mm x 30mm |
| Installation Dimension | 110mm x 80mm x 30mm |
| Weigh | 180g |
| Operating temperature | -20° to 75° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status.One SOS button |
| Button | SOS |
| Interface | 5 inputs,5 outputs, 4 A/D ports, MIC&Speaker port, camera port, RS232 port, SD card slot |
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
Professional Consulting Services
With years of service experience, we have built up a good reputation and a strong
Professional team to provide strategic solutions and technical advice in fleet
Management. We work closely with all our clients to define their problems and
Expectations and tailor the best solution to solve their fleet management problems.
Our role is more than a technology provider who is assisting you to drive your
Business to be more profitable and competitive.
Customer Integration Services
Our team will support you as you work to integrate the GPRS01 system into your
Operations. We provide complete servicing from the installation to the maintenance of
Each tracking unit. A member of our customer support team will help coordinate the
Times and location for unit installation and demo/training times at your convenience,
While you, our client, can concentrate on managing your business.
On-Site Training Services
Once we have installed our units in your fleets, a training session will be arranged to
Familiarize all necessary parties with the software. We also provide a customer service
Help desk to assist you should you have any further questions. Our strong customer
Service team will ensure you understand the system and can put it to good use.
Customer Care Services
Customer satisfaction is a critical element for us. We care about our clients' needs,
Ideas and opinions. We make sure our products and services satisfy or exceed our
Client's expectations.
