PRODUCT FEATURES:
Supports quad bands,i.e. 850/900/1800/1900MHz, universal in the world.
Wide Input Voltage:6-36V DC.
Double Module,GPS precise positioning with A-GPS, LBS positioning for assist.
Uploaded by GPRS regularly, Real-time tracking and history route playback.
Supports ACC status checking and vehicle status notifying.
Built-in battery, Power disconnect alarm & Low battery alarm.
Built-in Motion sensor ,Vibration, collision and falling alarm.
GEO-fence alarm, speed & shift alarm.
Remotely cut oil / electric by Relay.
Extend GPIO port to add extension function(Need Customization).
Multiple protocol support, can be integrated to platform of customers
OTA upgrade firmware.
PLATFORM/APP:
Real-time Tracking
Route Play Back
Cut Oil (Need Relay)
Vibration Alarm
Collision / Falling Alarm
Speed Alarm
Geo-fence Alarm
Power Disconnect Alarm
Low Battery Alarm
Base Specifications
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Curren | <10mA@12V |
| GPS positioning accuracy | 5-15m |
| GSM positioning accuracy | 100-200m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 800mAh |
| Dimensions (mm) | 85.8(L)x30.6(W)x10.8(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 33 g |
Main Function Table
| GPS | OK |
| AGPS | OK |
| Remote cut oil/engine | OK |
| Monitor/listen | NO |
| ACC | OK |
| OBD diagnostics | NO |
| Built-in battery | OK |
| Pedometer | NO |
| Power failure Alarm | OK |
| Low power Alarm | OK |
| SOS Alarm | NO |
| Speed Alarm | OK |
| Shift Alarm | OK |
| Collision Alarm | OK |
| Falling Alarm | OK |
| Vibration Alarm | OK |
| Geo-fencing Alarm | OK |
Scenarios:

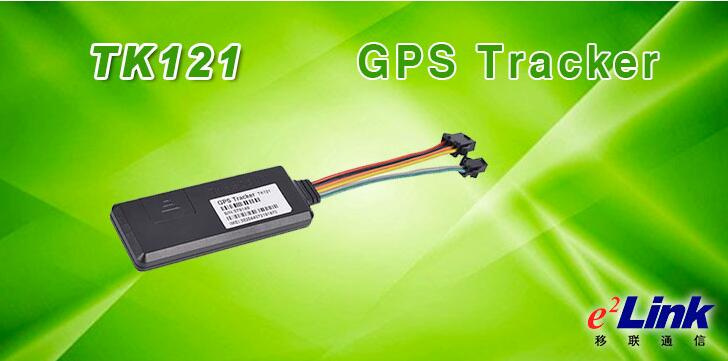

TK121 GPS Tracker has a very wide range of industrial and commercial applications, small and powerful,wide voltage 6-36V , cutting oil , can be trackered on the platfrom through computer & smart phone.
Typical application areas : logistics enterprises, fleet management, bus management, insurance , power , oil , telecommunications , taxi , car sales , car rental , vehicle maintenance , technology researchers.
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Our solutions
Shenzhen Eelink Communication Technology Co. Ltd aims at win- win cooperation and provides complete tracking solutions according to different clients' requirements.
1.Brand Agent of Keelin, use Keelin platform and App.
2.OEM Cooperation. we offer our products and neutral platform to customers,or we only offer products and provide protocol for customer's platform research.
3.Research and customization. We could cooperate with customers based on their different requirement in terms of large production.
4.Technical Solutions for different industries.
