| Prod Model: |
TK 103 gps tracking |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Type: |
GPS Tracker 103 |
| Color: |
Black |
| Engine Stop: |
Yes |
| APP Tracking Software: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Feature: |
GPS Personal Tracker |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS GPRS GSM Tracking |
| Port Number: |
20 |
| Model: |
103b+ |
| Screen Size: |
No Screen |
| Chip: |
Ns1315 |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description

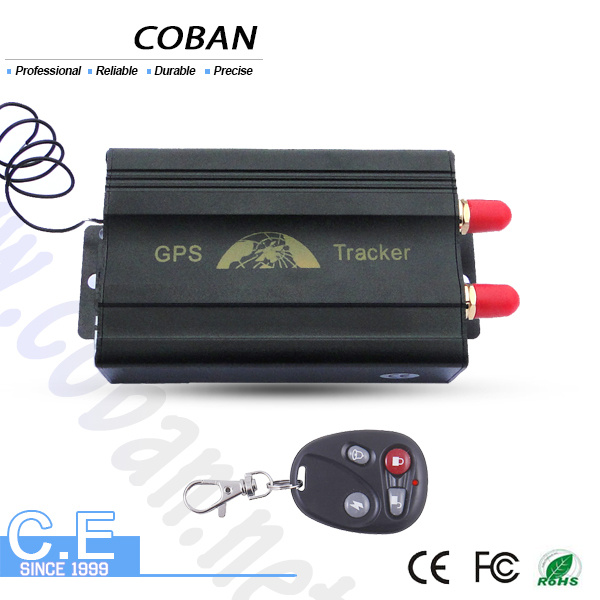

TK103 B+ GPS TRACKER
Product Description:
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.Detailed description:
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by several ways.provide monitor software and global map.real-time track with web based platform, pc based software and Andriod and ios Apps.
* Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: Simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Functions:
SOS button Geo-fence, movement, over-speed, low-battery alarm
Arm: door alarm, ACC alarm, shock sensor alarm
Engine stop and restart by SMS GPRS flow save LBS, authorized number added and deleted function
Supports hidden alarm and monitor function SMS tracking by calling with Google's map link
Get absolute street address by SMS Free soft
Optional Web server
New functions:
Auto track continuously:
Automatic update positions of vehicle turns GPS drift suppression
Supports data storage/logging
Support data load to platform
Forward/transmit the third parties' message
Charges inquiry
Multi-area management
Accident alarm (optional)
ACC working alarm TCP/UDP
Configure by USB
Dual-SIM card
Dual-fuel sensor
Lock/unlock door
Optional functions:
Quiver/sensor alarm 24V relay (optional)
Siren, extra remote control
Applying directions:
Vehicle fleet/logistics/vehicle rental
Specifications:
Content |
specifications |
DIM. |
83*54*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage |
12 V -24V
|
Backup battery |
Chargeable 3.7V500mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing
|
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
