GSM Base Station Antenna 806-960MHz 12dBi Base Panel Directional Antenna
Features:
This antenna is extensively applied to ETC system and warehouse management;
IP65 protection rating design and adapt to harsh working.
About us:
Techcrepower is one very professional card products supplier since 2006, we had provided hundreds of millions of Smart card, RFIDcontactless card, ABS key tag, NFC tag, Wristband tag, Disc tag … with various chips 125KHZ/13.56MHZ in China and worldwide.
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!
Electrical specifications |
Frequency Range(MHz) | 806-960Mhz |
Polarization | Vertical |
Impedance | 50 Ohm |
Gain (dBi) | 12dBi |
Radiation | Directional |
Half power Beam Width | H:65 V:30 |
Front to back ratio | ≥18 |
VSWR | ≤1.5 |
Maximum input power (W) | 400w |
Lighting Protection | Direct Ground |
Mechanical specifications |
Connector | N Female |
Dimensions (Height*Width*Depth) | 700mm*280mm*80mm |
Packing weight (kg) | 6kg |
Radiating Material | UPVC |
Operating temperature (ºC) | -40~60 |
Mounting hardware (mm) | Ø35-90mm |

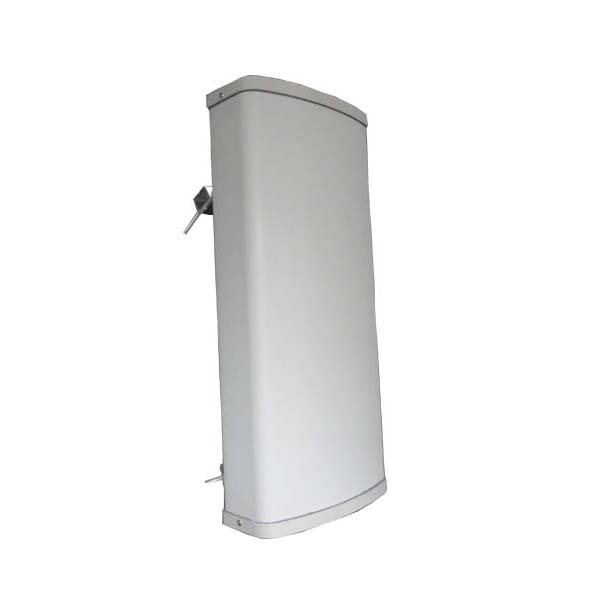

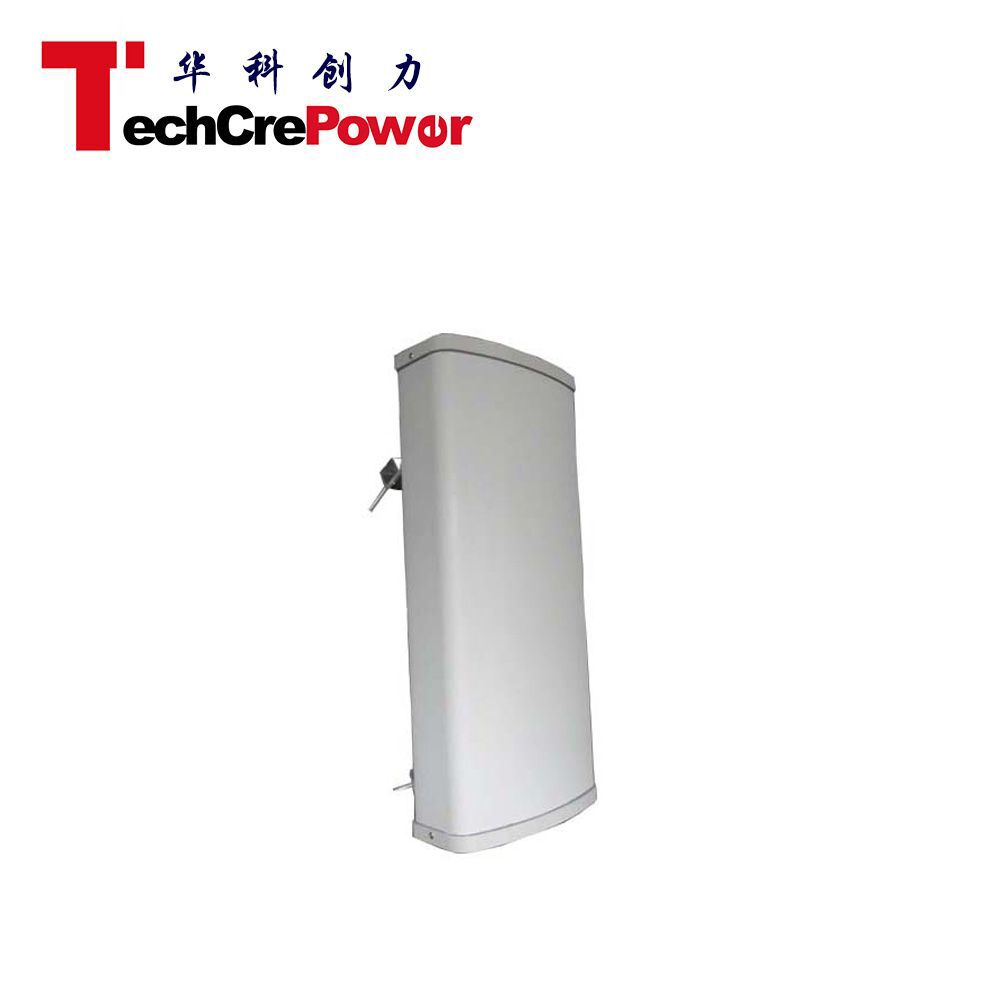

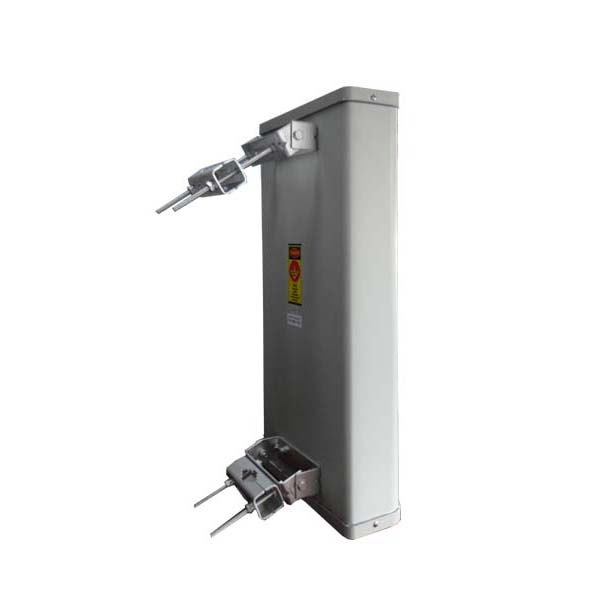

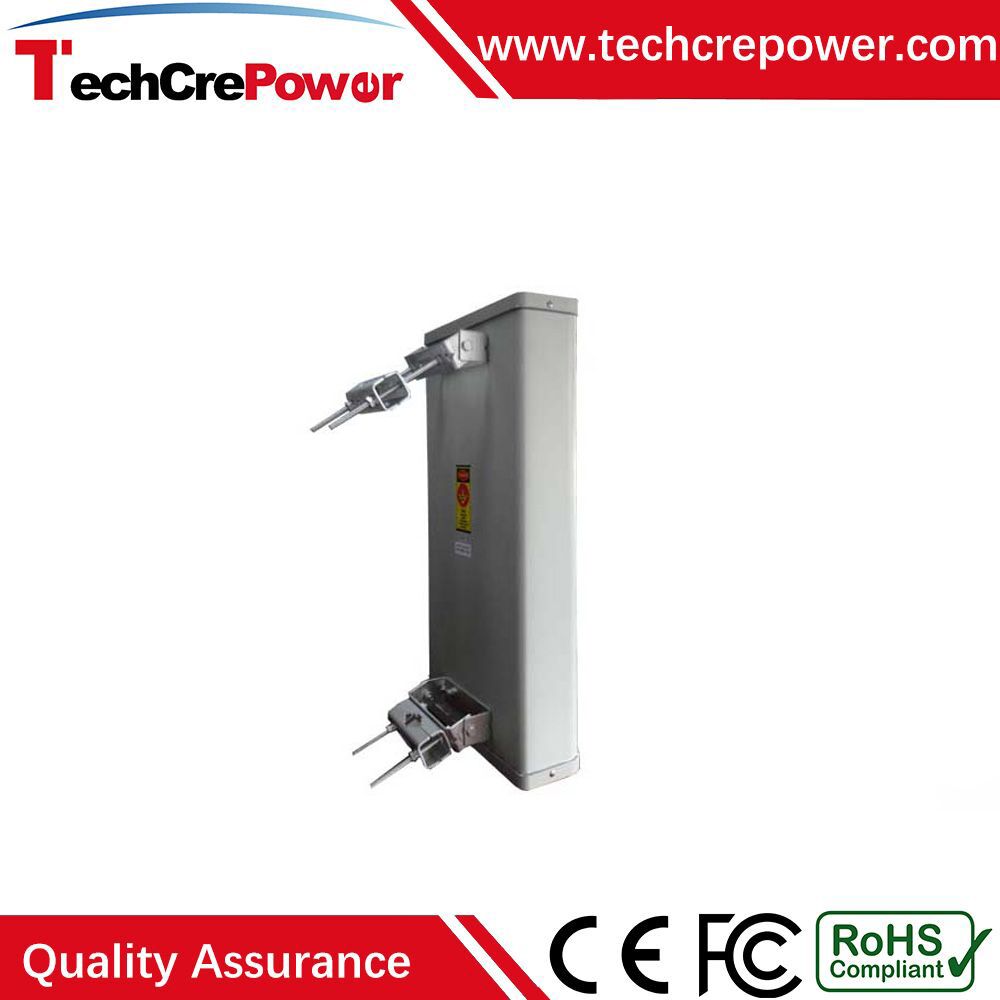

Product Photo:
Product Certification:

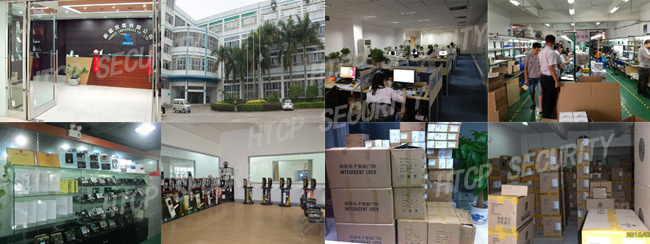

Our Factory:
Our Advantage:1. Professio nal R&D department, can offer you OEM/ODM services;
2. Professional technique supports and good service;
3. We strictly control the quality and regard it as our base for existence! QC staffs make piece-by-piece checks for all products.
Products are conducted aging test for 72 hours.
4. Our products are chosen high quality materials and ensure the prophase stability.
5. Our products meet ISO, CE, FCC, RoHS certificates;
Our Target:Provide cost-effective products and timely services with the concept of "one store purchasing", realize win-to-win cooperation!
How to Pay:By T/T, paypal, western union, Moneygram, L/C
How to Deliver:1. Fast way: By express, e.g. DHL, Fedex, UPS, TNT, EMS... take about 3-7 days. 2. Cheap way (small package): By China post, take about 15-70 days. 3. Cheap way: By Air or by Sea shipment for heavy and big goods.
The Warranty:We provide 1~2 years warranty from the date of delivery but lifetime technical support.
