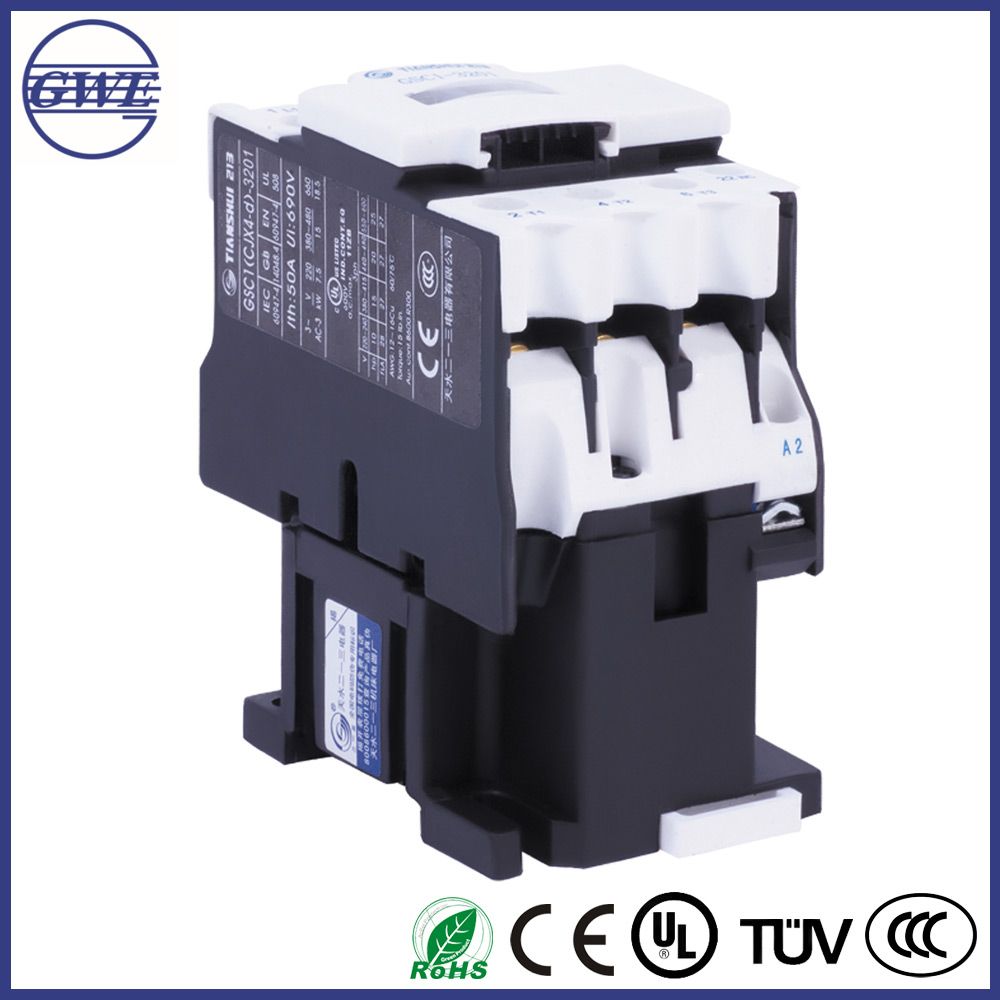

GWE GSC1 Series AC Contactor

Name: GWE GSC1 Series AC Contactor
Brand: all-electronics-online.com
SKU: 835172725
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	US $ 6.85-82.7/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

GSC1 series contactor is used in frequency 50HZ (or 60HZ), rated insulation voltage is up to 690V, 9A-95A rated isolation voltage up to 690V, 115A-150A rated isolation voltage up to 1000V and rated current 150A under rated voltage 380V and category AC-3 circuit , for long-distance making and breaking circuit , and can interoperable with appropriate thermal overload relay as electromagnetic starter to protect overload circuit .

Type	Rated Current	Contact Volume	Rated Voltage
GSC1-0901/10	9	3P+1NO or 3P+1NC	380V
GSC1-1201/10	12
GSC1-1801/10	18
GSC1-2501/10	25
GSC1-3201/10	32
GSC1-3801/10	38
GSC1-4011	40	3P+1NO+1NC
GSC1-5011	50
GSC1-6511	65
GSC1-8011	80
GSC1-9511	95
GSC1-115	115	3P
GSC1-150	150
GSC1-115	86		660V
GSC1-150	107		660V

Coil Voltage Specification

Type	Power frequency	Coil Voltage
Type	Power frequency	24V	48V	110-120V	220-240v	380V	415v
GSC1-09~38	50/60HZ	B7	E7	F7	M7	/	/
	50HZ	/	/	/	/	Q	/
	60HZ	/	/	/	/	/	Q

Type	Power frequency	Coil Voltage
Type	Power frequency	24V	48V	110V	120V	220V	240V	380V	415v
GSC1- 40~65	50/60HZ	B7	E7	F7	/	M7	/	Q7	/
	50HZ	B	E	F	/	M	/	Q
	60HZ	/	/	/	F	/	M	/	/
GSC1-115/150	50/60HZ	B7	E7	F7	/	/	/	Q7	Q

Prod Model:	GSC1 (GWE)

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
