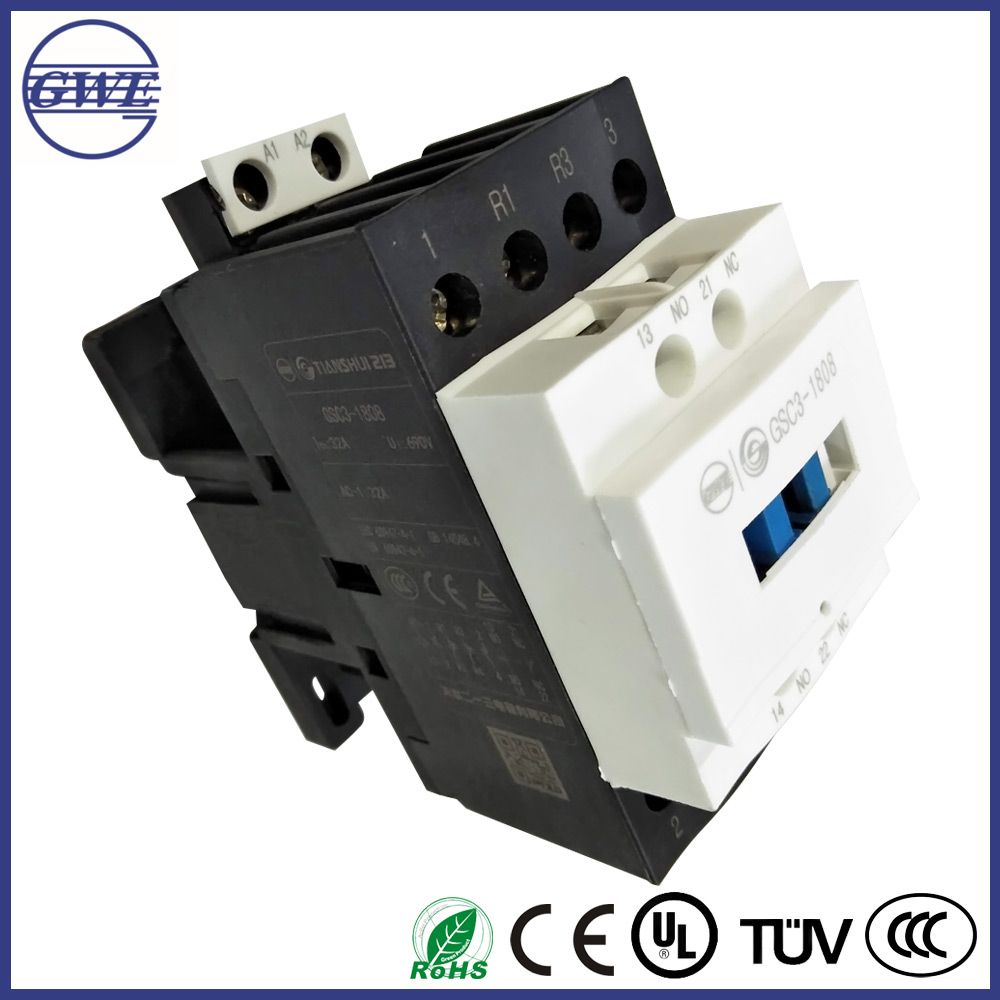

GWE GSC3 Series of Tetrapolar AC Contactor

Name: GWE GSC3 Series of Tetrapolar AC Contactor
Brand: all-electronics-online.com
SKU: 835174055
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	US $ 9.72-20/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

The GSC3-0904-2504 series product (with four normally opened contacts) is mainly applicable to the AC 50Hz (for 60Hz )three-phase four-wire circuit with the nominal insulation voltage of 690V ,the rated operational Voltage up to 690V and the rated operational current up to 25A under the rated operational voltage of 380V in category of AC -3,for remotely connecting and disconnecting the current.

Type	Conventional thermal current Ith (A)	Category AC-3		Quantity of contacts
		Rated operational current Ie (A)
		380V	690V
GSC3-0904	20	09	6.6	4P+1NO+1NC
GSC3-1204	25	12	8.9
GSC3-1804	32	18	12
GSC3-2504	40	25	18

The GSC3-0908-2508 series product (with two opened contacts and two closed contacts) is mainly applicable to the AC 50Hz (for 60Hz ) circuit with the nominal insulation voltage of 690V ,the rated operational voltage up to 690V and the rated operational current up to 40A under the rated operational voltage of 380V in category of AC -1,mainly for switching the circuit for loads like the loads with low sensitivity, tiny sensitivity or resistance furnace.

Type	Conventional thermal current Ith (A)	Rated operational current Ie (A) Category AC-1	Quantity of contacts
GSC3-0908	20	20	2P+2R+1NO+1NC
GSC3-1208	25	25
GSC3-1808	32	32
GSC3-2508	40	40

Coil Voltage specification

Type	Power frequency	Coil Voltage
Type	Power frequency	24V	36V	48V	110v	220V	380V
GSC3-0904/0908~2504/2508	50/60HZ	B7	C7	E7	F7	M7	Q7

Prod Model:	GSC3 (GWE)
