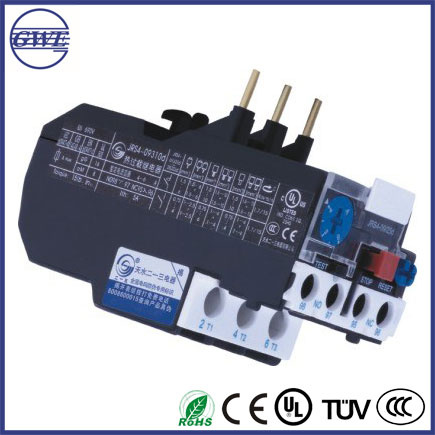

GWE JRS4-d Series Thermal Overload Relay

Name: GWE JRS4-d Series Thermal Overload Relay
Brand: all-electronics-online.com
SKU: 835193135
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 10.26-39.92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

JRS4-d Series thermal overload relay is relay is used in AC 50HZ (or 60HZ); rated voltage is up to 660V,for protecting AC motor against overload or phase-breaking.

Parameters Type		JSR4-09d~25d	JSR4-32d	JSR4-40d~80d	JSR4-140d
Rated insulation Voltage (V)		690V
Ambient temperature		-5~40
Elevation		≤2000
Standard		Relative humidity not exceeding 50% at the ambient temperature 40ºC,humidity up to 90% at the ambient temperature 20ºC
Storage environment		Temperature -25ºC ~ +55ºC,Relative humid(at 25ºC)is 95%
Pollution grade		3pole
Out frame protect grade		IP 10
Connect minimum load of attached circle		24V 10mA
Lead No. Of main circuit connect terminal	Soft wire (mm sq)	4	10	16	-
	Hard wire (mm sq)	6	16	25	50
	Root	2	2	1	1

Prod Model:	JRS4-d(GWE)
