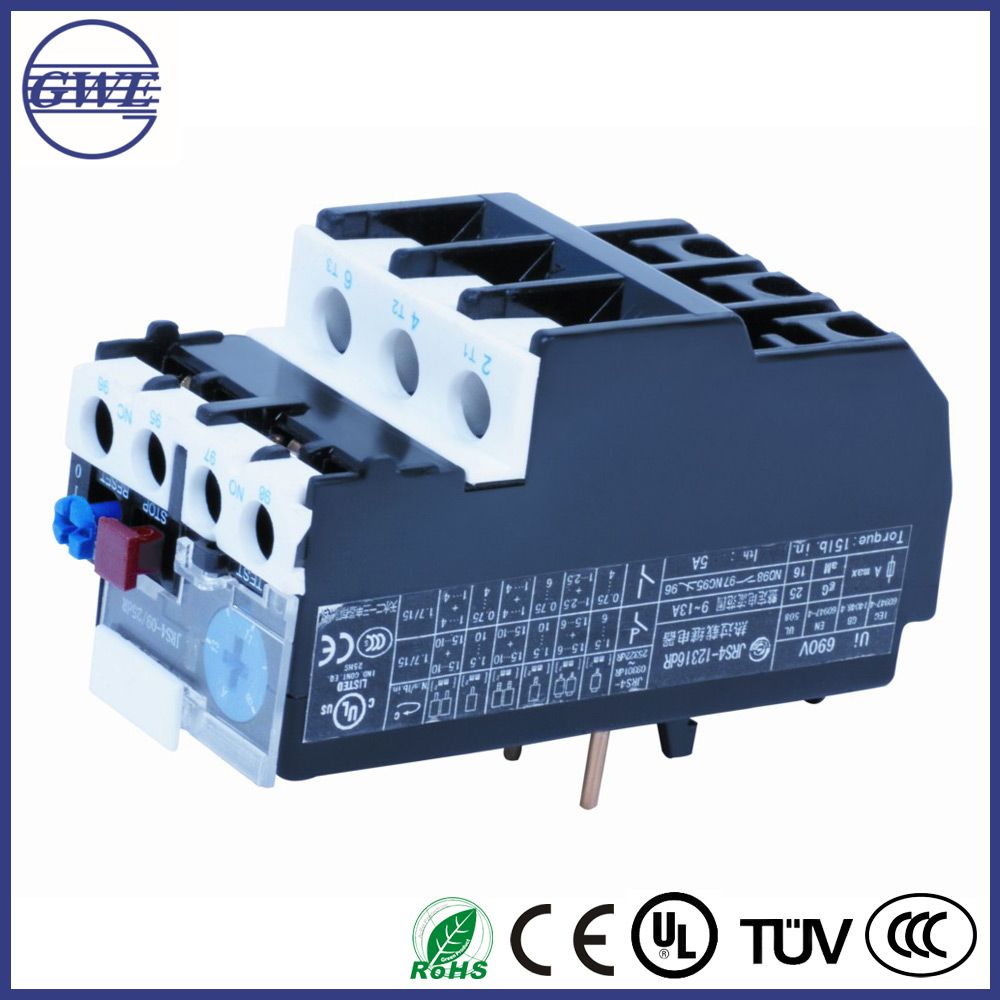

Thermal Overload Relay GWE JRS4-dR Series

Name: Thermal Overload Relay GWE JRS4-dR Series
Brand: all-electronics-online.com
SKU: 835193895
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 11.12-25.66/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JRS4-dR (GWE)
Structure Type:	Bimetal thype

Product Description

JSR4-dR Series thermal overload relay is used in AC 50Hz (or 60Hz); Rated insulation voltage is 690V, rated voltage is up to 660V, current is 0.1A-70A, for protecting AC motor against overload or phase-breaking.

Type		JSR4-09~25dR		JSR4-32dR	JSR4-40~65DR
Ui (V) Rated insulation voltage		690
Attached Circle	Ue (V) Rated work voltage and use classification	AC-15: 380V 220V DC-13: 220V 110V
	Conventional thermal current	5A
	Connect minimum load	24V, 10mA
Ambient temperature		-5~+40
Elevation		≤2000
Environment condition		Relative humidity not exceeding 50% at the ambient temperature 40ºC, humidity up to 90% at the ambient temperature 20ºC
Standard		IEC60947-4 GB14048.4 GB14048.5
Storage environment		Temperature -25ºC ~ +55ºC, Relative humid(at 25ºC)is 95%
Pollution grade		3Pole
Out-frame protect grade		IP20
Installing conditions		The tilt and swing gradient ≤ 5 degree
Main circuit Wiring Capacity	Soft wire (mm sq)	4	10		25
	Hard wire (mm sq)	6	16		35
	Root	2	2		2

Lanzhou Great Wall Electrical Power Equipment Co., Ltd. (EPE for short) is established in 2009, and is the centralized export business platform of Lanzhou Great Wall Electrical Corporation (GWE for short). The main business is to market high-voltage, medium-voltage and low-voltage switchgear and electrical components, system integration for projects at abroad.

Great Wall Electrical products are widely used in power generation, transmission and distribution, nonferrous metals, metallurgy, petrochemical, coal, transportation, municipal infrastructure construction and other areas of the national economy.

The company's products export to about 62 countries and regions in Europe, Aisa, Africa, Austria, America. At current our company has established office agencies in North America, Southeast Asia, South Asia and Middle East. Company adopts direct and indirect export marketing mode, formed a certain scale of export in the international market, yearly adding up sales of $100 million in recent years. Company overseas customer focus on Aluminum distribution box in America, subway project in Pakistan, social housing project in Angola, the state grid project in Equatorial Guinea.
