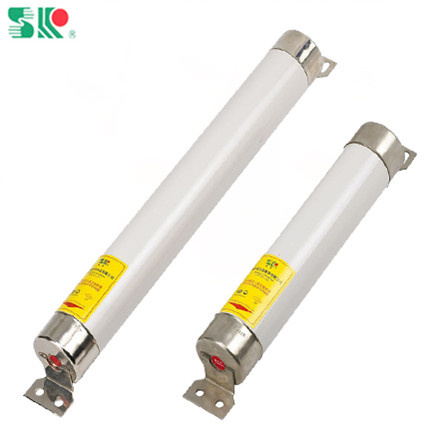

H. V HRC Fuse Types a/B for Transformer Protection

Applicatoins
    H.V HRC current-limiting fuses type A/B for transformer protection is mainly used in AC 50Hz, rated voltage 3.6-40.5KV, rated current up to 160A circuit for protecting transformers and power equipment from overload and short-circuit. It can also be used with load switch, vacuum contact.
    It conforms to IEC282-1, GB15166.2 and BS standard.

Design Features
    A/B type H.V HRC current-limiting fuses is bus-bar installation. The fuse link is fastened to the bus bar directly with bolts. It is small in volume, reliable inconnection. The striker parallels to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistant, high duty ceramic or epoxy glass. When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting or automatically cutting the circuit.
    A/B type H.V HRC current-limiting fuses has many merits and high current-limiting ability, high breaking capacity, quick and punctual in action, reliable in performance.

Foreign model	Department	Rated voltage(KV)	Rated current(A)	Rated breaking current(KA)	Diameter(mm) D	Length(mm) L1
ADFH	XRNT1	3.6	6.3, 10, 16, 20, 31.5, 40	31.5	51	254
ADGH	XRNT1	3.6	6.3, 10, 16, 20, 31.5, 40, 50, 63,80,100	31.5	51	359
ADFH	XRNT1	7.2	6.3, 10, 16, 20, 31.5, 40, 50, 63	20	51	254
AFFH	XRNT1	7.2	80,100	31.5	76	254
BDGH	XRNT1	7.2	6.3, 10, 16, 20, 31.5, 40, 50, 63,80	31.5	51	359
BFGH	XRNT1	7.2	190,100,125,140,160	31.5	76	359
ADFH	XRNT1	12	6.3, 10, 16, 20, 25, 31.5	12	51	245
BDGH	XRNT1	12	6.3, 10, 16, 20, 25, 31.5, 40,45,50	31.5	51	359
BFGH	XRNT1	12	56,63,71,80,90,100	31.5	76	359
AKGH	XRNT1	12	112,125	31.5	76	359
ADIH	XRNT1	24	6.3, 10, 16, 20, 25, 31.5	12	51	565
AFIH	XRNT1	24	40,50,63,80,90	16	76	565
ADIH	XRNT1	40.5	3.15,5,6.3, 10, 16, 20, 25, 31.5	16	51	565
AFIH	XRNT1	40.5	40	25	76	565
AFKH	XRNT1	40.5	50,63,71	25	76	914
