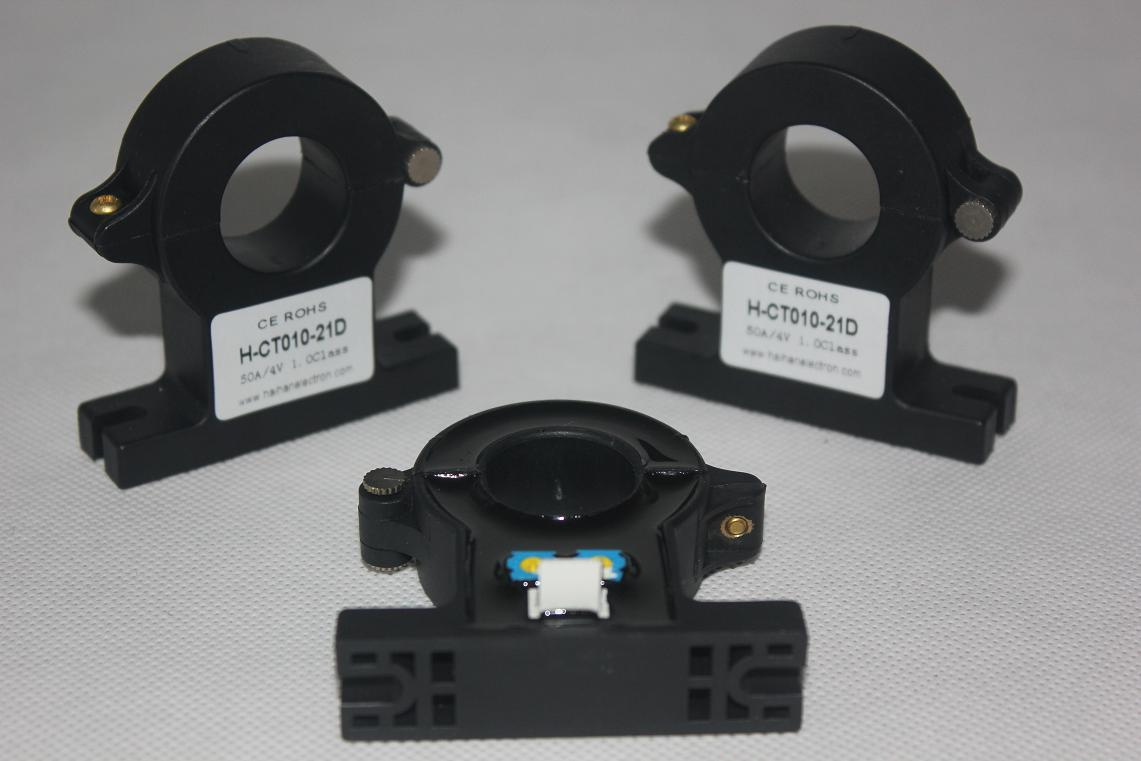

Hall Effect Current Sensor 50A

Name: Hall Effect Current Sensor 50A
Brand: all-electronics-online.com
SKU: 814578135
Availability: InStock
Rating: 4.9 (79 reviews)

Price:	US $ 8.5-9.8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1,Mainly technial specification

Model	H-CT010-21D(diameter21mm)
Current range	0-50A
Accuracy	1.0Class

2,Features.
1),Closed loop type
2),Voltage or current output
3),Panel Mounting
4),JST connector

3,Advantage
1),Excellent accuracy
2),Very good linearity
3),Low termperature drift
4),Wide frequency bandwidth
5),No insertion loss
6),High immunity to external interference
7),Optimsed response time
8),Current overload capability

4,Detail technial specification

Item	Symbol	H-CT010-21D	H-CT010-21D
Primart nominal current	If	200A	300A
Maximum current@Vcc=±15V	Ifmax	±300A(at Rm=30Ω)	±300A(at Rm=30Ω)
Conversion ratio	Kn	1:2000	1:2000
Rate output voltage	Vo	4V	4V
Accuracy	Class	1.0	1.0
Ambient operation temperature	Ta	-20ºC to +70ºC	-20ºC to 70ºC
Ambient storage temperature	Ts	-20ºC to 85ºC	-20ºC to 85ºC

Prod Model:	H-CT010-21D
Model:	H-CT010-21d
Current Ratio:	50A/4V
Rate Current:	50A
Max Primary Current:	60A
Secondary Current:	4V
Current Type:	DC or AC
Accuracy:	1.0%
Meansurement Range:	0-500A
Color:	Black
Manufacturer:	Jiaxing Haihan Electron Co.,Ltd
Application:	Lighting
Type:	Current Transformer
Phase:	Three

Jiaxing Haihan Electronic Co., Ltd was established in 2011, We are a professional in designing and manufacturing electricity energy meter accessory and hotel supply.

Mainly electricity meter accessory including: Current transformer, stepper motor counter, Manganin shunt, magnetic latching relay, electricity energy meter case, DIN-Rail Watt-hour meter and precision components, Hotel utensil including: Hotel minibar, safe box and wine cooler.

Outstanding employees, advanced technology, superior equipment, and strict management are pivotal to a company's development and to win customers' trust on its products. "Accurate, reliable, and professional" is our belief in producing and servicing.

Since the establishment, It has been absorbing the advanced technology at home and abroad. At the same time we are also learning experience from the whole electronic industry, so we are producing products with precision, stability, reliability leading in Chinese market. With the advanced technology, excellent quality, perfect service, our products are selling through all around the world.

Jiaxing Haihan Electron Co., Ltd provides professional pre-sale, sale, after sale service which has won our customers' trusts and praises from domestics and overseas. We are focusing on the innovation of technology, the quality of management, and the improvement of services in different levels to achieve our development.

We are actively involved in activities of promoting and exchanging. During the long-term development the company will perfect the quality and performance of products, the technology, and establish long-term friendly cooperation relationship with companies from all around the world. We sincerely welcome all customers at home and abroad to visit our company and exchange the technology.
