Hall Proximity Switch Sensor 5~30VDC NPN PNP
| Price: |
US $ 0.1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
JK8020D |
| Working Distance: |
8~11mm |
| Supply Voltage: |
DC5~30V |
| Positioning Accuracy: |
0.02mm |
| Load Current: |
200mA |
| Response Frequency: |
50kHz |
| Working Temperature: |
-40c~+125c |
| Output Mode: |
NPN/PNP |
| Optional Working Status: |
No/Nc/Self - Locking Type |
| Principle: |
Hall |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Hall Proximity Switch |
| Wires: |
NPN/PNP |
| Application: |
Chemical Industry |
Product Description

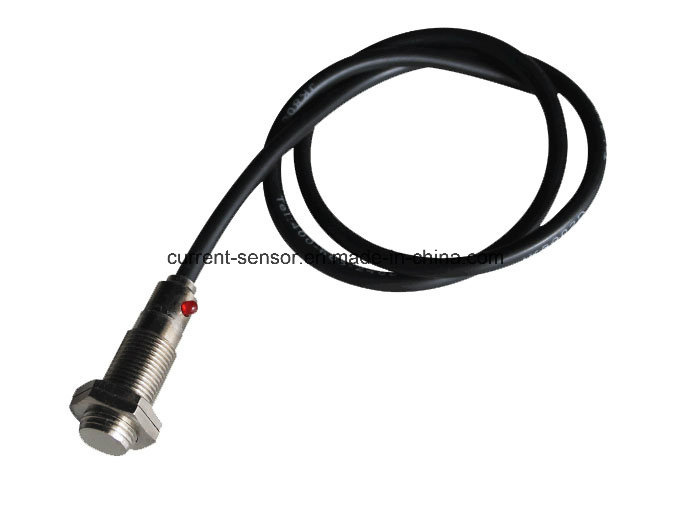

| Hall Proximity Sensor:H-JK/JB/JZ----C Series |
Introduction- Principle:H-JK series hall proximity switch is a new type of automatic switching device based on the principle of hall effect.
- This product adopts the round tube shaped waterproof design,
- Application: It reaches IEC144 standard and widely used in light industry, chemical industry, textile, printing, machinery, metallurgy, telecommunications, transportation, automatic control, computer and other fields.
- It is divided into three categories according to the working state :
JK - Normal open type(NO),
JB - Normal closed type(NC),
JZ - self - lock type. | Features:- High response frequency, strong anti-interference ability
- High precision - repeat positioning.
- Multi-function for protection with working status indicator.
- Can be directly interface with the programming controller (PLC).
- High reliability, long lifespan.
|
| Case Type | Model | Supply Voltage (DC:V) | Working Distance(mm) | Positioning Accuracy (mm) | Response Frequency | Working Temperature | Output Mode |
M6  | JK5002C | DC5-24 | 5-7 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN |
| JK8002C | DC5-24 | 8-11 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN |
M8 | JK5002C | DC5-24 | 5-7 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8002C | DC5-24 | 8-11 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
M10 | JK5002C | DC5-24 | 5-7 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8002C | DC5-24 | 8-11 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
M12 | JK5002C | DC5-24 | 5-7 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8002C | DC5-24 | 8-11 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| Hall Proximity Sensor:H-JK/JB/JZ----D Series |
 M12 | JK5002D | DC5-30 | 5-7 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8002D | DC5-30 | 8-11 | 0.02 | 100KHz | -40~+125; -25~+85 | NPN/PNP |
| JK5020D | DC5-30 | 5-7 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8020D | DC5-30 | 8-11 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |
| JK5050D | DC5-30 | 5-7 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8050D | DC5-30 | 8-11 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |
| JK5100D | DC5-30 | 5-7 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |
| JK8100D | DC5-30 | 8-11 | 0.02 | 50KHz | -40~+125; -25~+85 | NPN/PNP |

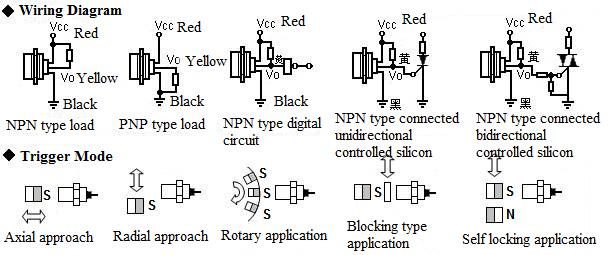

Connection mode:
M6 M10 Red: power supply (Vcc); Blue: output (VOUT); Black: Ground (GND).
M8 M12 M18 Red: power supply (Vcc); Yellow: output (VOUT); Black: Ground (GND).
1)The supporting magnet steel adopts the S surface of Φ8×4 Ndfeb magnets(surface magnetic induction intensity is 0.3T) ;other magnet is also available, but the working distance will change.
2) Series of JK/JB/JZ are using three-core sheath cable with length of 50cm. If there isn't clear requirement for the output polarity,please refer to the way of NPN.
3) Working Temperature(ºC): : -40~+125; : -25~+85;
4)Both the configuration parameters and the cable length can be customized.
5)Please state the full part number on the order,such as JK8002C. |
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
