| Prod Model: |
HZJL |
| Production Process: |
Semiconductor Integrated |
| Sensitivity: |
High |
| Sensitivity Level: |
7 |
| Life Time Of Probe: |
20 Hours |
| Work Temperature: |
0ºC-52ºC |
| Power Supply: |
3V DC, 2 "C" Alkaline Batteries |
| Working Method: |
Continuous, No Restriction |
| Probe Length: |
35.5cm |
| Responsive Time: |
Instantaneous |
| Reset Time: |
1 Second |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Type: |
Electrochemical Gas Sensor |
Product Description
I. Product Introduction:
The instrument is the essence of 30 years production experience of leakage detector, and the new generation fully automatic intelligent detector is the most stable and sensitive leakage detector.
The high-tech central microprocessor is the core of this product, and its digital signal processing capability can well manage the circuit and process the detection signal. Due to adopt large number of integrated circuits, make the quantity of components in the circuit is 40% reduced, which greatly improves the reliability and efficiency. Microprocessors monitor the probe and battery voltages at speed 4,000 times per second, and very small signals can be captured and reliably and stably work in any environment.
The detector adds a few convenient functions: the seven-level sensitivity makes sensitivity increases 64 times, and the trichromatic secondary tube indicates the extent of the leak in a gradual manner. It is also used to display sensitivity level and battery power.Touch keyboard can perform all operations,fashion-forward slim shape design is very convenient to use and maintain.It is very convenient for the indicator light to be directly in the eye range in use.
II.Main Features:
1. Adopt microprocessor with advanced digital signal processing ability to control.
2. Tricolor video display.
3. Seven gears sensitivity setting, max 64 times to strength.
4. Light touch keyboard.
5. The sensitivity is adjustable at any time.
6. Automatic battery test function.
7. Battery voltage indication.
8. Pass SAEJ1627 certification, can detect R134a,R12,R22.
9. Can detect all halogen refrigerants.
10. Get samples by real mechanical pump to provide forward flow for the probe.
11. With gradual change function.
12. Wireless and portable, only two batteries are required.
13. High strength instrument box, reliable protective equipment.
14. 35 cm flexible stainless steel probe.
III. Main parameters:
Power Supply: 3v DC, 2 "C" alkaline batteries
Max Sensitivity: R12,R22,R134a has passed certificate (14g/year)
Limit Sensitivity:For halogen refrigerant, less than 3g/year
Life time of probe: About 20 hours.
Work Temperature: 0ºC-52ºC
Life Time of battery: about 30 hours under normally use condition
Working Method: Continuous, no restriction
Responsive Time: Instantaneous
Reset Time: 1 Second
Preheat Time: About 2 seconds
Weight: 560g
Dimension: 22.9cm*6.5cm*6.5cm
Probe Length: 35.5cm

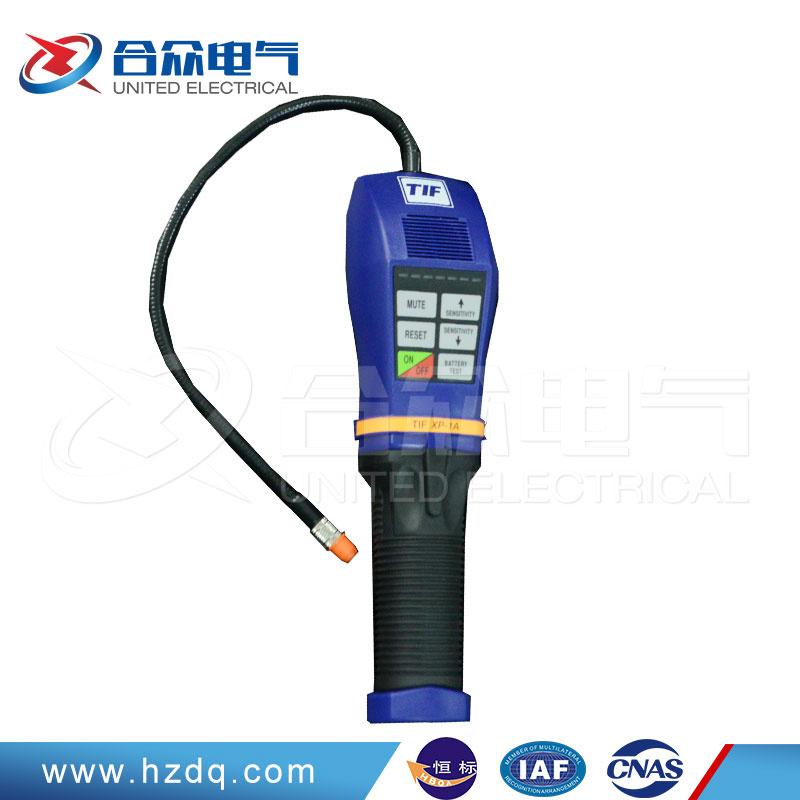

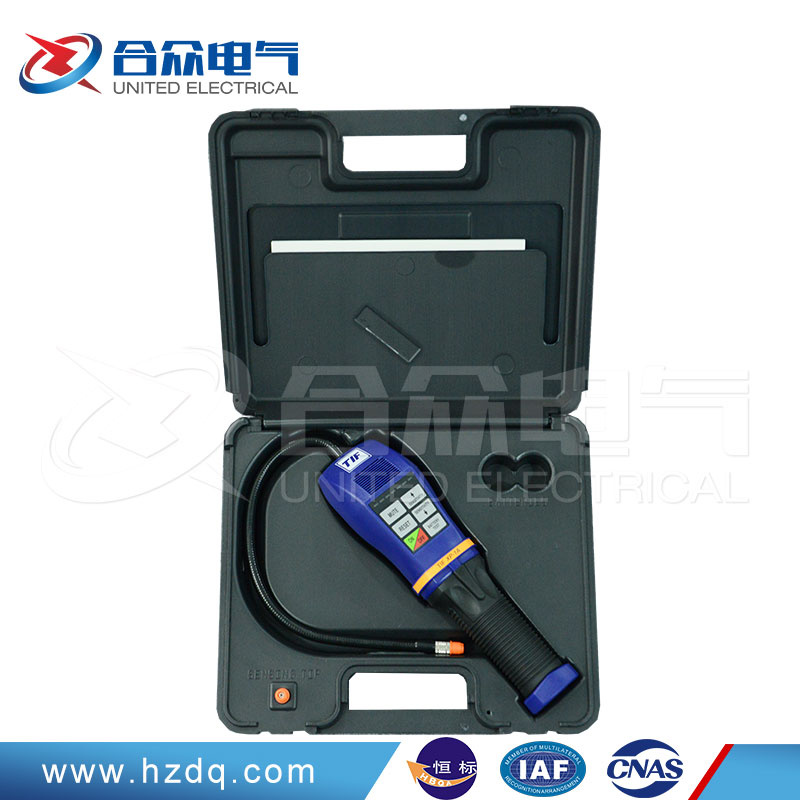

IV. Product detail picture:
V. Company Information:
Wuhan Hezhong Electrical Equipment Manufacture Co., Ltd founded in 2002, reorganized by electrical test equipment factory of former Wuhan high voltage research institute, is a high quality equipment supplier of China State Grid. After years of continuous innovation has become as a professional production and sale electric power testing, test equipment of high-tech enterprise integrates the ability to scientific research, development, production and sales, service, with kinds of patents, its core technology is in the same industry leading lever, and cooperates with the research institutes of Tsinghua University, Peking University and Chiao Tung University. Our sales and service are all over the country and exported to America and Europe, southeast Asia markets such as USA, Singapore and other overseas markets. 1.Electrical Technology, Security Experts: with 15-years experience in manufacture of Surge(lighting) Arrest(3Kv-36Kv gap, gap-less), Intelligent Contact Withstand Voltage Test Device, DC High Voltage Generator, Ultra-low Frequency Voltage Generator, Cable Fault Tester, Automatic Loop Resistance Tester, Intelligent Large Current Generator, Microcomputer Relay Protection Tester, DC Resistance Tester, Transformer Turns Ratio Tester, Insulation Oil Withstand Voltage Tester, High Voltage Switch Mechanical Characteristics Tester, Transformer Dielectric Loss Tester, Standard Voltage Divider, Intelligent Touch Insulated Boots (Gloves) Withstand Voltage Testing Device, Partial Discharge Test System, Transformer Comprehensive Test Table and other power test, test equipments.
2.Stable and reliable quality: manufacturing process is strictly complied with ISO 9001.
3.Payment terms: TT, L/C
4.High-efficiency production: samples delivery time is within 7 days, mass production leading time is 20-30 days, it also depends on your order quantity.
5.OEM service, can provide a complete set of solution for customer's different test requirements.
1. Electrical Technology, Security Experts: With 15-years experience in manufacture of Surge(lighting) Arrest(3Kv-36Kv gap, gap-less), Intelligent Contact Withstand Voltage Test Device, DC High Voltage Generator, Ultra-low Frequency Voltage Generator, Cable Fault Tester, Automatic Loop Resistance Tester, Intelligent Large Current Generator, Microcomputer Relay Protection Tester, DC Resistance Tester, Transformer Turns Ratio Tester, Insulation Oil Withstand Voltage Tester, High Voltage Switch Mechanical Characteristics Tester, Transformer Dielectric Loss Tester, Standard Voltage Divider, Intelligent Touch Insulated Boots (Gloves) Withstand Voltage Testing Device, Partial Discharge Test System, Transformer Comprehensive Test Table and other power test, test equipments.
2. Stable and reliable quality: Manufacturing process is strictly complied with ISO 9001.
3. Payment terms: TT, L/C
4. High-efficiency production: Samples delivery time is within 7 days, mass production leading time is 20-30 days, it also depends on your order quantity.
5. OEM service, can provide a complete set of solution for customer’ S different test requirements.
Wuhan United Electrical Equipment manufacturing Co., Ltd founded in 2002, reorganized by electrical test equipment factory of former Wuhan high voltage research institute, is a high quality equipment supplier of China State Grid. After years of continuous innovation has become as a professional production and sale electric power testing, test equipment of high-tech enterprise integrates the ability to scientific research, development, production and sales, service, with kinds of patents, its core technology is in the same industry leading lever, and cooperates with the research institutes of Tsinghua University, Peking University and Chiao Tung University. Our sales and service are all over the country and exported to America and Europe, southeast Asia markets such as USA, Singapore and other overseas markets.
We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
