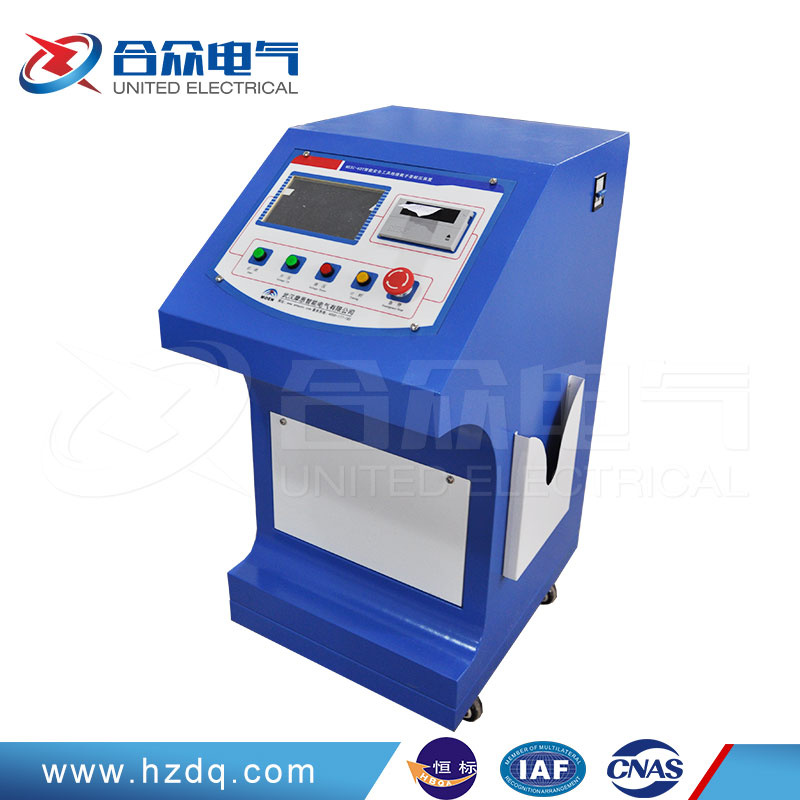

Newest Intelligent Touch Voltage Withstand Test Machine/ Transformer Test Device
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Features:This product is special lightweight insulation withstand voltage test device, adopts advanced microelectronic processing technology, all the process can be set up in advance, touch screen operation, all English interface, operation is simple and clear. All test items are automatically tested without manual intervention.It is a necessary equipment for power supply enterprises, large factories, metallurgy, power plants, railways and other power maintenance plants. Product Composition:- Smart controller HZTC-104D
3.Tested Transformer YDJ/YDQ/GYD
Oil Immersed(YDJ) SF6 Inflatable(YDQ) Epoxy Resin Dry(GYD) Product Main Parameter:
| 1 | Power Supply Voltage | AC 220V/380V |
| 2 | Capacity | 5KVA-500KVA |
| 3 | Output Voltage | 5KV-300KV |
| 4 | Voltage Accurancy | ±0.5 |
| 5 | Current Accurancy | ±0.5 |
| 6 | Display Method | 7 inch true color HD digital screen |
| 7 | Touch Method | Resistive touches are more precise |
| 8 | Operate Method | Automatic, manual |
| 9 | Data Storage | 60 groups |
| 10 | Password | Multilevel permission setting |
| 11 | Multilevel protection, use more secure |
| Input voltage protection | Input current protection | High voltage voltage protection |
| High voltage current protection | Overvoltage protection | High voltage flashover protection |
Our Information- Electrical Technology, Security Experts: with 15-years experience in manufacture of Surge(lighting) Arrest(3Kv-36Kv gap, gap-less), Intelligent Contact Withstand Voltage Test Device, DC High Voltage Generator, Ultra-low Frequency Voltage Generator, Cable Fault Tester, Automatic Loop Resistance Tester, Intelligent Large Current Generator, Microcomputer Relay Protection Tester, DC Resistance Tester, Transformer Turns Ratio Tester, Insulation Oil Withstand Voltage Tester, High Voltage Switch Mechanical Characteristics Tester, Transformer Dielectric Loss Tester, Standard Voltage Divider, Intelligent Touch Insulated Boots (Gloves) Withstand Voltage Testing Device, Partial Discharge Test System, Transformer Comprehensive Test Table and other power test, test equipments.
- Stable and reliable quality: manufacturing process is strictly complied with ISO 9001.
- Payment terms: TT, L/C
- High-efficiency production: samples delivery time is within 7 days, mass production leading time is 20-30 days, it also depends on your order quantity.
- OEM service, can provide a complete set of solution for customer's different test requirements.
Wuhan United Electrical Equipment manufacturing Co., Ltd founded in 2002, reorganized by electrical test equipment factory of former Wuhan high voltage research institute, is a high quality equipment supplier of China State Grid. After years of continuous innovation has become as a professional production and sale electric power testing, test equipment of high-tech enterprise integrates the ability to scientific research, development, production and sales, service, with kinds of patents, its core technology is in the same industry leading lever, and cooperates with the research institutes of Tsinghua University, Peking University and Chiao Tung University. Our sales and service are all over the country and exported to America and Europe, southeast Asia markets such as USA, Singapore and other overseas markets.
| Prod Model: |
ZGF |
| Capacity: |
5kVA—500kVA |
| Output Voltage: |
5kv-300kv |
| Voltage Accuracy: |
±0.5 |
| Current Accuracy: |
±0.5 |
| Data Storage: |
60 Groups |
| Language: |
Can Be Customized |
| Application: |
Instrument |
| Phase: |
Three |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Dry-type Transformer |
1. Electrical Technology, Security Experts: With 15-years experience in manufacture of Surge(lighting) Arrest(3Kv-36Kv gap, gap-less), Intelligent Contact Withstand Voltage Test Device, DC High Voltage Generator, Ultra-low Frequency Voltage Generator, Cable Fault Tester, Automatic Loop Resistance Tester, Intelligent Large Current Generator, Microcomputer Relay Protection Tester, DC Resistance Tester, Transformer Turns Ratio Tester, Insulation Oil Withstand Voltage Tester, High Voltage Switch Mechanical Characteristics Tester, Transformer Dielectric Loss Tester, Standard Voltage Divider, Intelligent Touch Insulated Boots (Gloves) Withstand Voltage Testing Device, Partial Discharge Test System, Transformer Comprehensive Test Table and other power test, test equipments.
2. Stable and reliable quality: Manufacturing process is strictly complied with ISO 9001.
3. Payment terms: TT, L/C
4. High-efficiency production: Samples delivery time is within 7 days, mass production leading time is 20-30 days, it also depends on your order quantity.
5. OEM service, can provide a complete set of solution for customer’ S different test requirements.
Wuhan United Electrical Equipment manufacturing Co., Ltd founded in 2002, reorganized by electrical test equipment factory of former Wuhan high voltage research institute, is a high quality equipment supplier of China State Grid. After years of continuous innovation has become as a professional production and sale electric power testing, test equipment of high-tech enterprise integrates the ability to scientific research, development, production and sales, service, with kinds of patents, its core technology is in the same industry leading lever, and cooperates with the research institutes of Tsinghua University, Peking University and Chiao Tung University. Our sales and service are all over the country and exported to America and Europe, southeast Asia markets such as USA, Singapore and other overseas markets.
We supply different kinds of products with high quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
