Handheld Data Controller for GPS System Windows Mobile

Name: Handheld Data Controller for GPS System Windows Mobile
Brand: all-electronics-online.com
SKU: 828330175
Availability: InStock
Rating: 4.6 (106 reviews)

Price:	US $ 3950-11500/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

The Most Advanced Intelligent
Full Function High Precision RTK GNSS Receiver

The G10 brings you with technology revolution of the GNSS RTK measurement. Ingenious shell of magnesium alloy, loading with brandnew RTK Intelligent Control Platform, equipped with Electronic Bubble, Tilt Sensor Correction, Web User Interface (UI). Besides, it provides you a brand-new measurement management concept based on iCloud platform.It delivers you with a new RTK Measurement Experience.

Technical Specifications:

MODEL	G10
Tracking Capability
Number of Channels	220 Channels
Trached Signals	GPS: L1C/A, L1C, L2C, L2E, L5 GLONASS: L1C/A, L1P, L2C/A, L2P, L3 BDS: B1, B2
Trached Signals	Galileo: E1, E5A, E5B SBAS: WAAS, ENGOS, GAGAN, MSAS, QZSS
Positioning Accuracy
Code differential GNSS positioning (DGPS)	Horizontal: ± 0.25 m + 1 ppm RMS Vertical: ± 0.50 m + 1 ppm RMS
Code differential GNSS positioning (DGPS)	SBAS differential positioning accuracy: Typically < 5 m
Static GNSS surveying	Horizontal: ± 2.5 mm + 0.5 ppm RMS Vertical: ± 5.0 mm + 0.5 ppm RMS
Real Time Kinematic surveying (RTK)	Single Baseline < 30km: Horizontal: ± 8 mm + 1 ppm RMS Vertical: ± 15 mm + 1 ppm RMS
	Network RTK: Horizontal: ± 8 mm + 0.5 ppm RMS Vertical: ± 5 mm + 0.5 ppm RMS
	Initialization time: Typically < 8 seconds Initialization reliability: Typically > 99.9%
	Tilt survey (2m GPS pole): 10degree to 30 degree: 10mm to 30mm
Hardware Physical
Size (W × H)	14.1cm × 14cm
Weight	1.45kg with battery
Material	Magnesium alloy shell
Temperature	Operating Temperature: -30ºC ~ +65ºC Storage Temperature: -40ºC ~ +75ºC
Humidity	100%, condensing
Dust/Water Protection	IP67 at closing all connector caps. Protected agaist temporary immersion up to 1m depth.
Shock and vibration	Designed to survive a 2m natural fall onto concrete
Electrical
Power	9 to 22V DC external power input with over-voltage protection
Rechargeable	Removable 11.1V, 3.4Ah Lithium-ion smart battery with LED status indicators
Input voltage	100 to 240V AC (50/60Hz)
Power consumption	6.2W in RTK rover mode with internal radio
Operating times on single battery	Static mode: 12 hours UHF receive only option: 8 hours
	UHF receive/transmit option (2.0W): 4.3 hours
	WCDMA/GPRS receive option: 6 hours
Operation system
Button	Double buttons and visual operation interface
LCD	1.2inch HD OLED screen, 128 × 64 dpi sunlight readable
Voice	iVoice intelligent voice technology provides status and operation voice promptly
Communications and Data Storage
Internal Radio	Frequency: 410 ~ 470MHz Working range: 3 ~ 5km
Internal Radio	Transmitting power: 0.5W/2W adjustable

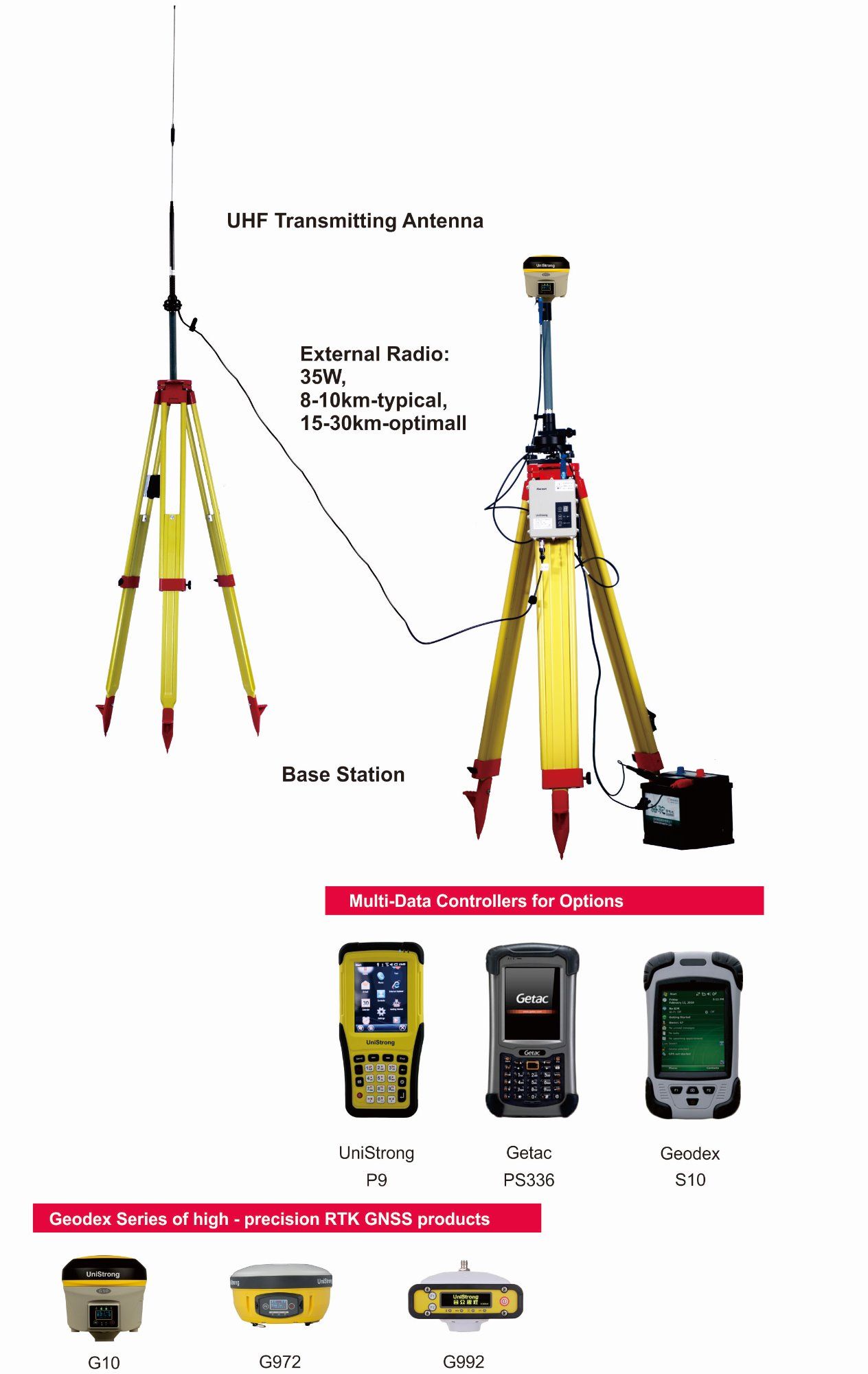

External Radio	Frequency: 410 ~ 470MHz Working range: 8 ~ 30km
External Radio	Transmitting power: 5W/35W adjustable
Cellular	WCDMA3.5G, GPRS/EDGE (option CDMA2000/EVDO 3G)
Bluetooth	Bluetooth2.1 + EDR/Bluetooth 4.0 BLE
Wi-Fi	802.11 b/g/n, accress point mode
Data storage	Internal Memory: 4GB External Memory: Micro SD card (Max.32GB)
Data Formats	1Hz positioning output, up to 20Hz
	CMR, CMR+, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2
	MSM input and output
Web UI	Offers simple configuration, operation, status, and data transfer
Web UI	Accessible via Wi-Fi, Serial, USB, and Bluetooth

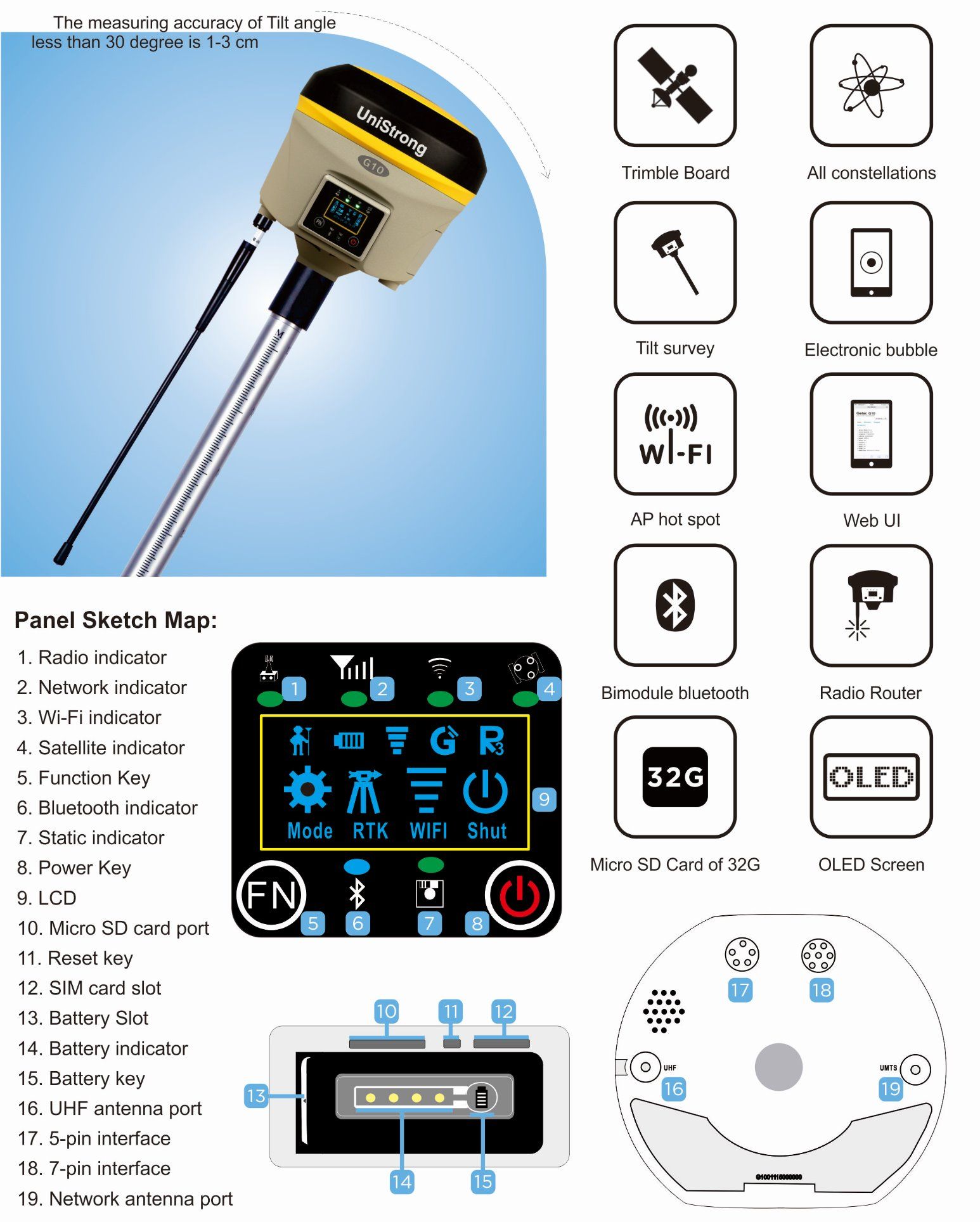

I/O port
GPRS antenna connector/UHF antenna connector DC power input (5-pin)/RS232 and USB port (7-pin) SIM card slot/1 X Micro SD slot
Tilt Survey System
Built in tilt compensator, correcting coordinates automatically according to the tilt direction and angle of the centering rod
Electronic Bubble
Controller software display electronic bubble, checking leveling status of the centering rod real time
Data cloud service
Web page cloud service management platform, supporting online register etc.

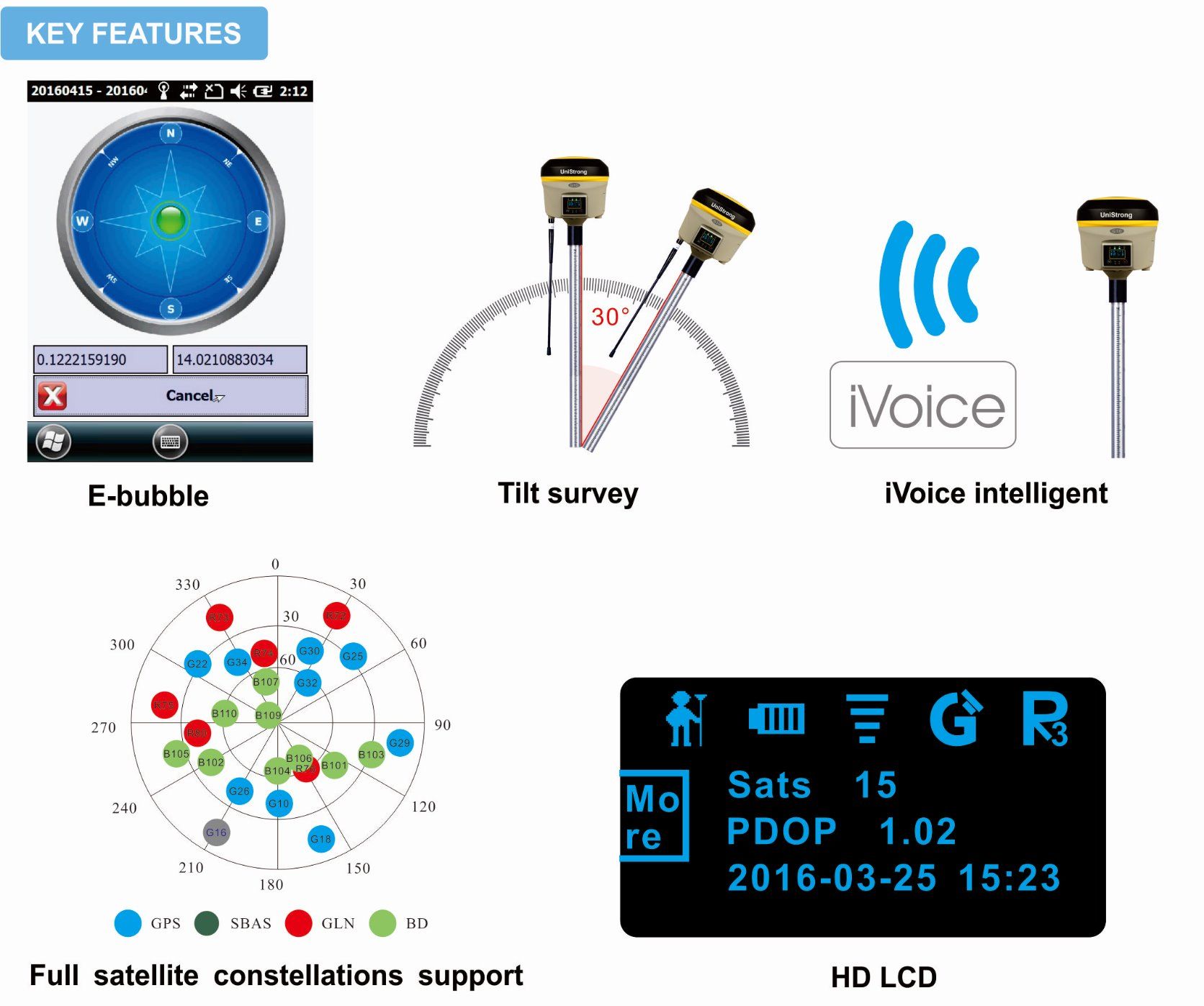

Function Features:

E-bubble:
      The internal Electronic bubble sensor can display the survey status of the receiver on the controller in real time. You don't even need a leveling bubble on the pole anymore.

Tilt survey:
     The internal Tilt sensor helps to survey without leveling the receiver, in order to improve survey efficiency. Tilt angle is allowed up to 30 degree. Bulit-in tilt compensator corrects the coordinates according to the direction and tilt angle.

iVoice intelligent:
    iVoice intelligent voice technology provides status and operation voice promptly, and supports multiple languages.

Full satellite constellations support:
    Equipped with most advanced GNSS boards,G10 system can track most signals from all kinds of running satellite constellation, especially support B1, B2 singnal from Beidou, also is able to get position result only with Beidou singnal.

HD LCD:
      1.2 inch HD OLED colorful LCD supporting multiple language display and it is suitable fo field work with high brightness and low power consumption.

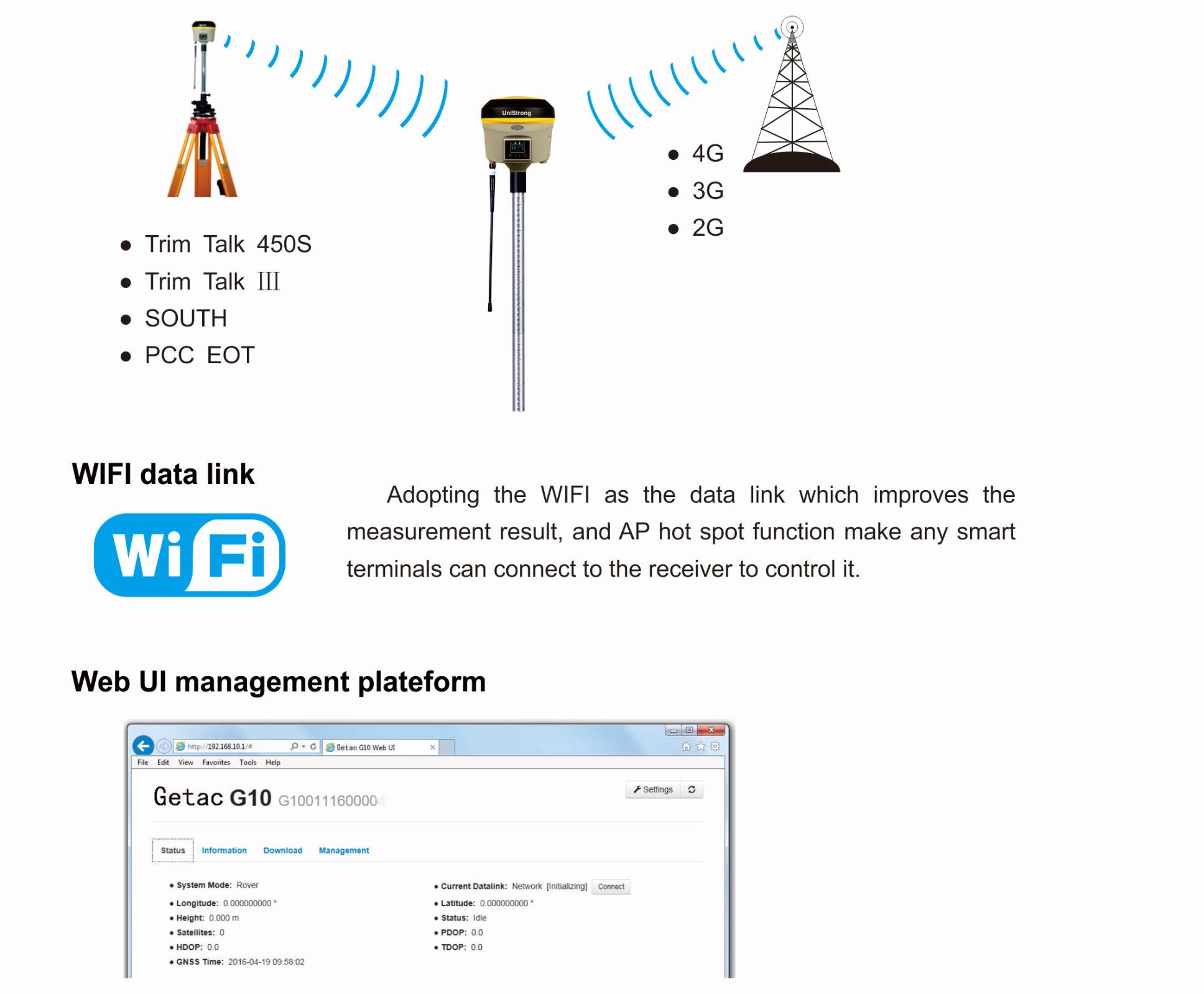

Intelligent data communication Internal radio:
      Internal radio module is compatible with current radio protocols in the market, also support all kinds of network types to access CORS seamlessly.

Network:
      Adopting new network program frame, it supports all kinds of network types to access CORS seamlessly 3.5G high speed network and is extendable to 4G.

      The internal Web UI management platform of G10 supports WIFI mode connection. Users can monitor the receiver status and configure it via the internal Web UI management platform.

Stronger:
      Magnesium alloy materials create an extremely rugged, compact and light machine body for G10. The anti impact ability, shock absorbing ability and beat dissipation ability are greatly improved.

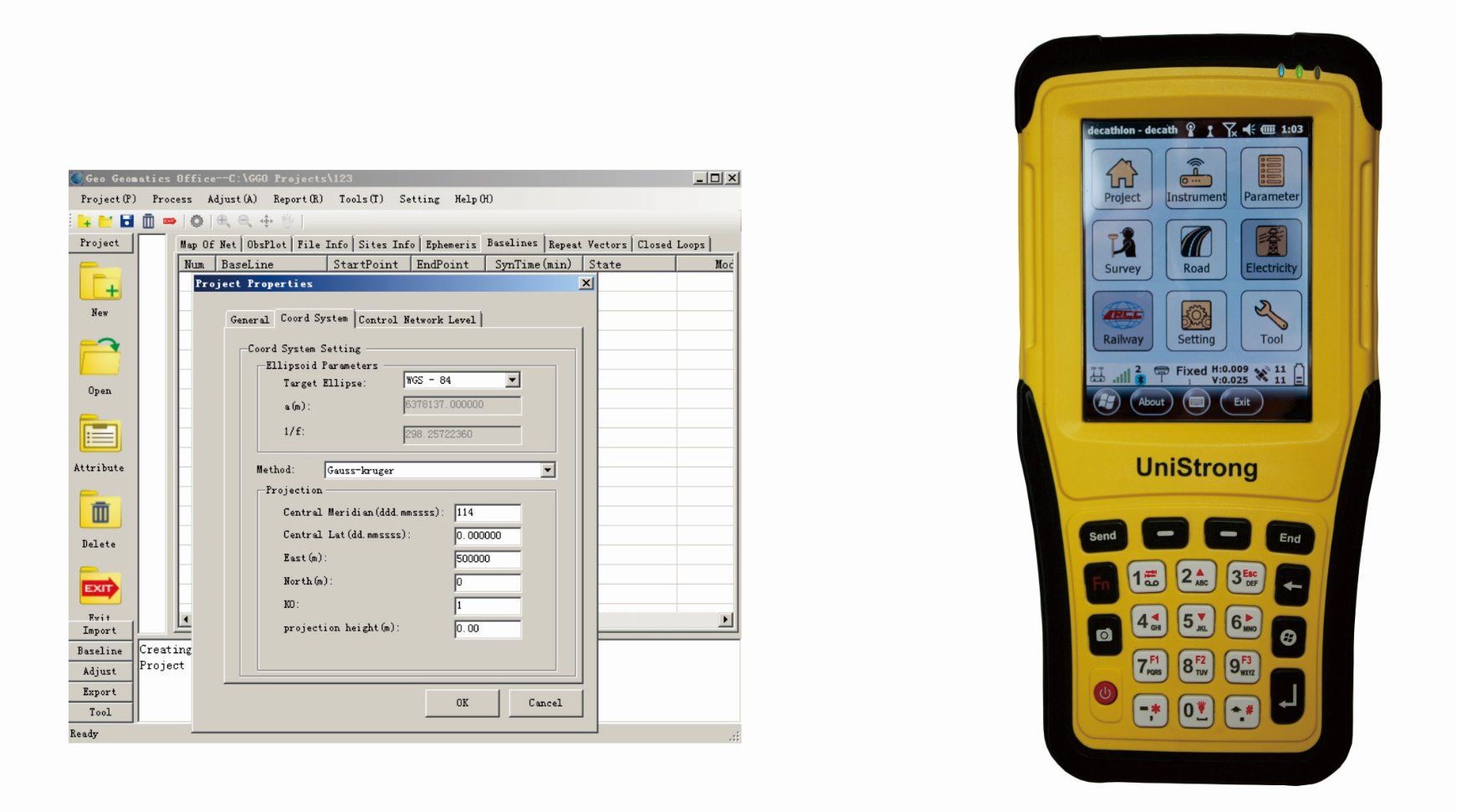

E-Survey Software

Professional,intuitive and efficient

        This E-Survey RTK data controller Field Software is designed & developped by the most professional software R&D engineers team, which brings you a professional, intuitive and efficient measurement of the new experience. The E-Survey software integrates construction survey, power survey, GIS data collecting in one unit. This software is compatible both with Windows Mobile and Android platform, it also supports the smart phone to be used as data controller.

1. Power Survey
    Line selection, cross measurement, 4-D Data Format output.

2. Road survey
    Road design, Middle Side Stake Layout, Cross section survey.

3. Base Map Loading
    Support vector data loading such as DXF, SHP and GCP.

4. GIS collection
    Support Attribute Data Collecting by Self-Defined data dictionary and export GIS exchange format.

5. Post Processing Software GGO
    Support to convert the data format into RINEX, which is compatible with AutoCAD and other Drawing & Mapping Software.

Prod Model:	P9
Tracked Signals:	GPS/Glonass/Galileo/Bds/Sbas
Static Accuracy:	H:2.5mm+0.5ppm;V:5mm+0.5ppm
Dgps:	Plane: 0.25m + 1ppm; Elevation: 0.5m + 1ppm
Rtk Accuracy:	Plane: 8mm + 1ppm; Elevation: 15mm + 1ppm
Intelligent Function:	Tilt Survey, E-Bubble, Voice Guidance
OLED Screen:	1.2inch HD OLED Screen, 128*64dpi
Radio Power:	Internal :2W / External :35W
Wireless Connection:	Bluetooth, WiFi
Network Communication:	WCDMA, Support HSDPA+. GPRS, GSM(CDMA EVDO)
Differential Format:	Cmr. Cmr+. Rtcm23. Rtcm3. X
