HDMI Connector
| Price: |
US $ 0.18-0.2/Piece |
| Min Order: |
20000/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |

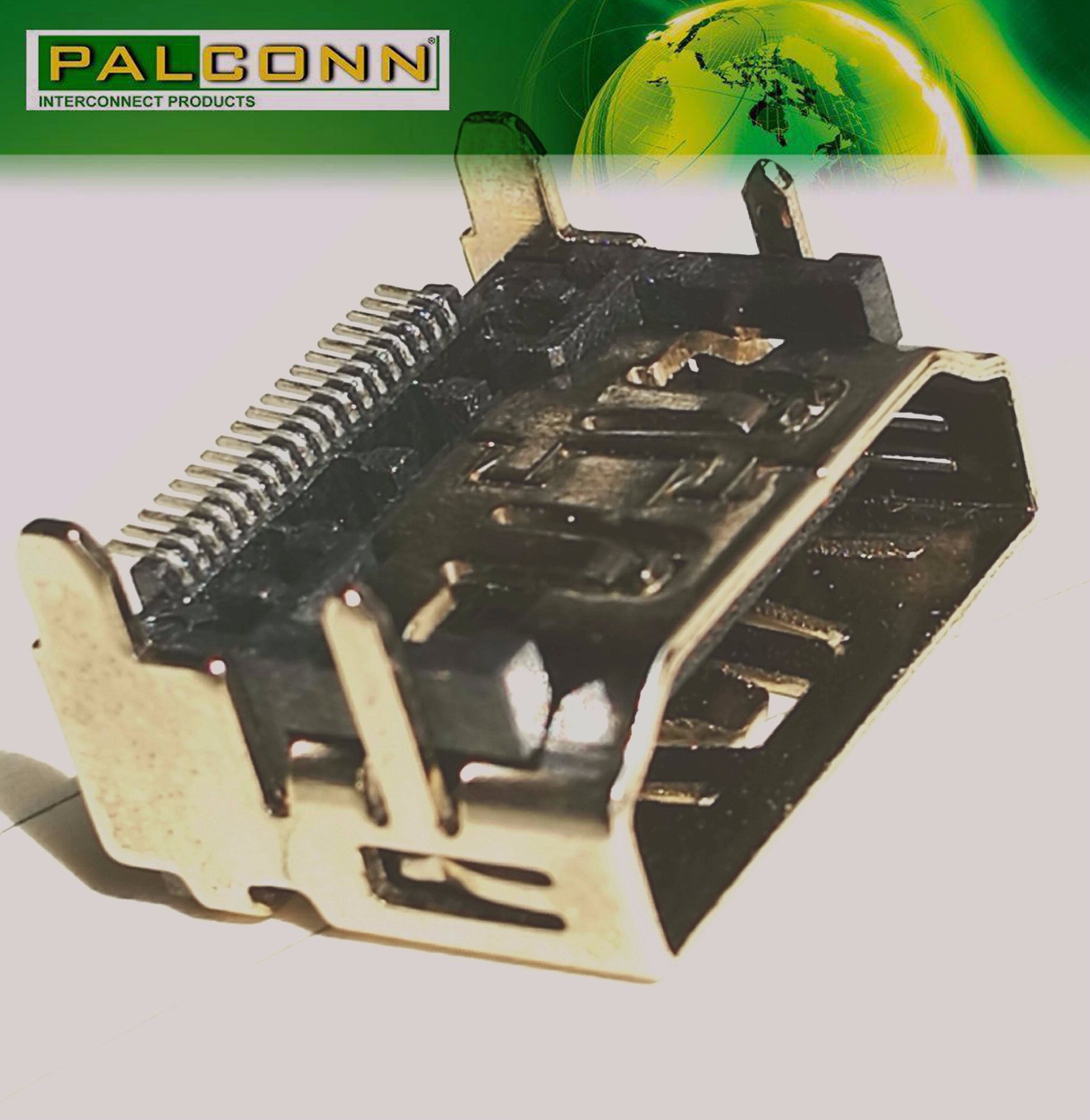

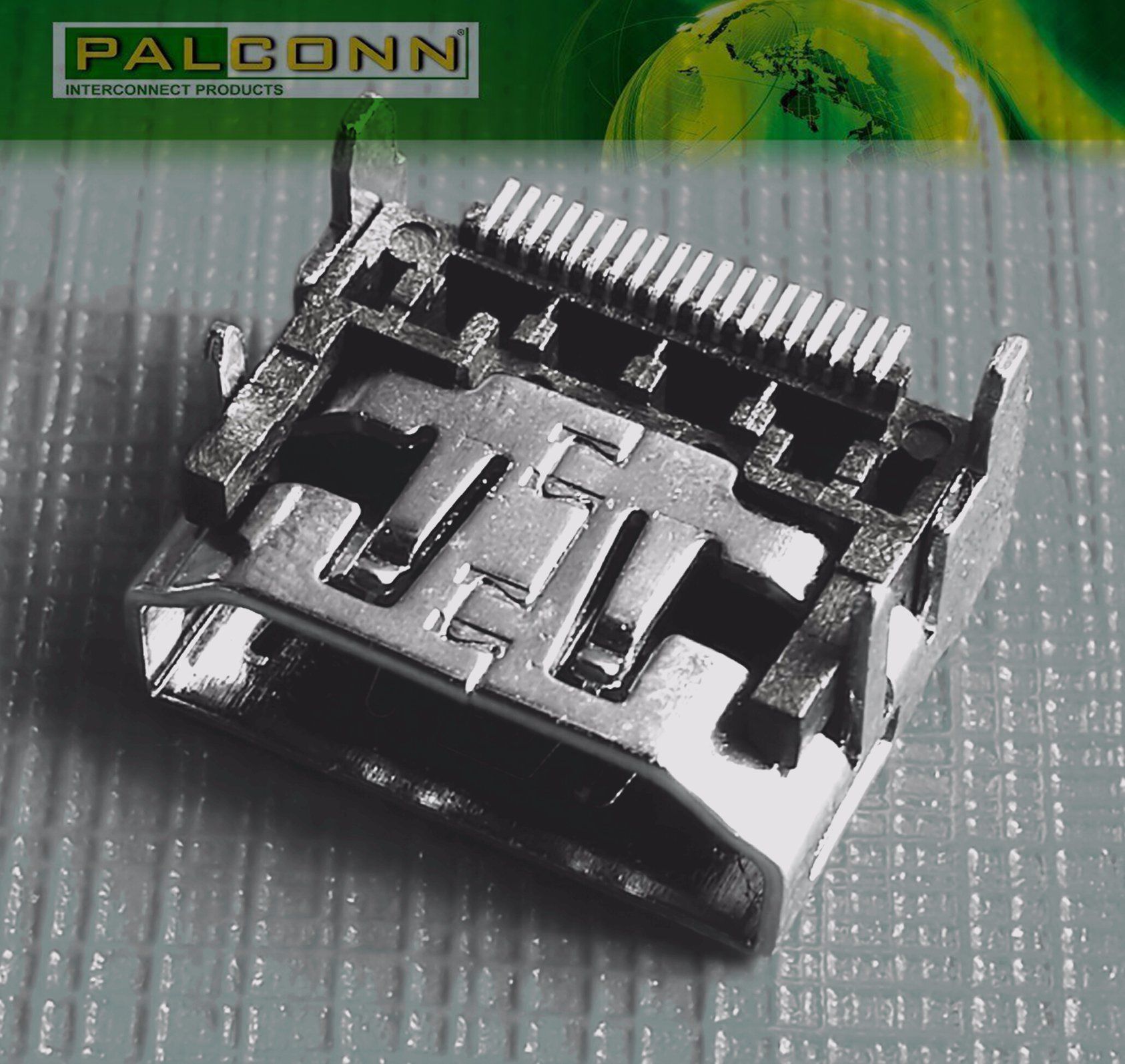

HDMI 19pin Famale connector . Supports start high-speed transmission.Material:Housing: Thermoplastic UL94-0 Color: Black.
Outer Shell: Brass, T=0.50mm
Terminal: Photoshop Bronze, T=0.22mm
Contact plating: Nickel underplating over all, gold plating at contact area, Tin at soldering area.
Shell plating: Nickel plating over all
Terminal solder-tail coplanrity 0.10mm max.
Contact: Gold flash plated in contact area 80U" min tin Plated in solder area 30U" min nickel underplated over all
Shell: 50U" min nickel plated overallSpecification:Current rating: 0.5AMPS
Voltage rating: 40V AC (rms)
Contact resistance: 30m ohms max.
Withstand Voltage: 500V AC for 1 minute
Insulation resistance: 100M ohms min.
Work Temperature:-25ºC~+85ºC
Resistance to soldering to sodering heat: 265° C for 5 seconds and only wave soldering processHALOGEN FREE / ROHS / TAPE PACKING
Application: TV/STB/DVD/HDTV/PC/Automobile Data Recorder/Digital Camera/HUB/Certification:ISO9001:2008 / ISO 14001:2004 / OHSAS18001 / TS16949:2009

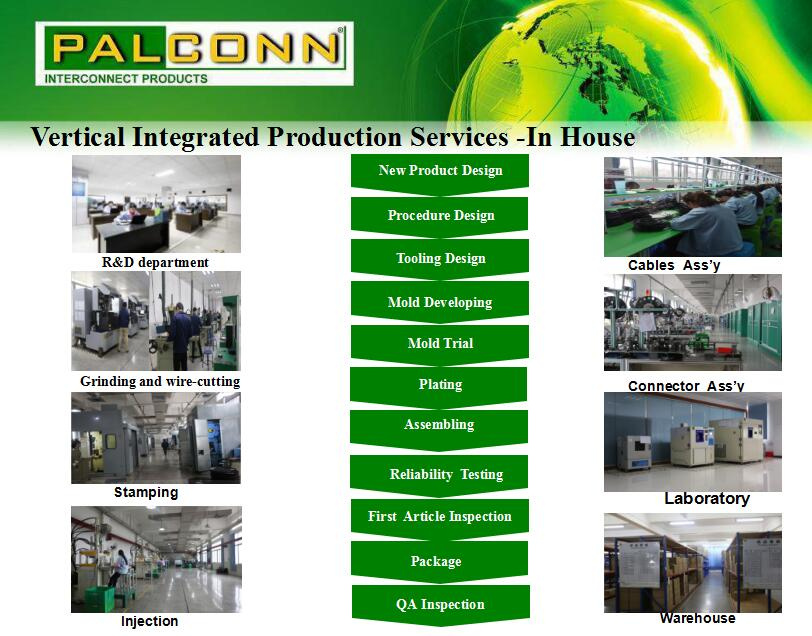

Manufacturing:| connector | In house |
| teiminal | In house |
| Tooling | In house |
| Injection | In house |
| PCB | Out |
| SMT | Out |
| Soldering | In house |
| Cable | In house |
| Assembly | In house |
| Capacity | Connectors:300KK/M |
Major customers:
Samsung,Western Digital, ECHOSTAR, PCT INTERNATIONAL, LEXMARK,ARRIS, XIAOMI, LUXSHARE,GoerTek,Foxconn, SHARP,ORIOM,Skyworth etc.PalConn Technology OverviewCompany Found 2003
1400+ Employees.
PT is a leading global integrated interconnect
components provider of :
-- Mobile Phone , IT, Consumer, Medical, Automotive Industrial, Customer made, etc.

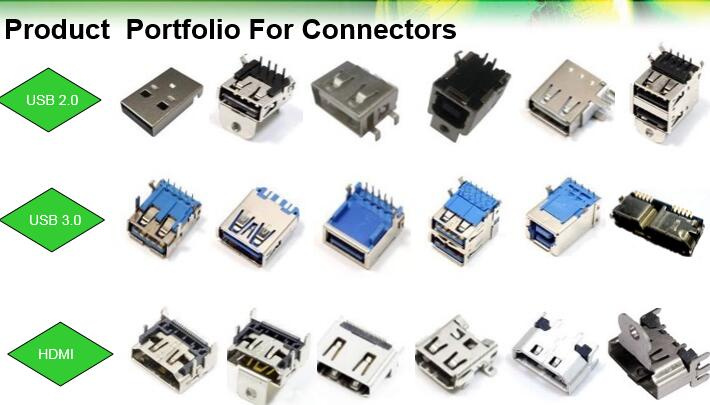

USB 2.0&3.0&3.1 Type C, RJ11&45, SATA, HDMI, Audio Jacks, DC Jacks, Battery, SD Card, WTB, Metal part, HDMI Cables. USB 3.1 Cables, USB 2.0&3.0 Cable, RCA Cables, RJ Cables, PalConn Technology Milestones2003: Shenzhen Factory Founded.
2006: ISO 9001:2008 Certified.
2009: ISO 14001:2004 Certified.
2009: Taiwan sales Office Established.
2013: Guizhou Factory
2015: TS16949 Certified.
2016: ISO 13485 Certified.
| Prod Model: |
HDM-001-KK5-OR |
2003: Shenzhen Factory Founded.
• 2006: ISO 9001: 2008 Certified.
• 2009: ISO 14001: 2004 Certified.
• 2009: Taiwan sales Office Established.
• 2013: Guizhou Factory
• 2015: Moved to New ShenZhen Factory.
Components provider of:
-- Mobile Phone, Computer, LCD TV, Hard Disk,
Automobile, Consumer.
USB 2.0 & 3.0, SATA, HDMI, Audio Jacks, DC Jacks,
Battery, SD Card, WTB, Metal part, Cables
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments, Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
GuiZhou Factory
Cables Manufacture Plant
Occupied Area: 100, 000 Sq. FT.
Employees: 550
ShenZhen Factory
Headquarter(Sales, Design, Incoming&Shipments,
Connectors Manufacture Plant)
Occupied Area: 140, 000 Sq. FT.
Employees: 450
We have 40 USB connector, HDMI connector and audio connector of the invention patent.
Our company has lots of well-known customers. It owns experienced, high skillful, up-and-coming, and internationalized management team and high-quality staff. Relying on scientific management model, rich technical strength, and advanced manufacturing and testing equipment, the company is actively expanding markets both at home and abroad, and is catching up with industry leading enterprises. Meanwhile the comprehensive and complete production model from research and development, precision mould manufacturing, components stamping and injection, finished product assembly to final inspection enables us to preferably control product quality and provide customers with favorable price and best delivery date.
Our company adheres to management spirit of " Integrity, Innovation, Self-improvement, Responsibility" and has built up the modern enterprise management system. Meanwhile it obtained certificate of ISO9001 quality management system in 2006, LED in ERP operation management system in 2007, and passed ISO14001: 2004 environment system in 2009 and OHSA18000 in 2012. Furthermore, It is a member of USB and HDMI association.
In order to improve the competitiveness of products, in 2015, we achieved CHB 100% stake. CHB products: USB2.0, USB3.0, USB3.1 common mode inductance, and Palconn product application coincidence. Through the merger, we are able to provide customers with proven USB connector products and EMI complete solution. After the merger, will retain Palconn and CHB 2 brands. Unified sales management by Palconn.
Major customers:
Samsung, LG, WD(Western Digital), ECHOSTAR, MI, ARRIS, F5, PCT, LEXMARK, TIVO, FOXCONN, SHARP, ORION, GOER TEK, PHIHONG, SKYWORTH, TENPAO, SSK
