Heating Element Flexible Installing TUV Aluminum Heater for Refrigerator

Name: Heating Element Flexible Installing TUV Aluminum Heater for Refrigerator
Brand: all-electronics-online.com
SKU: 778479085
Availability: InStock
Rating: 4.7 (23 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

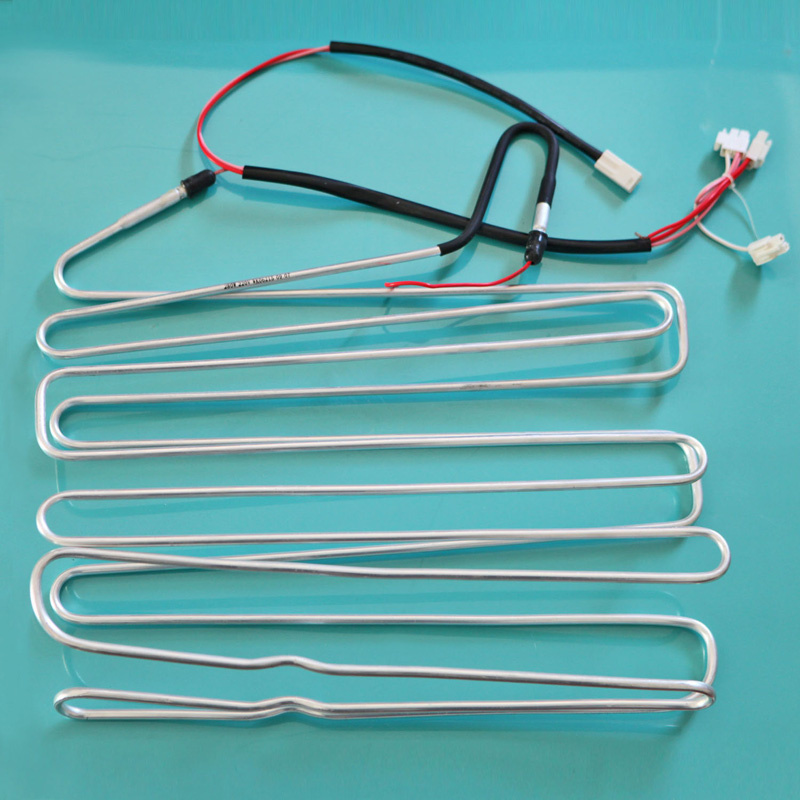

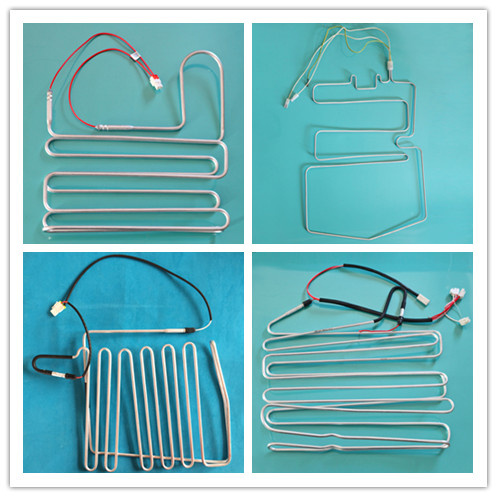

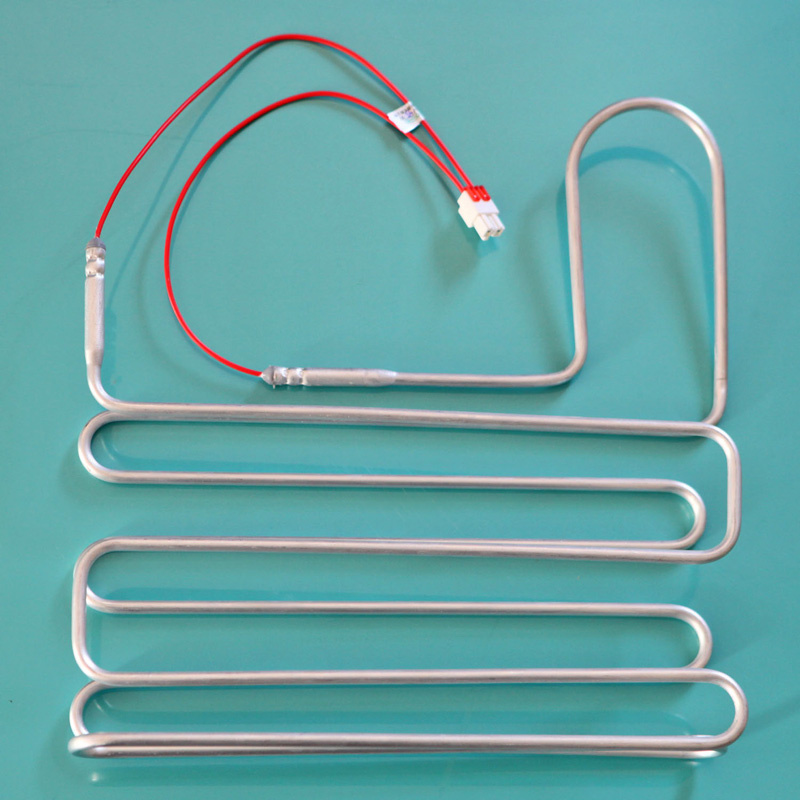

Heating Element Flexible Installing TUV Aluminum Heater for refrigerator

Product Structure:
Aluminum tube heating element uses aluminum pipe as heat carrier. Put heater wire component in aluminum tube to form different shape components.
Diameter of aluminum tube: Ø4,Ø4.5,Ø5,Ø6.35
Product Application:
It is widely used to defrosting and heat preservation for refrigerator and freezer as well as other electrical equipment. It's with rapid speed on heat and with equality, security, through thermostat, power density, insulation material, temperature switch , heat scatter conditions can be required on temperature, mainly for frost elimination in refrigerator, frozen elimination and other power heat appliance.
Technical Data Sheet:

		RLGV	RLGG
Electrical insulation		105ºCPVC	Silicon rubber
Dimension		Any dimension on request
Voltage		Any voltage on request
Output		Up to 15W/m		Up to 40W/m
Tolerances		≤±5% on resistance
Insulation resistance in normal temperature		≥100 MΩ
Dielectric strength in normal temperature		1800V 2S, No flashover and break down
Leakage current in working temperature		≤0.02 mA/m
Connect strength	≥36N 1min	≥36N 1min
	≥58.8N 1min	≥58.8N 1min

High quality stainless steel heater tube

Boiler electric heater elements

It is mainly used in water heating, boiler

Hot-water heater with fastening screw, it easy to instal

Voltage =220V

Max power =2500W

Product dimension: Non-standard could made as customer's demands.

This is one total length: 110mm to 120mm

Coil diameter: 80mm

Heating tube diameter: 10mm

Screw: M16*15 or 20mm

Distance between two screw: 50mm

The voltage also could be 380V max power is 4000W

Contact us
Louisa
Sales
Jiangyin PaWo Electronics Co., Ltd.
Add: No.98 Qingtong Road, Qingyang Town,
Jiangyin City, Jiangsu Province, China
homepage:http://www.pawochina.com/en/
Tel: 86-510-86102868
Fax: 86-510-86551425
Moble phone:008615335225310

Prod Model:	HDBV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Customized
Application Types:	Heating in Air or Water
Heating Element:	Resistive Wire
Application:	Mainly for Refrigerator and Freezer
Voltage:	Customized
Power:	Customized
Certificate:	UL, VDE
Protection:	Anti-Static
Installation:	Vertical
Housing:	Aluminum
