Hermetic Terminal for Refrigerator Air Conditioning Compressor Parts

Name: Hermetic Terminal for Refrigerator Air Conditioning Compressor Parts
Brand: all-electronics-online.com
SKU: 828638055
Availability: InStock
Rating: 4.7 (45 reviews)

Price:	US $ 0.58-0.65/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

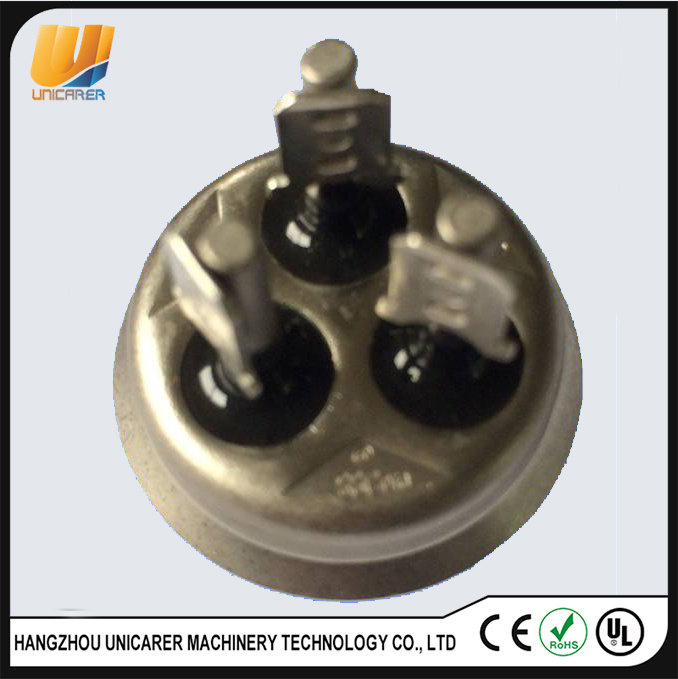

Hermetic terminal for Refrigerator air conditioning compressor parts

Product parameters

Item	Standard
Leadwire dia	∮2.3±0.05mm
Leadwire length	32.54±0.3mm
The interior height of leadwire	8.73±0.51mm
External dia of shell(1)	28.26±0.19mm
External dia of shell(1)	32.57±0.19mm
Shell thickness	1.75±0.13mm
Shell height	10.1±0.25mm
Leadwire gap	11.66±0.8mm
Surface	Bright,clean,no burr,rusty,no glass crack and bubble
Insulation resistance	DC500v,10000M
Electrical strength	0.5mA,AC3500V,1s
Max current	35A
Max temperature	Subzero 35ºC-125ºC
Airtightness	4.2MPa,1m,no leakage,no deformation,no crack,leadwire no drop
Hydraulic pressure	19.6MPa burst test,1min no leak test
Leadwire strength	Axial leadwire force 148N,1m,no crack,no leakage
Heat shock	Temperature 265ºC±5ºC,continue 10±1S
Weld strength	Torque force no less than 30kgf/cm2
Nickel thickness	2-4um
Package	100% inspection,500PCS/carton

Company Profile

Our company is focus on professional design and produce for the glass t o metal seal products, it is used the most advanced CO atmosphere sintering furnace in the world, the production range is related to all of the high or low temperature glass to metal seal products, the application range is from low current sensor 20amp to 900amp power connector, and the company also have enough technology level to design and produce according to the customer requirements. The company passed ISO9001, RoHS and UL certificate, it will ensure that the product a reliable sealing, insulation, resistance and mechanical pressure. At present, the company products are mainly used for the air conditioner, refrigerator compressor, new energy vehicle air compressor, commercial screw compressor of the air conditioner, sensor, Lithium battery cover, and LED bracket, it is widely used in commercial, aviation, aerospace, millitare and other fileds.

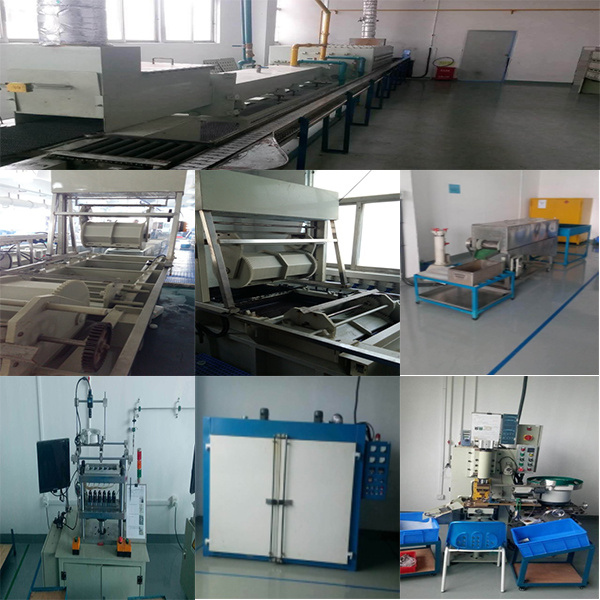

WORKSHOP/TEST

Application:	Compressor Parts
Environmental Protection:	Resistance to Environmental
Connection Mode:	Push-Pull Connection
Contact Termination Form:	Pressure Welding
Shape:	Irregular
Production Process:	Sintering
Brand:	Unicarer

Hangzhou Unicarer Machinery Technology Co., Ltd. is a subsidiary company of Fuyang Kehong Machinery Co., Ltd. We specialize in manufacturing: Precision CNC machining parts, hardware components, standard and non- standard parts, general machinery and photovoltaic components ect. We provide the complete machining-service: Turning, milling, drilling, grinding, boring, bending, stamping, welding, surface treatment, laser machining, wire EDM, and other CNC machining fabricating according to samples or drawings from customers.

We have the main equipments over 20 units: Vertical machining centers-6 sets, Horizontal machining center-1 set, CNC lathes-4 sets, , plain milling machine, plain Lathe, Surface grinder and others. Our testing equipments: Switzerland electronic digital display measuring grohe, Rockwell apparatus, micrometer, vernier caliper, etc.

"Excellence, Responsibility, Science"is the pursuit of our company. We have the united team with scientific technology and responsible attitude. It is the key base for making the excellent quality & service for you and achieving the win-win business.
