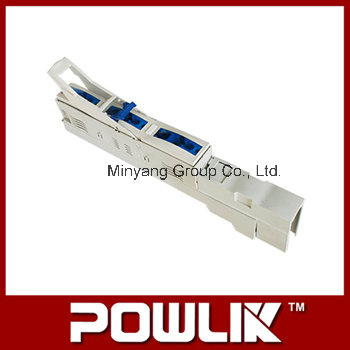

HG2B 160A-630A Fuse Switch Disconnector,Isolating Switch Fuse

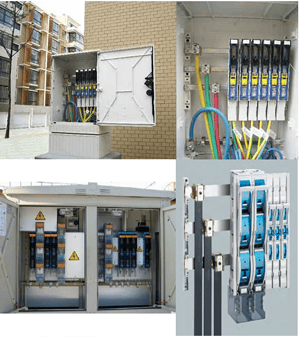

HG2B series bar and fuse type isolating switch is applicable in the circuit of rated voltage AC 660V and below, rated current AC160A-630A, rated frequency of 50Hz. In the power distribution system of industrial enterprises, it is mainly used in distributor circuit and motor circuit with high short-circuit current for infrequency manual making, breaking and disconnecting the power supply. However, it is not suitable for starting and breaking of single motor. This product is according with the standard of GB14048.3-2002, IEC60947-3.

1.Description

1) Integrating of current transformer and fuse switch initiated domestically.
2) With knife-edge entry and arc extinguishing equipment. it is safe for operation.
3) The isolating knife blade, full-range protection and semiconductor protection fusible core are optional.
4) Fuse wire monitor and signal switch can be additionally mounted; with self-closing fuse wire monitoring hole.
5) It can be used as primary switch, instaneous breaking capacity reaches 100kA.
6)Capacity of operating with load reaches 1.3 times of rated currrent.

2.Sepcification

Model	Assorted Fuse	Switch Rating Heat Current(A)	Rated Current(A)
HG2B-160A	NT100	160	4,6,10,16,20,25,32,35,40,50,63,80,100,125,160
HG2B-250A	NT1	250	80,100,125,160,200,224,250
HG2B-400A	NT2	400	125,160,200,224,250,300,315,355,400
HG2B-630A	NT3	630	315,335,400,425,500,630

Prod Model:	HG2B-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	160A-630A
Material:	PA66
Suit For:	Nt00,Nt1,Nt2,Nt3
Busbar Mounting:	100mm or 185mm
Breaking Capacity:	High
Type:	Resettable Fuse
Usaga:	Low Voltage
Standard:	IEC
