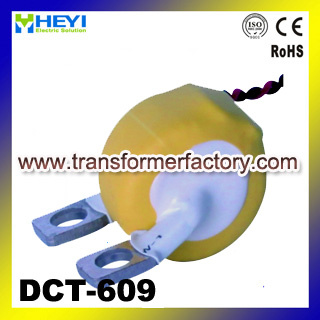

CT-609 mini current transformer
| Model | Specification | Rated Pr .Current | Max Current | Rated Sec Current | DC immune | Load Resistance | Accuracy Class |
| DCT-609 | 5(30)A / 2mA | 5A | 30A | 2mA | ≥22A | 25Ω | 0.1/0.2 |
| 10(40)A/ 4mA | 10A | 40A | 4mA | ≥28.5A | 20Ω | 0.1/0.2 |
| 10(60)A /4mA | 10A | 60A | 4mA | ≥43A | 12.5Ω | 0.1/0.2 |
Features :
Usage: Current,PCB/Power Station/KWH Meter/ Energy Meter
Plastic Casing Type Current Transformer , Plastic Casing Type CT :
Useage: Work in all kinds of electrical meter and metering fields.
Strength: 1. Good material, sampling resistance precision and stable.
2. Various type.
3. Good service: make according to customer requirement.
4. Good electrical performance
We can produce it according to customers' requirements.
| Product description: |
- Accurate DC measurement;
- Suitable for a wide range of current(from 1.5 to 100A);
- Linear output current, high precision;
- Compact, delicate appearance;
- Encapsulated with epoxy resin to ensure strong insulation ability.
DC Tolerance
- In normal condition,the power net is sinusoidal AC at loop, positive nd negative waves are
symmetry. But in some special Conditions, the circuit have DC, then positive and negative
waves will not be symmetry. Common current transformer would be saturation under
this condition, and the meter used this CT have large error, even can not work, so just DC
lmmunity CT can solve this problems.
- As following figure to test the DC error, 0.1 accuracy CT will be controlled within ±3.0%,0.2
accuracy class CT will be controlled within ±6.0%. |
Product
Description: |
Small volume, high accuracy, easy installation,
by ABS and copper material, epoxy resin composition,
the alloy technology, high magnetic induction intensity,
professional supporting services in the electricity energy meter |
Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances
