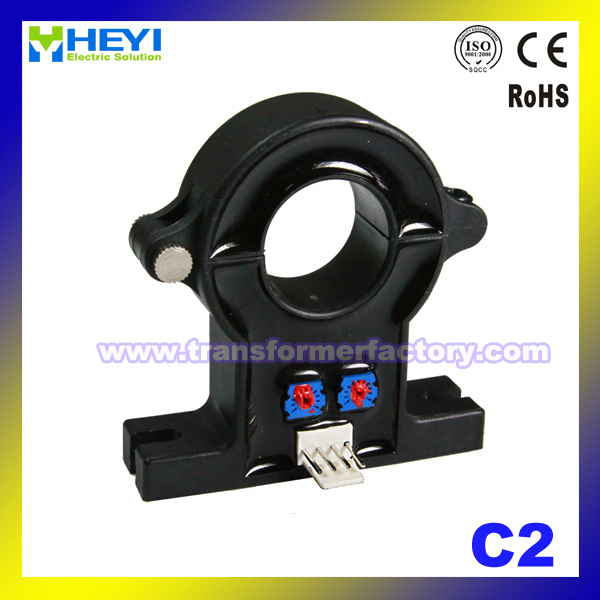

(A-C2 Series) Open Loop Dismountable Hall Effect Current Sensor

Name: (A-C2 Series) Open Loop Dismountable Hall Effect Current Sensor
Brand: all-electronics-online.com
SKU: 752585025
Availability: InStock
Rating: 4.5 (40 reviews)

Price:	US $ 14.1-16.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

A-C2 series dismountable hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-C2- 50A	A-C2- 100A	A-C2- 200A	A-C2- 300A	A-C2- 400A	A-C2- 500A	Unit
Rated current(Ipn AC)	50	100	200	300	400	500	A
Measure range(Ip AC)	0-100	0-200	0-400	0-600	0-800	0-1000	A
Rated output(Vo DC)	@Ip=±Ipn AC 5±1%						V
Supply voltage	±12,±15						V
Power Consumption	25						mA
Offset voltage	@Ip=0 ±30						mV
Offset drift	@ -40~+85ºC ≤±1						mV /ºC
Output drift	@ -40~+85ºC ≤±1						mA /ºC
Linearity	@Ip=0-±Ipn ≤1						%FS
Response time	≤200						ms
Galvanic isolation	@ 50HZ,AC,1min 2.5						KV
Bandwidth	40~20000						HZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Mechanical dimension(for reference only)

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2: -15V 3:V0UT 4:0V

Directions for use

1.When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)
2. Customs can adjust output amplitude of the transmitter by needs.
3. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	70	g

Characteristics chart

Effects of impulse noise
	( Output voltage )

Prod Model:	A-C2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	a-C2 Hall Effect Current Transmitter
Supply Voltage:	+-12,+-15
Power Consumption:	25 Ma
Offset Voltage:	@IP=0 +-30mv
Offset Drift:	@ -40~+85c <1mv/C
Output Drift:	@ -40~+85c <1mA/C
Bandwidth:	40~20000 Hz
