Voltage Sensor (A-VS1TP) Hall Effect Sensor Switch Instrument Voltage

Voltage Sensor (A-VS1TP) Hall Effect Sensor Switch Instrument Voltage
Price: US $ 5-15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

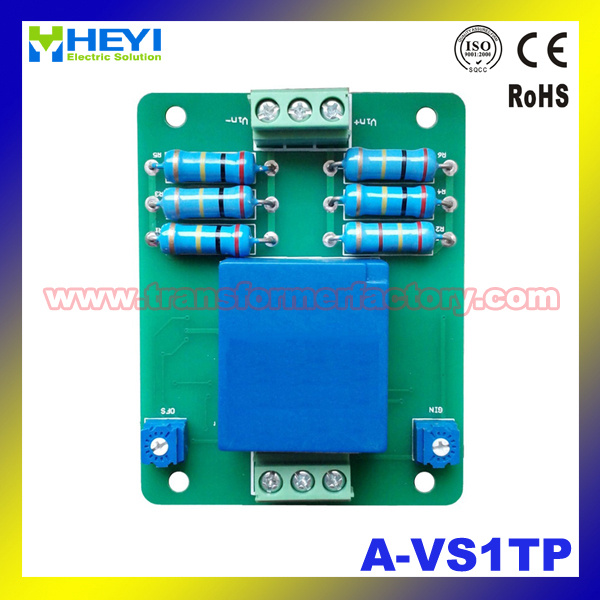

A-VS1TP series current mode voltage sensor is a device based on the principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC AC or pulsed currents.
Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF)

TypeA-VS1TP-
100V
A-VS1TP-
220V
A-VS1TP-
380V
A-VS1TP-
500V
A-VS1TP-
800V
Unit
Rated voltage(Vpn AC)±100±220±380±500±800V
Measure range(Vp AC)0-±1500-±3300-±5700-±7500-±1000V
Rated output@Vp=±Vpn ±20±1%mA
Turns ratio(Np/Ns)3333:1000T
Measure resister54~580Ω
Supply voltage+24V
Power Consumption≤20+IpX(Np/Ns)mA
Offset current@Vp=0 ±0.2mA
Offset drift@ -40~+85ºC ≤±0.5mA /ºC
Linearity@Vp=0-±Vpn ≤0.2%FS
Response time≤20ms
Galvanic isolation@ 50HZ,AC,1min 2.5KV




Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:OV 2:+24V 3:IOUT
4:+V 5:NC 6:-V
Directions for use

1. When the voltage will be measured goes through a sensor, the current will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output current are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

 ValueUnit
Operating temperature(TA)-40 to +85ºC
Storage temperature(TS)-40 to +125ºC
Mass(approx) (M)43g
Prod Model: A-VS1TP
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: Analog Sensor
Usage: Hall Sensor
Theory: Hall Sensor
Courier: DHL, TNT, FedEx
