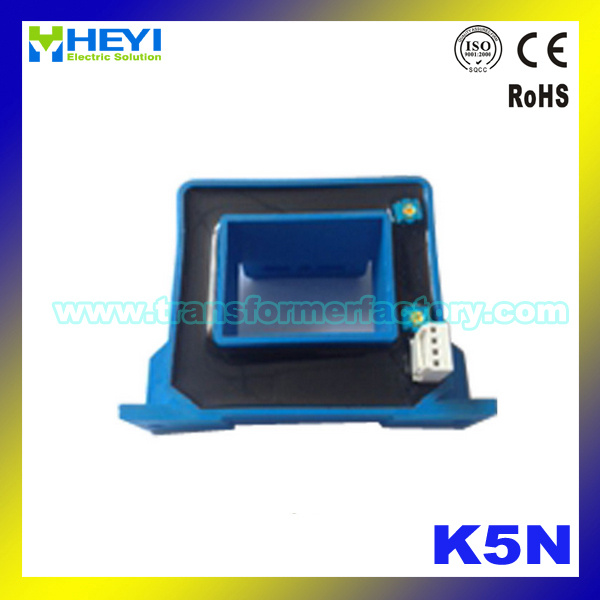

K5N series hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF)

Type	K5N-200A	K5N-400A	K5N-600A	K5N-800A	K5N-1000A	K5N-1500A	Unit
Rated current(Ipn)	±200	±400	±600	±800	±1000	±1500	A
Measure range(Ip)	±400	±800	±1200	±1600	±2000	±2000	A
Rated output	@Ip=±Ipn ±4±1%						V
Supply voltage	±12,±15						V
Power Consumption	<25						mA
Offset voltage	@Ip=0 ±20						mV
Magnetic offset	@Ip=±Ipn-0 ±15						mV
Offset drift	@ -40~+85ºC ≤±1						mV/ºC
Output drift	@ -40~+85ºC ≤±1						mV/ºC
Linearity	@Ip=0-±Ipn ≤1						%FS
Response time	@50A/μS, 10%-90% ≤5						μs
Galvanic isolation	@ 50HZ,AC,1min 3						KV
Isolation resistance	@ DC 500V 1000						MΩ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:V0UT 4:0V

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Customs can adjust Output amplitude of the sensor by needs.
3.Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	290	g

Prod Model:	K5N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Hall Sensor
Theory:	Hall Sensor
Courier:	DHL, TNT, FedEx
Material:	Mixture
