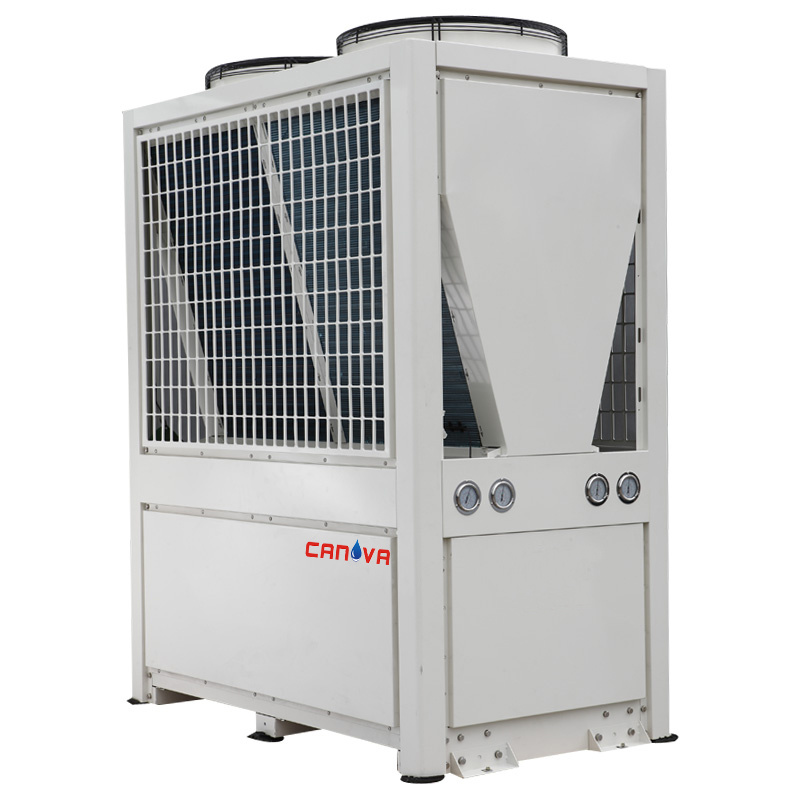

High COP commercial heating and cooling heat pump

EVI air to water heat pump is specially designed for house heating and sanitary hot water in cold area. The ambient temperature range is -25DC to 43DC. It can use safely in -20DC ambient with strong low-temperature heating capacity

Adopting the most advanced low- temperature Enhanced Vapors Injection compressor technology. EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.

Model		KFRS-10-I/D	KFRS-20-II/D	KFRS-350-II/D	KFRS-70-II/D	KFRS-90-II/D
Heating capacity	Kw	10.3	17.8	37.4	69.8	87.4
COP		4.42	4.44	4.41	4.58	4.41
Rated heated water output	L/h	220	381	800	1500	1880
Rated outlet water temp	ºC	55
Max outlet water temp	ºC	60
Rated power input	Kw	2.32	4.02	8.48	15.23	19.82
Rated current	A	11.1	7.63	16.11	28.93	37.64
Heating capacity	Kw	8.2	13.8	28.5	56.5	70
COP		3.35	3.34	3.42	3.41	3.36
Power supply	V/Hz	220~240/50	380~415/50
Compressor type		Scroll
Number of compressor		1	1	2	2	2
Heat exchanger type		High efficiency tube in shell heat exchanger
Throttling device		Emerson thermal expansion valve
Fan type		Low noise high efficiency axial type
Fan discharging		Vertical
Fan quantity		1	1	2	2	2
Fan input	w	70	250	250	750	750
Fan speed	RPM	850	880	850	940	940
Ambient temperature	ºC	-25~43
Refrigerant		R22/R407C/R410A
Noise	dB(A)	59	62	63	68	73
Water pipe size	inch	R1	R1	R1-1/2	Rc2-1/2
Cabinet		Stainless steel/Galvanized powder coated steel
Low pressure protection system		Yes
High pressure protection system		Yes
Water flow switch		No
Automatic defrosting system		Yes
Product Dimension	mm	710/710/795	810/810/995	1450/705/1375	1990/980/2045	1990/980/2045
Net weight	Kg	107	129	285	552	580
Testing condition: Heating:Ambient temp(DB/WB):20/15ºC,Water temp(input/output):15ºC/55ºC Heating:Ambient temp(DB/WB):7ºC/6ºC,Water temp(input/output):40ºC/45ºC

Features

EVI compressor special designed for high water temperature.
Base frame and external panels made of galvanized powder coated steel or stainless steel optional.
Water exchanger equipped with high efficiency tube in shell heat exchanger.
Reliable compressor with R22/R407C/R40A refrigerant.
Fully sealed control box with water proof level IPX4.
Intelligent controller and adjustment by quick mind microprocessor.
Evaporator (fins-coil) with hydrophilic coating.
Thermostatic heating element for evaporator and anti-frosting protection.
Thermostatic or element expansion valve.
Automatic defrosting function included (With reverse valve inside).

Other Product

About delivery&Payment

About Company

Prod Model:	KFRS-90II/D
Heating Capacity:	87.4
Cop:	4.41
Power Supply:	380~415V/50Hz
Compressor:	Scroll
Fan Discharging:	Vertical
Ambinet Temp:	-25c~43c

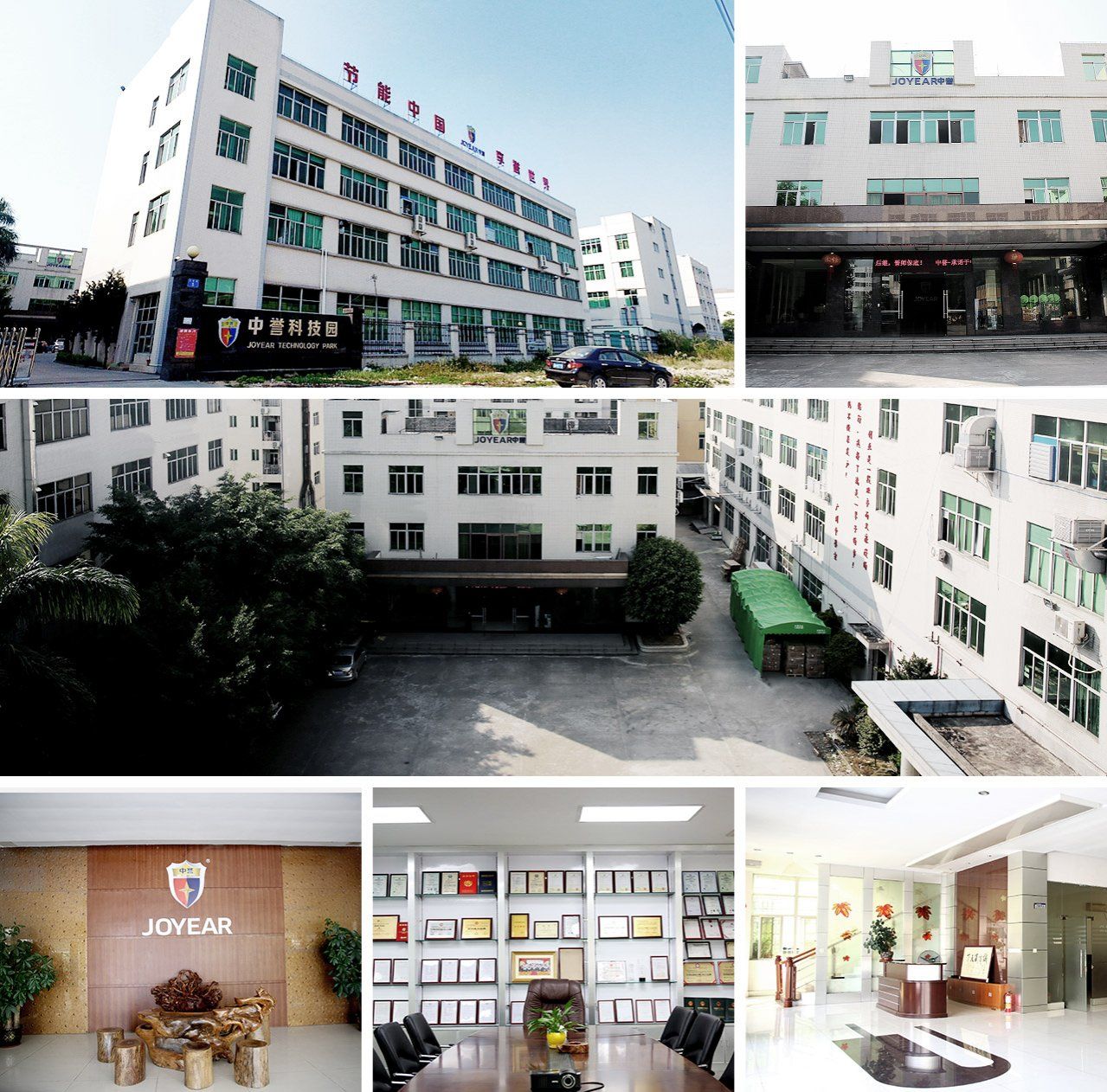

JOYEAR a professional heat pump manufacturer based in Guangzhou, with a total manufacturing base area of more than 20, 000, with over decades of experience in the HAVC industry. The brand name "CANOVA" has became one of the leading export brand of quality heating, cooling&hot water system. Our main products include hear pump, commercial air conditioner and thermal equipment, and well experience in energy-saving products. We have developed whole series of heating system equipment&energy-saving products with 4 series and more than 200 kinds of products in the past years. Our product range is as below:

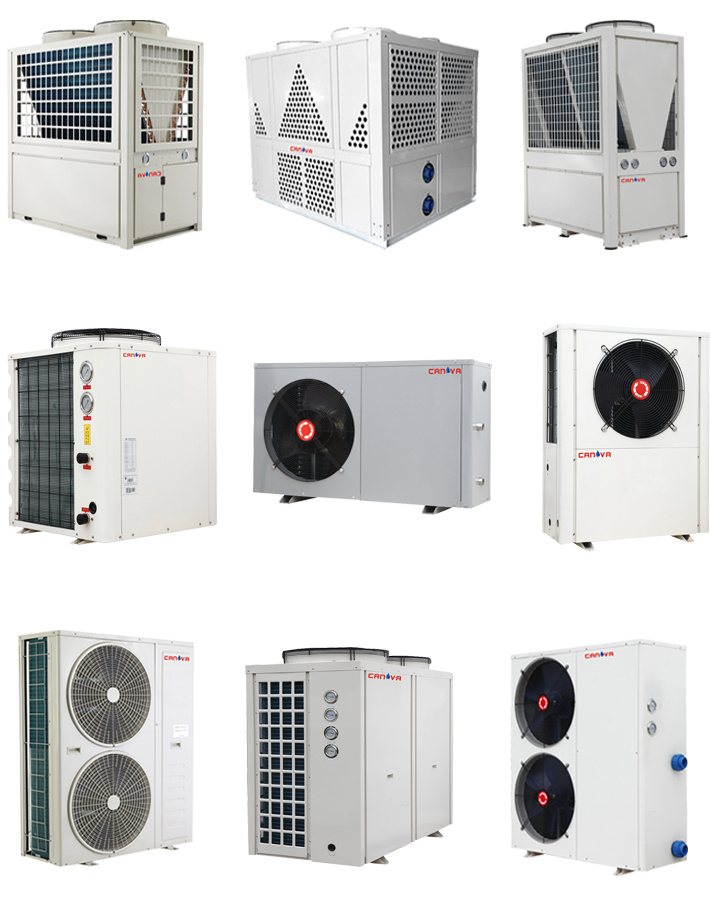

Air to water heat pump

Water to water heat pump

Swimming pool heat pump

Commercial air conditioner

Besides Chinese market, export business is our main business. So most of our products are coming with international standard, some of our products have obtained international certificate, such as CE, RoHS, SAA certificate and ERP label. The factory is certified with ISO9001: 2008 Internaltional Quality System, ISO14001 International Environmental Management System. We are always insist on the principle of quality first, customer first and focus on high-quality, competitive costs& fast service. So our products have entered into more than 60 countries with either brand name CANOVA and OEM brand.

We are always on the look-out to built strategic partnership in overseas markets and welcome opportunities where we can work in tandem with you and succeed together. OEM&ODM enquiries are welcome.

Looking towards the future, CANOVA will build a fresh and quiet living environment and comfortable life for you.
