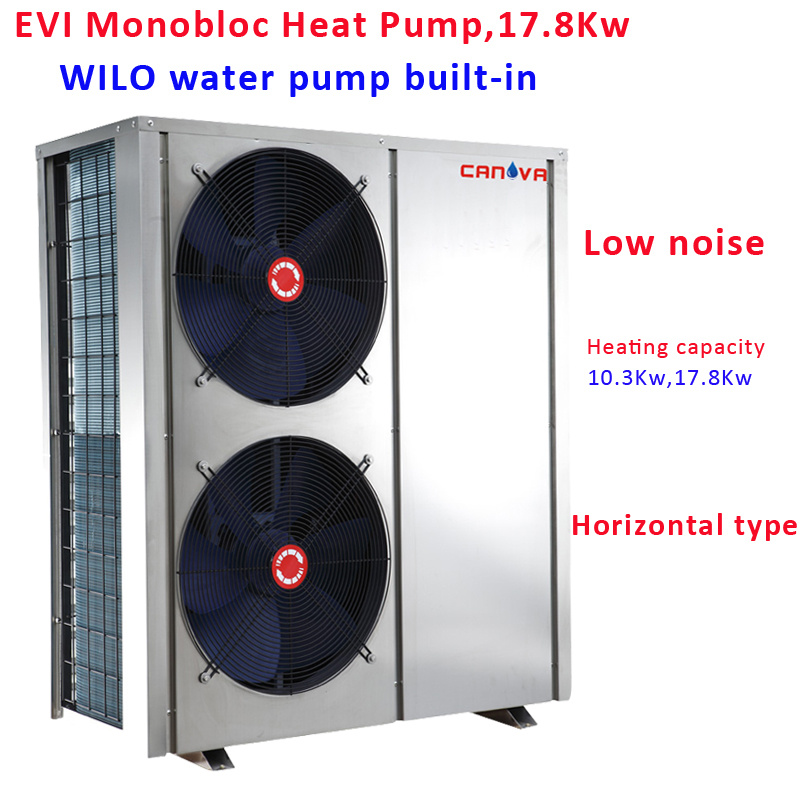

High Efficiency Evi Heating System for Low Temp Area

Name: High Efficiency Evi Heating System for Low Temp Area
Brand: all-electronics-online.com
SKU: 838062185
Availability: InStock
Rating: 4.7 (34 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High efficiency heating system for low temp area
This series is splendid for domestic central heating and cooling with fan coil units,which its water pump built in.The water tank connection with this heat pump does not have copper coil heat exchanger inside,which saves the cost of water tank.

EVI heat pump delivers higher heating capacity at low evaporation temp thereby better responding to heating requirments than normal ait source heat pumps.It can supply central heating and cooling for family with fan coil units in cold area.

Model	Model	KF240-BC/D	KF400-BC/D	KF480-BC/D
Heating capacity	Kw	8.9	15.5	17.6
COP		4.1	4.1	4.0
Heating capacity	Kw	8.2	14.6	16.5
COP		3.28	3.31	3.15
Cooling capacity	Kw	6.5	11.3	13.5
EER		2.72	2.86	2.71
Power supply	V/Hz	220~240/50	380~415/50
Compressor type		Scroll
Number of compressor		1	1	1
Fan discharging		Horizontal
Fan quantity		1	2	2
Ambient temperature	ºC	-25~43
Refrigerant		R407C
Noise	dB(A)	59	63	63
Dimension	mm	800/400/1220	1110/530/1260	1110/530/1260
Net weight	Kg	100	155	165
Testing condition:	Heating: Ambient temp(DB/WB):7ºC/6ºC,Water temp(in/out):30ºC/35ºC Heating: Ambient temp(DB/WB):7ºC/6ºC,Water temp(in/out):40ºC/45ºC Cooling: Ambient temp(DB/WB):35ºC/24ºC,Water temp(in/out):12ºC/7ºC

Features

Base frame and external panels made of galvanized powder coated or stainless steel optional.
Water exchanger equipped with high efficiency tube in shell heat exchanger.
Reliable compressor with R407C refrigerant.
Fully sealed control box with water proof level IPX4.
Intelligent controller and adjustment by quick mind microprocessor.
Air exchanger (fins-coil) with hydrophilic coating.
Thermostatic heating element for evaporator and anti-frosting protection.
Thermostatic or element expansion valve.
Automatic defrosting function included (With reverse valve inside).
High quality water pump installed inside.

Other Product

About delivery&Payment

About Company

Prod Model:	KF480-BC/D
Heating Capacity:	17.6
Cop:	4.0
Power Supply:	380~415V/50Hz
Compressor:	Scroll
Fan Discharging:	Horizontal
Ambinet Temp:	-25c~43c

JOYEAR a professional heat pump manufacturer based in Guangzhou, with a total manufacturing base area of more than 20, 000, with over decades of experience in the HAVC industry. The brand name "CANOVA" has became one of the leading export brand of quality heating, cooling&hot water system. Our main products include hear pump, commercial air conditioner and thermal equipment, and well experience in energy-saving products. We have developed whole series of heating system equipment&energy-saving products with 4 series and more than 200 kinds of products in the past years. Our product range is as below:

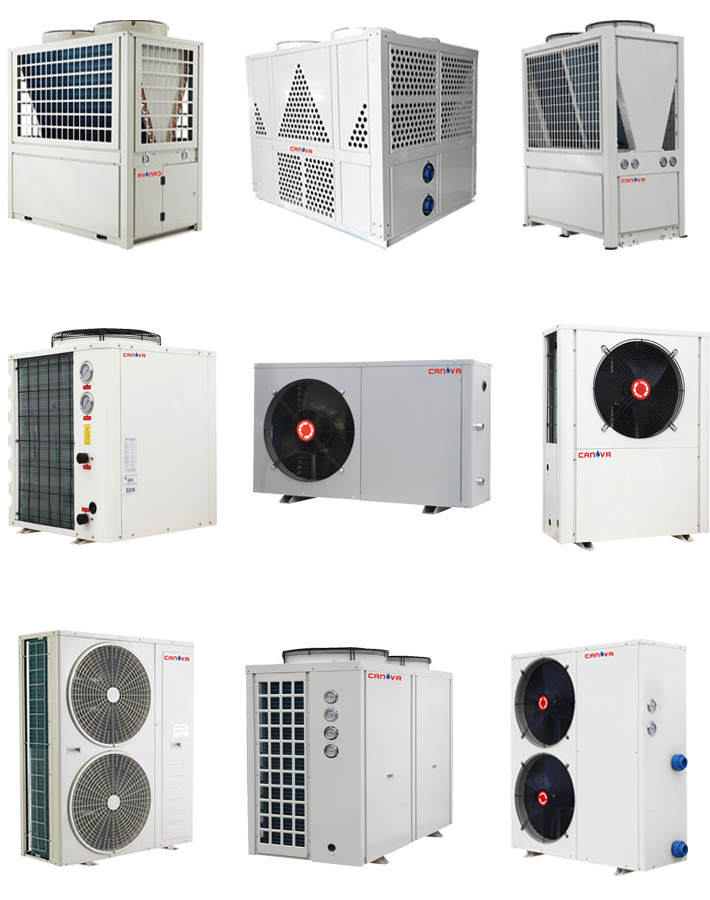

Air to water heat pump

Water to water heat pump

Swimming pool heat pump

Commercial air conditioner

Besides Chinese market, export business is our main business. So most of our products are coming with international standard, some of our products have obtained international certificate, such as CE, RoHS, SAA certificate and ERP label. The factory is certified with ISO9001: 2008 Internaltional Quality System, ISO14001 International Environmental Management System. We are always insist on the principle of quality first, customer first and focus on high-quality, competitive costs& fast service. So our products have entered into more than 60 countries with either brand name CANOVA and OEM brand.

We are always on the look-out to built strategic partnership in overseas markets and welcome opportunities where we can work in tandem with you and succeed together. OEM&ODM enquiries are welcome.

Looking towards the future, CANOVA will build a fresh and quiet living environment and comfortable life for you.
