Guangzhou Cycle Heating Hot Water Heater

Name: Guangzhou Cycle Heating Hot Water Heater
Brand: all-electronics-online.com
SKU: 838081255
Availability: InStock
Rating: 4.3 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

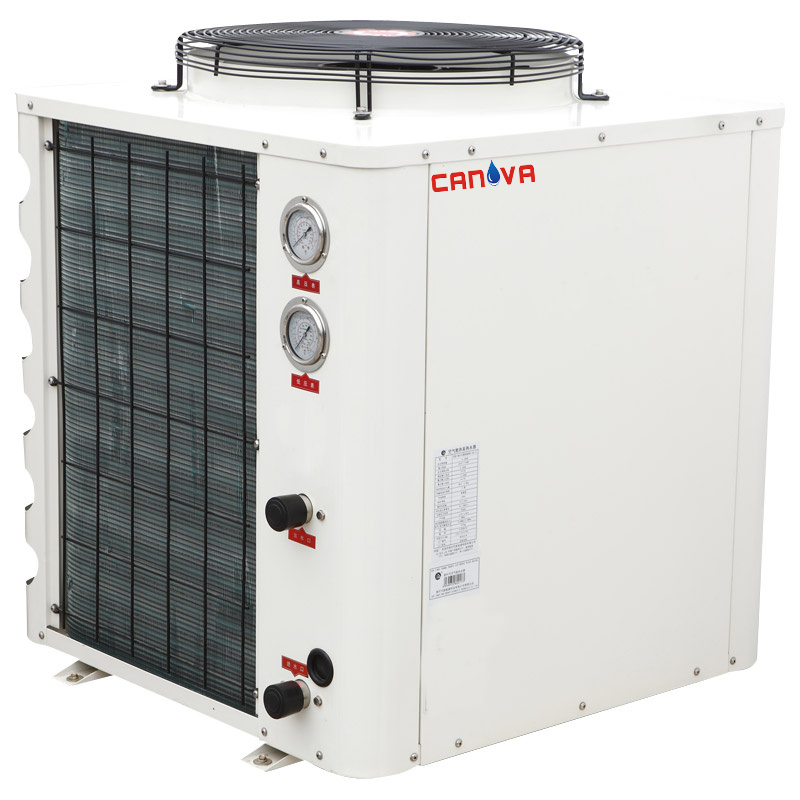

Guangzhou Cycle heating hot water heater

CANOVA cycle heating heat pump are designed for offering hot water for commercial use, such as office, workshop, super market, school, etc. In order to achieve the required water temperature, large heat pump units apply Unique "V" style evaporator design is a big strongpoint for this unit. It increased the evaporator space in air flow direction, which results bigger effective air volume. It had been proved to be better efficiency by our testing. This design is also easier for the defrosting water to drain out. Scroll compressor is standard for this series.

Model		KFRS-10I	KFRS-70II	KFRS-90II	KFRS-140II	KFRS-180II
Heating capacity	Kw	11.2	69.8	87.4	140	175
COP		4.67	4.58	4.64	4.50	4.46
Rated heated water output	L/h	241	1500	1882	3000	3750
Rated outlet water temp	ºC	55
Max outlet water temp	ºC	60
Rated power input	Kw	2.4	15.23	18.85	31.1	39.2
Rated current	A	11.50	28.92	35.80	59.10	74.40
Power supply	V/Hz	220~240/50	380~415/50
Compressor type		Scroll
Number of compressor		1	2	2	4	4
Heat exchanger type		High efficiency tube in shell heat exchanger
Throttling device		Emerson thermal expansion valve
Fan type		Low noise high efficiency axial type
Fan discharging		Vertical
Fan quantity		1	2	2	4	4
Fan input	w	70	550	750	50	750
Fan speed	RPM	850	940	940	940	940
Ambient temperature	ºC	-7~43
Refrigerant		R22/R407C
Noise	dB(A)	59	68	68	74	76
Water pipe size	inch	R1	R2-1/2	R2-/2	Rc3	Rc3
Cabinet		Stainless steel/Galvanized powder coated steel
Low pressure protection system		Yes
High pressure protection system		Yes
Water flow switch		No
Automatic defrosting system		Yes
Product Dimension	mm	710/710/795	1990/980/2045	1990/980/2045	2100/2100/2150	2100/2100/2150
Net weight	Kg	99	552	586	1100	1150
Testing condition:	Heating:Ambient temp(DB/WB):20/15ºC,Water temp(input/output):15ºC/75ºC

Features

World famous compressor designed for constant water temperature.
Base frame and external panels made of galvanized powder coated steel.
Water exchanger equipped with high efficiency tube in shell heat exchanger.
Reliable compressor with R22/R407c refrigerant.
Good sealed control box with water proof level IPX4.
Intelligent controller and adjustment by quick mind microprocessor.
High quality evaporator (fins-coil) with hydrophilic coating.
Thermostatic or element expansion valve.
Electrical heating element inside as back up for emergency.
Automatic defrosting function included (With reverse valve inside).
Stainless steel case and additional water storage tank are optional

Other Product

About delivery&Payment

About Company

Prod Model:	KFRS-10I
Hot Water Capacity:	11.2
Cop:	4.67
Power Supply:	220~240V/50Hz
Compressor:	Scroll
Fan Discharging:	Vertical
Refrigeration:	R22/R407c
Ambinet Temp:	-7c~43c

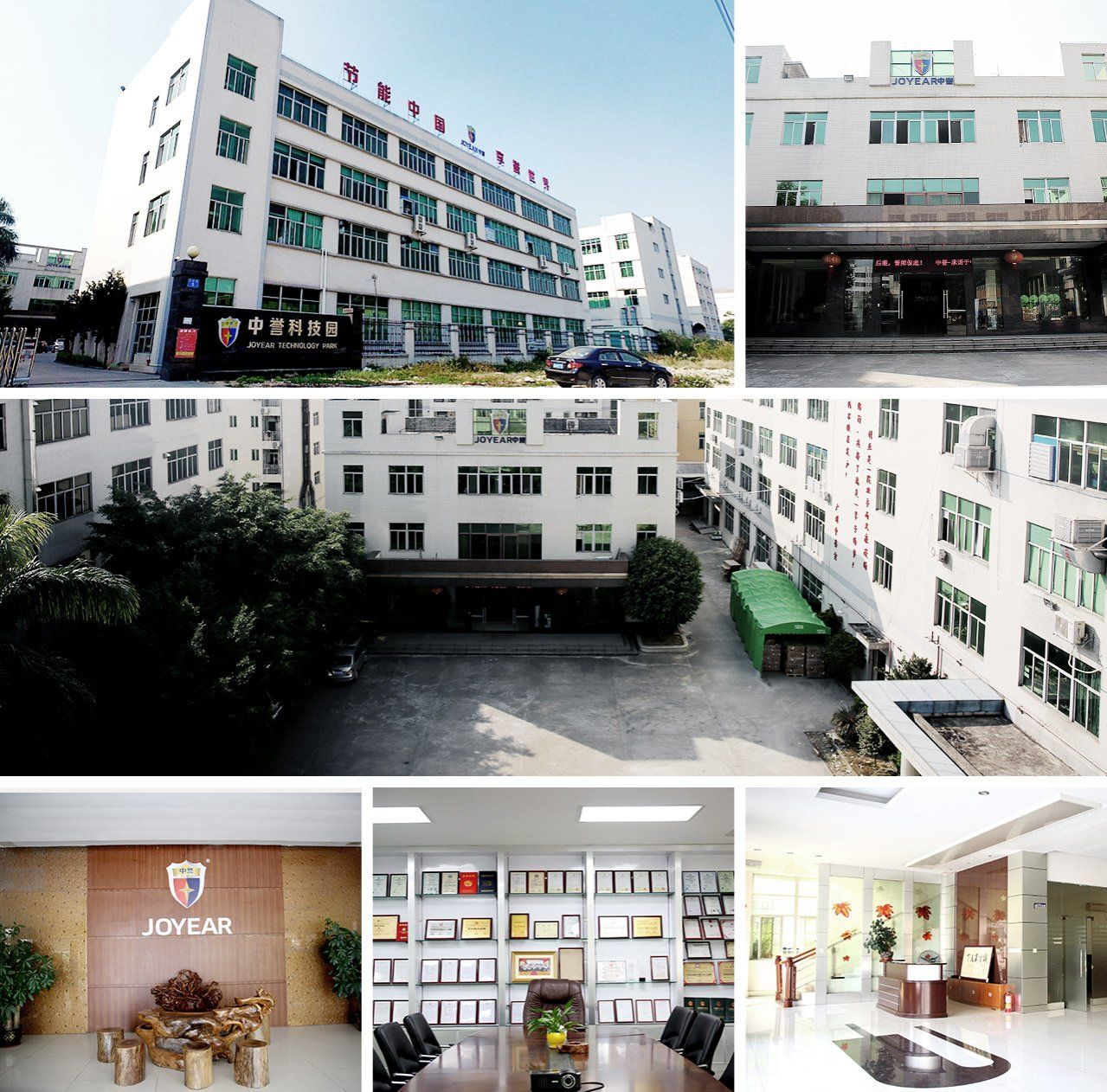

JOYEAR a professional heat pump manufacturer based in Guangzhou, with a total manufacturing base area of more than 20, 000, with over decades of experience in the HAVC industry. The brand name "CANOVA" has became one of the leading export brand of quality heating, cooling&hot water system. Our main products include hear pump, commercial air conditioner and thermal equipment, and well experience in energy-saving products. We have developed whole series of heating system equipment&energy-saving products with 4 series and more than 200 kinds of products in the past years. Our product range is as below:

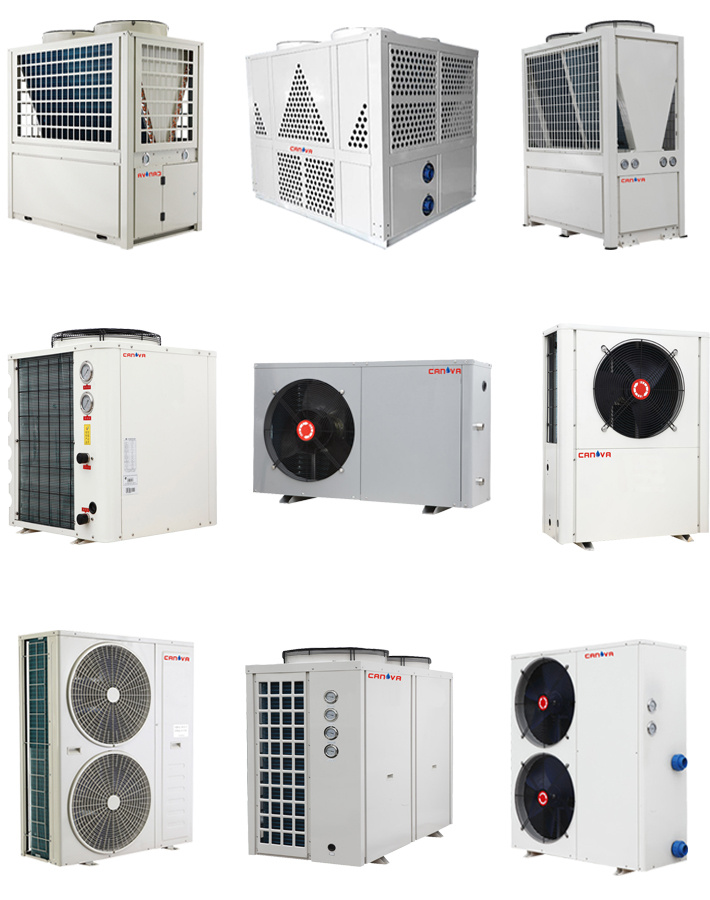

Air to water heat pump

Water to water heat pump

Swimming pool heat pump

Commercial air conditioner

Besides Chinese market, export business is our main business. So most of our products are coming with international standard, some of our products have obtained international certificate, such as CE, RoHS, SAA certificate and ERP label. The factory is certified with ISO9001: 2008 Internaltional Quality System, ISO14001 International Environmental Management System. We are always insist on the principle of quality first, customer first and focus on high-quality, competitive costs& fast service. So our products have entered into more than 60 countries with either brand name CANOVA and OEM brand.

We are always on the look-out to built strategic partnership in overseas markets and welcome opportunities where we can work in tandem with you and succeed together. OEM&ODM enquiries are welcome.

Looking towards the future, CANOVA will build a fresh and quiet living environment and comfortable life for you.
