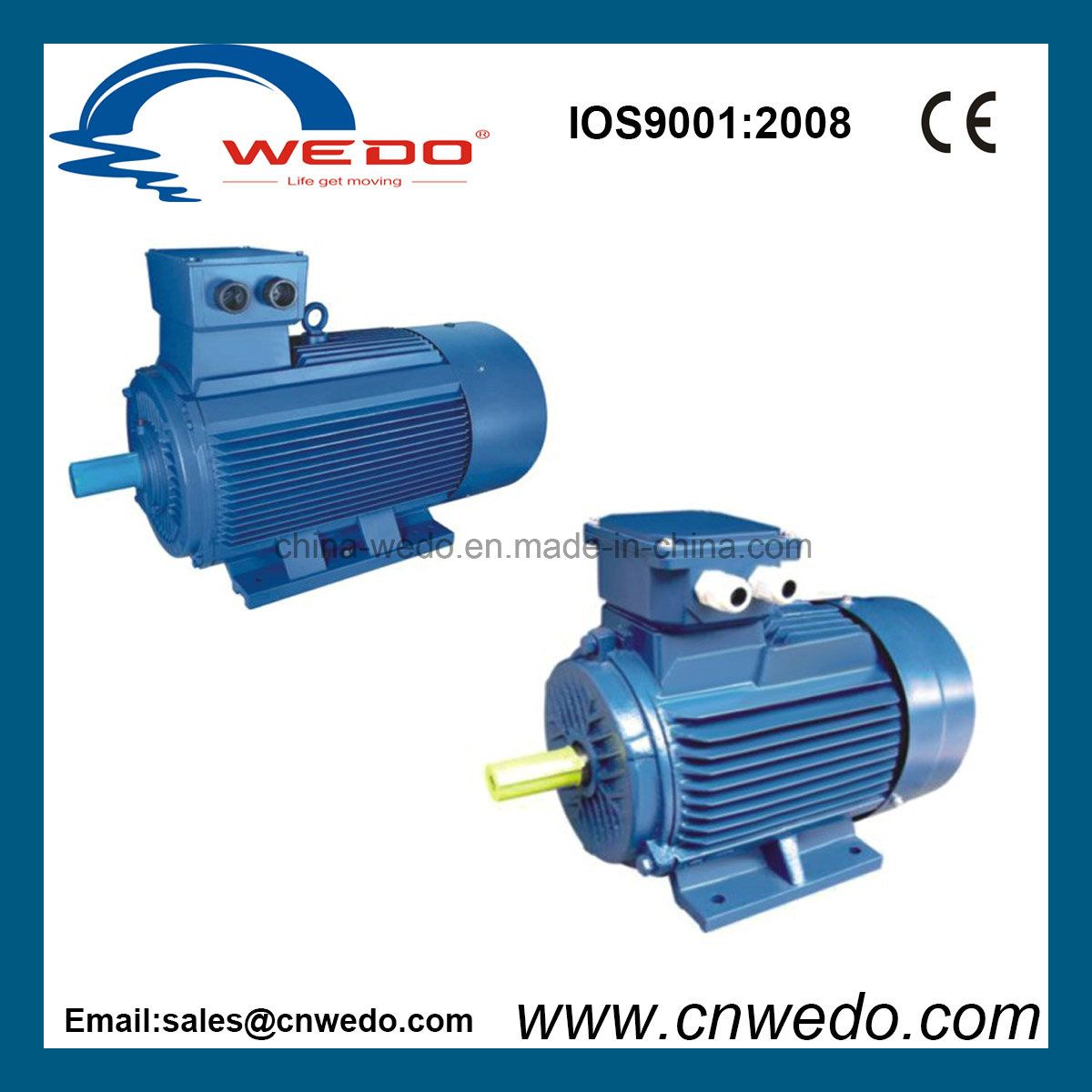

High Efficient Three Phase Asynchronous Electric Motor Y2-280m-2
| Price: |
US $ 293/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
Y2-280m-2 |
| Ambient Temperature: |
-15~40 Degree Centigrade |
| Altitude: |
Not Exceeding 1000m |
| Rated Voltage: |
380V or Any Voltage Between 220-760V |
| Rated Frequency: |
50Hz\60Hz |
| Protection Class: |
IP54\55 |
| Insulation Class: |
F\H |
| Cooling Method: |
Ico141 |
| Duty: |
S1(Continous) |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Direct on-line Starting |
| Species: |
Y2 Series Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10 |
| Certification: |
ISO9001, CCC, Ce, CQC, ISO14001 |
| Brand: |
Wedo |
Product Description

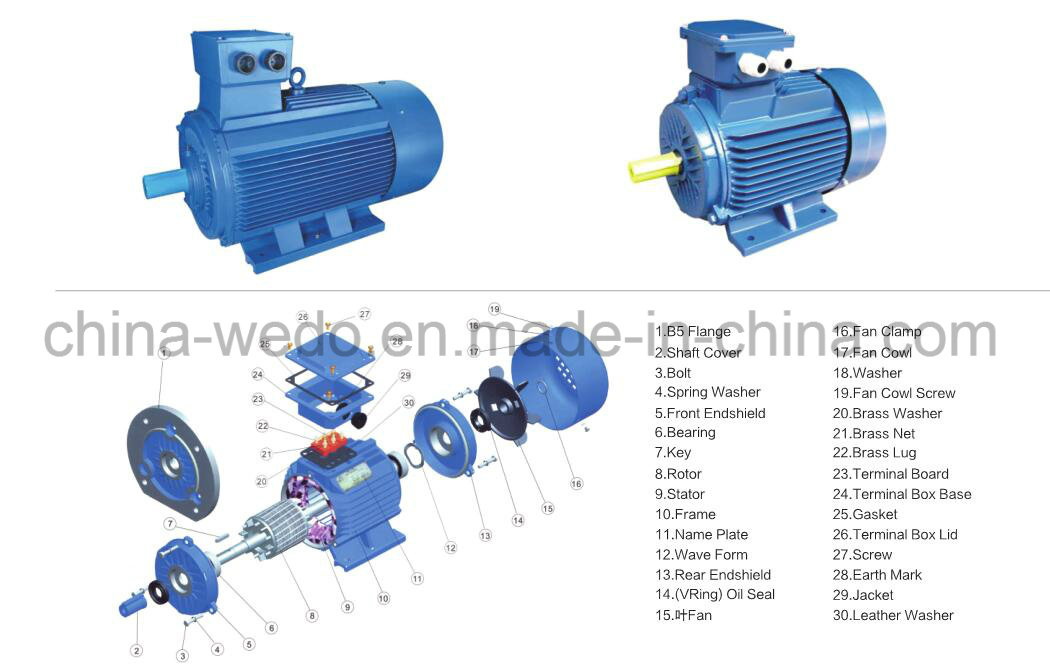

Y2 series Three-phase Asynchronous Induction Motor
Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380V or any voltage between 220-760V
Rated frequency: 50HZ,60HZ
Protection class: IP54/IP55
Insulation class: F,H
Cooling method: ICO141
Duty:S1 (continuous)
Connection: Star-connection for up to 3kw, delta-connection for 4kw and above.
Technical Data | Type | Power (kw) | Speed
(r/min) | Current IN(A) | Eff. (%) | Power Factor | Ist/Tn | Tst/Tn | |
| Synchronous Speed 3000 rpm |
| Y2-63M1-2 | 0.18 | 2720 | 0.53 | 65 | 0.80 | 5.5 | 2.2 | 2.2 |
| Y2-63M2-2 | 0.25 | 0.69 | 68 | 0.81 |
| Y2-71M1-2 | 0.37 | 2740 | 0.99 | 70 | 0.81 | 6.1 |
| Y2-71M2-2 | 0.55 | 1.40 | 73 | 0.82 | 2.3 |
| Y2-80M1-2 | 0.75 | 2835 | 1.83 | 77.4 | 0.83 |
| Y2-80M2-2 | 1.1 | 2.58 | 79.6 | 0.84 | 7.0 |
| Y2-90S-2 | 1.5 | 2845 | 3.43 | 81.3 |
| Y2-90L-2 | 2.2 | 4.85 | 83.2 | 0.85 |
| Y2-100L-2 | 3.0 | 2875 | 6.31 | 84.6 | 0.87 | 7.5 |
| Y2-112M-2 | 4.0 | 2895 | 8.10 | 85.8 | 0.88 |
| Y2-132S1-2 | 5.5 | 2905 | 11.0 | 87.0 |
| Y2-132S2-2 | 7.5 | 14.9 | 88.1 |
| Y2-160M1-2 | 11 | 2935 | 21.3 | 89.4 | 0.89 |
| Y2-160M2-2 | 15 | 28.8 | 90.3 |
| Y2-160L-2 | 18.5 | 34.7 | 90.9 | 0.90 |
| Y2-180M-2 | 22 | 2945 | 41.0 | 91.3 | 2.0 |
| Y2-200L1-2 | 30 | 2955 | 55.5 | 92.0 |
| Y2-200L2-2 | 37 | 67.9 | 92.5 |
| Y2-225M-2 | 45 | 2975 | 82.3 | 92.9 |
| Y2-250M-2 | 55 | 101 | 93.2 |
| Y2-280S-2 | 75 | 134 | 93.8 |
| Y2-280M-2 | 90 | 160 | 94.1 | 0.91 |
| Y2-315S-2 | 110 | 2980 | 195 | 94.3 | 7.1 | 1.8 | 2.2 |
| Y2-315M-2 | 132 | 233 | 94.6 |
| Y2-315L1-2 | 160 | 279 | 94.8 | 0.92 |
| Y2-315L2-2 | 200 | 348 | 95.0 |
| Y2-355M-2 | 250 | 433 | 95.0 | 1.6 |
| Y2-355L-2 | 315 | 544 | 95.0 |
| Synchronous Speed 1500 rpm |
| Y2-63M1-4 | 0.12 | 1310 | 0.44 | 57 | 0.72 | 4.4 | 2.1 | 2.2 |
| Y2-63M2-4 | 0.18 | 0.62 | 60 | 0.73 |
| Y2-71M1-4 | 0.25 | 1330 | 0.79 | 65 | 0.75 | 5.2 |
| Y2-71M2-4 | 0.37 | 1.12 | 67 | 0.74 |
| Y2-80M1-4 | 0.55 | 1395 | 1.57 | 71 | 0.75 | 2.4 | 2.3 |
| Y2-80M2-4 | 0.75 | 2.03 | 79.6 | 0.76 | 6.0 | 2.3 |
| Y2-90S-4 | 1.1 | 1405 | 2.89 | 81.4 | 0.77 |
| Y2-90L-4 | 1.5 | 3.70 | 82.8 | 0.79 |
| Y2-100L1-4 | 2.2 | 1435 | 5.16 | 84.3 | 0.81 | 7.0 |
| Y2-100L2-4 | 3.0 | 6.78 | 85.5 | 0.82 |
| Y2-112M-4 | 4.0 | 1445 | 8.80 | 86.6 |
| Y2-132S-4 | 5.5 | 11.7 | 87.7 | 0.83 |
| Y2-132M-4 | 7.5 | 15.6 | 88.7 | 0.84 |
| Y2-160M-4 | 11 | 1465 | 22.3 | 89.8 | 2.2 |
| Y2-160L-4 | 15 | 30.1 | 90.6 | 0.85 | 7.5 |
| Y2-180M-4 | 18.5 | 1475 | 36.5 | 91.2 | 0.86 |
| Y2-180L-4 | 22 | 43.2 | 91.6 |
| Y2-200L-4 | 30 | 57.6 | 92.3 | 7.2 |
| Y2-225S-4 | 37 | 1485 | 69.9 | 92.7 | 0.87 |
| Y2-225M-4 | 45 | 84.7 | 93.1 |
| Y2-250M-4 | 55 | 103 | 93.5 |
| Y2-280S-4 | 75 | 140 | 94.0 |
| Y2-280M-4 | 90 | 1490 | 167 | 94.2 |
| Y2-315S-4 | 110 | 201 | 94.5 | 0.88 | 6.9 | 2.1 | 2.2 |
| Y2-315M-4 | 132 | 240 | 94.7 |
| Y2-315L1-4 | 160 | 287 | 94.9 | 0.89 |
| Y2-315L2-4 | 200 | 359 | 95.1 |
| Y2-355M-4 | 250 | 1485 | 443 | 95.1 | 0.90 |
| Y2-355L-4 | 315 | 556 | 95.1 |
| Type | Power (kw) | Speed
(r/min) | Current IN(A) | Eff. (%) | Power Factor | Ist/Tn | Tst/Tn | |
| Synchronous Speed 3000 rpm |
| Y2-71M1-6 | 0.18 | 850 | 0.74 | 56 | 0.66 | 4.0 | 1.9 | 2.0 |
| Y2-71M2-6 | 0.25 | 0.95 | 59 | 0.68 |
| Y2-80M1-6 | 0.37 | 895 | 1.30 | 62 | 0.70 | 4.7 |
| Y2-80M2-6 | 0.55 | 1.79 | 65 | 0.72 | 2.1 |
| Y2-90S-6 | 0.75 | 915 | 2.29 | 75.9 | 5.5 | 2.0 |
| Y2-90L-6 | 1.1 | 3.18 | 78.1 | 0.73 |
| Y2-100L-6 | 1.5 | 945 | 3.94 | 79.8 | 0.75 |
| Y2-112M-6 | 2.2 | 5.60 | 81.8 | 0.76 | 6.5 |
| Y2-132S-6 | 3.0 | 965 | 7.40 | 83.3 | 2.1 |
| Y2-132M1-6 | 4.0 | 9.80 | 84.6 |
| Y2-132M2-6 | 5.5 | 12.9 | 86.0 | 0.77 |
| Y2-160M-6 | 7.5 | 975 | 17.0 | 87.2 | 0.78 | 2.0 |
| Y2-160L-6 | 11 | 24.2 | 88.7 | 0.81 | 7.0 |
| Y2-180L-6 | 15 | 31.6 | 89.7 |
| Y2-200L1-6 | 18.5 | 38.6 | 90.4 | 0.83 | 2.1 |
| Y2-200L2-6 | 22 | 44.7 | 90.9 | 0.84 |
| Y2-225M-6 | 30 | 985 | 59.3 | 91.7 | 0.86 | 2.0 |
| Y2-250M-6 | 37 | 71.0 | 92.2 | 2.1 |
| Y2-280S-6 | 45 | 86.0 | 92.7 | 2.0 |
| Y2-280M-6 | 55 | 105 | 93.1 |
| Y2-315S-6 | 75 | 990 | 141 | 93.7 | 2.0 |
| Y2-315M-6 | 90 | 169 | 94.0 |
| Y2-315L1-6 | 110 | 206 | 94.3 | 6.7 |
| Y2-315L2-6 | 132 | 244 | 94.6 | 0.87 |
| Y2-355M1-6 | 160 | 292 | 94.8 | 0.88 | 1.9 |
| Y2-355M2-6 | 200 | 365 | 95.0 |
| Y2-355L-6 | 250 | 455 | 95.0 |
| Synchronous Speed 750 rpm |
| Y2-80M1-8 | 0.18 | 630 | 0.88 | 51 | 0.61 | 3.3 | 1.8 | 1.9 |
| Y2-80M2-8 | 0.25 | 640 | 1.15 | 54 |
| Y2-90S-8 | 0.37 | 660 | 1.49 | 62 | 4.0 |
| Y2-90L-8 | 0.55 | 2.18 | 63 | 2.0 |
| Y2-100L1-8 | 0.75 | 680 | 2.39 | 71 | 0.67 |
| Y2-100L2-8 | 1.1 | 3.32 | 73 | 0.69 | 5.0 |
| Y2-112M-8 | 1.5 | 690 | 4.50 | 75 |
| Y2-132S-8 | 2.2 | 710 | 6.00 | 78 | 0.71 | 6.0 |
| Y2-132M-8 | 3.0 | 7.90 | 79 | 0.73 |
| Y2-160M1-8 | 4.0 | 720 | 10.3 | 81 | 1.9 |
| Y2-160M2-8 | 5.5 | 13.6 | 83 | 0.74 | 2.0 |
| Y2-160L-8 | 7.5 | 17.8 | 85.5 | 0.75 |
| Y2-180L-8 | 11 | 730 | 25.1 | 87.5 | 0.76 | 6.6 |
| Y2-200L-8 | 15 | 34.1 | 88 |
| Y2-225S-8 | 18.5 | 40.6 | 90 | 1.9 |
| Y2-225M-8 | 22 | 740 | 47.4 | 90.5 | 0.78 |
| Y2-250M-8 | 30 | 64.0 | 91 | 0.79 |
| Y2-280S-8 | 37 | 78.0 | 91.5 |
| Y2-280M-8 | 45 | 94.0 | 92 |
| Y2-315S-8 | 55 | 111 | 92.8 | 0.81 | 1.8 |
| Y2-315M-8 | 75 | 151 | 93 |
| Y2-315L1-8 | 90 |
| 178 | 93.8 | 0.82 |
| Y2-315L2-8 | 110 |
| 217 | 94 | 7.2 |
| Y2-355M1-8 | 132 |
| 261 | 93.7 |
| Y2-355M2-8 | 160 |
| 315 | 94.2 |
| Y2-355L-8 | 200 |
| 388 | 94.5 | 0.83 |
| Synchronous Speed 600 rpm |
| Y2-315S-10 | 45 | 590 | 100 | 91.5 | 0.75 | 6.2 | 1.5 | 2.0 |
| Y2-315M-10 | 55 | 121 | 92 |
| Y2-315L1-10 | 75 | 162 | 92.5 | 0.76 |
| Y2-315L2-10 | 90 | 191 | 93 | 0.77 |
| Y2-355M1-10 | 110 | 230 | 93.2 | 0.78 | 6.0 | 1.3 |
| Y2-355M2-10 | 132 | 275 | 93.5 |
| Y2-355L-10 | 160 | 334 | 93.5 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
