Yc/Ycl Electrical Motor Heavy-Duty Single-Phase Capacitors Start
| Price: |
US $ 44.7-171/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |

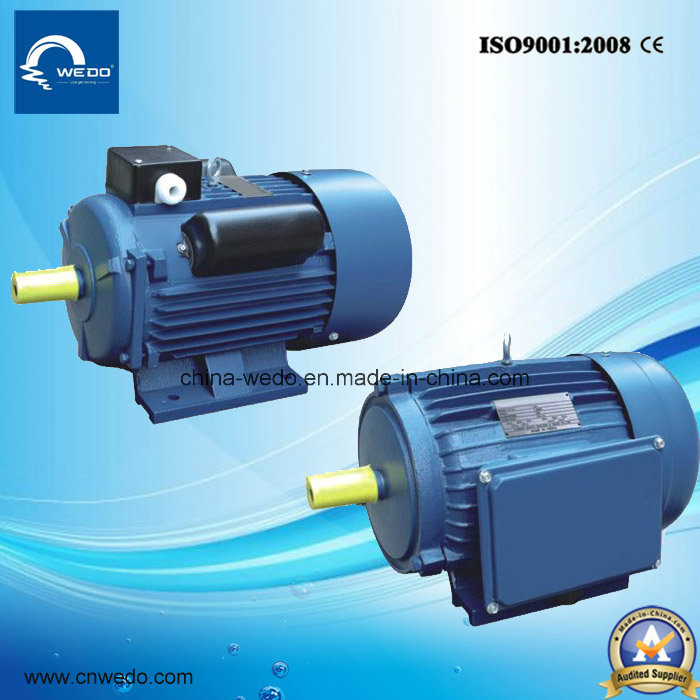

YC/YCL Series Heavy-duty Single-phase Capacitors Start Induction Motor
INTRODUCE
YC series motors are totally enclosed fan cooled(TEFC) heavy-duty single-phase induction motors.The mounting dimension is fully comformed with IEC standard.When rated output is 3HP or below,motors and of capacitors start,and 4HP or above with capacitor start and run.YC series motors are integrated with up-to date design,best quality materies construction,and possess the features of pleasant-looking appearance,outstanding performance,easy maintenance.They also concentrate the advantage of high starting torque,smooth turning,low temperature rise,low noise and great overload performance.YC series motors are suitable for powering small type drilling machines and water pumps,especially for family workshops where only single-phase current supply is available.
OPERATING CONDITIONSAmbient temperature:-15ºC< θ<40ºC
Altitude:Not exceeding 1000m
Rated voltage:220V
Rated frequency:50HZ/60HZProtection class:IP44/IP54
Insulation Class:ClassB/F
Cooling method:ICO141
Duty:S1(continuous)
Technical Data | Type | Output | Voltage
(V) | Current
(A) | Speed
(r/min) | Efficiency
(%) | Power
Factor | Tstart/Tn | Lst/Ln |
|
| HP | KW |
| YC80a-2 | 1/2 | 0.37 | 220 | 3.7 | 2880 | 62 | 0.73 | 2.8 | 6.5 | 1.8 |
| YC80b-2 | 3/4 | 0.55 | 220 | 5.3 | 2880 | 65 | 0.73 | 2.8 | 6.5 | 1.8 |
| YC80c-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 0.75 | 2.8 | 6.5 | 1.8 |
| YC90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 0.77 | 2.4 | 7.0 | 1.8 |
| YC90L-2 | 2 | 1.5 | 220 | 12.1 | 2900 | 72 | 0.78 | 2.4 | 7.0 | 1.8 |
| YC100L-2 | 3 | 2.2 | 220 | 17.1 | 2900 | 74 | 0.79 | 2.1 | 7.0 | 1.8 |
| YC112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 0.84 | 2.2 | 7.0 | 1.8 |
| YC112M2-2 | 5 | 3.7 | 220 | 24.8 | 2900 | 79 | 0.86 | 2.2 | 7.0 | 1.8 |
| YC80a-4 | 1/3 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.60 | 2.8 | 6 | 1.8 |
| YC80b-2 | 1/2 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 2.8 | 6 | 1.8 |
| YC80c-2 | 3/4 | 0.55 | 220 | 6.0 | 1450 | 64 | 0.65 | 2.8 | 6 | 1.8 |
| YC90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.4 | 6.5 | 1.8 |
| YC90L-4 | 1.5 | 1.1 | 220 | 10.5 | 1450 | 70 | 0.68 | 2.4 | 6.5 | 1.8 |
| YC100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.70 | 2.4 | 6.5 | 1.8 |
| YC112M-4 | 3 | 2.2 | 220 | 19.3 | 1450 | 72 | 0.72 | 2.2 | 6.5 | 1.8 |
| YC132SA-4 | 4 | 3 | 220 | 25.2 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 |
| YC132SB-4 | 5 | 3.7 | 220 | 30 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 |
| YC132M-4 | 7.5 | 5.5 | 220 | 32.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
| Prod Model: |
YC/YCL SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Altitude: |
Not Exceeding 1000m |
| Rated Voltage: |
220V |
| Rated Frequency: |
50Hz\60Hz |
| Protection Class: |
IP44\54 |
| Insulation Class: |
B\F |
| Duty: |
S1(Continous) |
| Cooling Method: |
Ico141 |
| Ambient Temperature: |
-15~40 Degree Centigrade |
| Application: |
Industrial |
| Operating Speed: |
Constant Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Protection Type |
| Starting Mode: |
Variable Frequency Starting |
| Species: |
Yc/Ycl Series Single-Phase |
| Number Of Poles: |
2, 4 |
| Certification: |
Ce, CQC, ISO14001 |
| Brand: |
Wedo |
Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.
Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...
The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,
WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.
WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.
History: 15 years professional manufacturer of water pumps and motors.

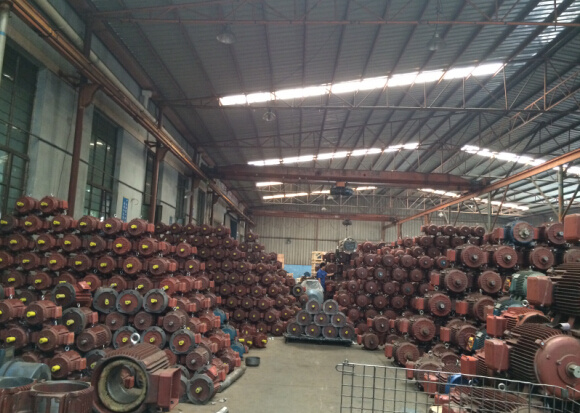

Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.
Technology: A strong team of international and professional technical engineers.
Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.

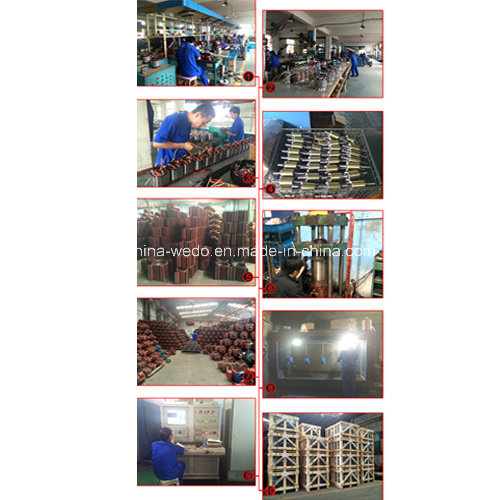

Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.
Production Capacity: 300, 000 PCS/year.
Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.
Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
