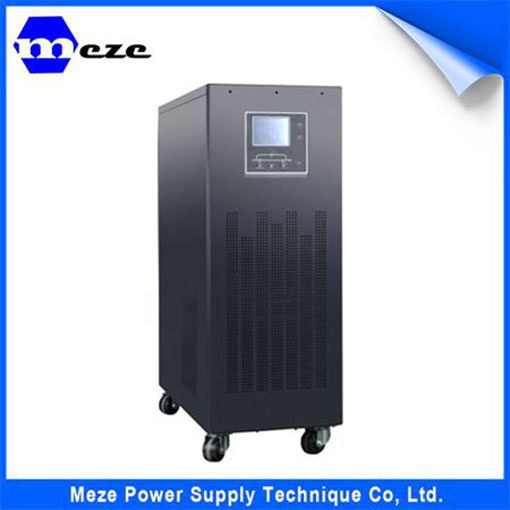

High Frequency Online UPS DC for industry equipment
| MZT9830L the main technical parameters |
| modelMZT9830L | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 120KVA | 150KVA | 200KVA | 300KVA | 400KVA |
| Nominalcapacity(KVA) | 10 | 15 | 20 | 30 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | 400 |
| Singe-phase maximum current input(A) | 19 | 29 | 38 | 57 | 76 | 114 | 152 | 189 | 227 | 303 | 379 | 568 | 609 |
| Works as well as the principle | On-line power supply,static bypass switch(uninterrupted switch)double conversion technology |
| Ac input parameters | Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±25% |
| Nominal frequency | 50Hz±10%,60Hz±10% |
| The voltage harmonic distortion | <10% |
| Soft sart | 0-100%5sec |
| bypass | Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±15% |
| Nominal frequency | 50Hz/60Hz±10% |
| Inverter/bypass(conversin) | 0ms |
| The battery | Number of battery unit | 30knots/12v series |
| Nominal battery voltage | 360V |
| maximum discharge current(A) | 25 | 38 | 51 | 76 | 101 | 152 | 203 | 253 | 305 | 405 | 550 | 760 | 1015 |
| Float chargin voltage | 405V(3 months automatic battery to charge,charge voltarge voltage 435V) |
| Charging curret | 1A-5A(according to battery capacity setting) |
| inverter | The load power factor | 0.8(0.9optinal) |
| Number of phase | Three-phase+N+G |
| Nominal voltage | 380VAC±1%(The steady-state load),380VAC±3%(The load fluctuation |
| Nominal frequency | 50Hz±0.05%,60Hz±0.05%(Battery power) |
| Frequency stability:when not in sync | <±0.05% |
| When the frequency stability:synchronization | <±5% |
| Output waveform | Sine wave |
| Total harmonic distortion | Lindar load<2%:The nonlinear load<4% |
| Dynamic load voltage transients | <5%(from 0 to 100% more |
| Transient recovery time | <10ms(±5%) |
| Unbalanced voltage | <±1%(Balance the load voltage),<±3%(Unbalanced load) |
| Overload capacity | Overload for ten min later turn the bypass,125% 150%overload lasts1 min after bypass |
| The inverter efficiency and load by 100% | 95% |
| The system structure | Total efficiency of 100% load | 91%,95%.ECO |
| Computer ommunication interface | Rs232,(Rs485.Network remote monitoring software) |
| Operating temperature | 0-40ºC |
| Relating humidity | 0-90% Without any condensation |
| Running high | <1500m(each additional,100meters power fell by 1%, the highest4000meters |
| Cooling way | Forced vention(temperature control) |
| Noise(db) | <65 |
| The body color | black |
| The input cable | The bottom/bcak |
| Easy to maintain | On/about/in front of the plane can be opened |
| Lnput device | Terminal row |
| The output device | Terminal row |
| Size (D×W×H) | 725×450×1135 | 855×450×1235 | 715×855×1500 | 1100×900×1700 | 1200×1500×1800 | 1300×1800×1800 |
| The host weight(kg) | 200 | 250 | 340 | 400 | 480 | 650 | 900 | 1200 | 1300 | 1480 | 2000 | 2100 | 2500 |
| Option to | Rs485,weaver board,network management system,battery testing sydstem,lightning protection devices for option |
| is required to order |
Strong English display interface
Double transformation is on-line design
Flexible weaver technology
System with high eff iciency
The output transformer
With optional 12 pulse rectifier
Allowed 100% to balance working
Intelligent battery management function
To protect the function is all ready
Sound and light alarm
Multiplexed output
A variety of voltage output
Color optional
Using full digital touch screen LCD display in both English and Chinese, display content
can select the Chinese/English set, running state, operating procedures, data collection and
troubleshooting information at a glance.
Using DSP digital control technique, the UPS control precision, fast, reliable, stable and
have perfect protection function and high reliability;Output waveform distortion is small.
Suitable for different load and system, can be stand-alone, 1 + 1 run weaver, also can be
more machine (N + 1) weaver.
Using ECO work mode, efficiency is as high as 98% above.
The output transformer isolation effect, reduce the load harmonic current and mains
interference.
Improve the UPS power input factor, effectively suppress the harmonic pollution
caused by UPS for grid power.
Three-phase independent modulation, full bridge inverter technology, at 100%
unbalanced three-phase load can also be proper and reliable power supply.
Can choose independent batter y testing kits, according to the capacity of the battery
configuration, through the operation interface to set parameters, and by the sof tware
automatically adjust the charging current, at the same time can be set up according to the
power grid security situation battery automatically detect and charge/discharge time interval,
prolong the ser vice life of batteries, truly realize intelligent management of the batter y.
Equipped with many kinds of system protection, overvoltage, under voltage, over current,
overload, shor t circuitand abnormal condition for testing, alarm, environmental adaptation
ability.
With sound and light alarm function, be helpful for remote visual management, put an
end to the unexpected loss caused by the traditional UPS can't real-time regulation, a green
light: UPS normal operation;Yellow: batter y mode;Red light: maintenance report to the police.
10 ~ 80 kva with 4 kinds of output, can integrate a variety of equipment, no longer a
peripheral switch box.
Compatible with a variety of input and ou tput voltage specifications, the output using
copper wire winding of the isolation transformer, low loss, low fever, compatible with sundials,
ul, the mainland and other voltage.
Host and batter y box adopts imported coating, and can be customized according to user
requirements, tonal and consistent with the equipment.Optional color: beige, computer is
white, cold ashes.
