High Frequency Plate Power Vacuum Capacitor (PEZ140, 1000PE, 21KV, 90kVA)

Name: High Frequency Plate Power Vacuum Capacitor (PEZ140, 1000PE, 21KV, 90kVA)
Brand: all-electronics-online.com
SKU: 832741495
Availability: InStock
Rating: 4.7 (87 reviews)

Price:	Negotiable/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

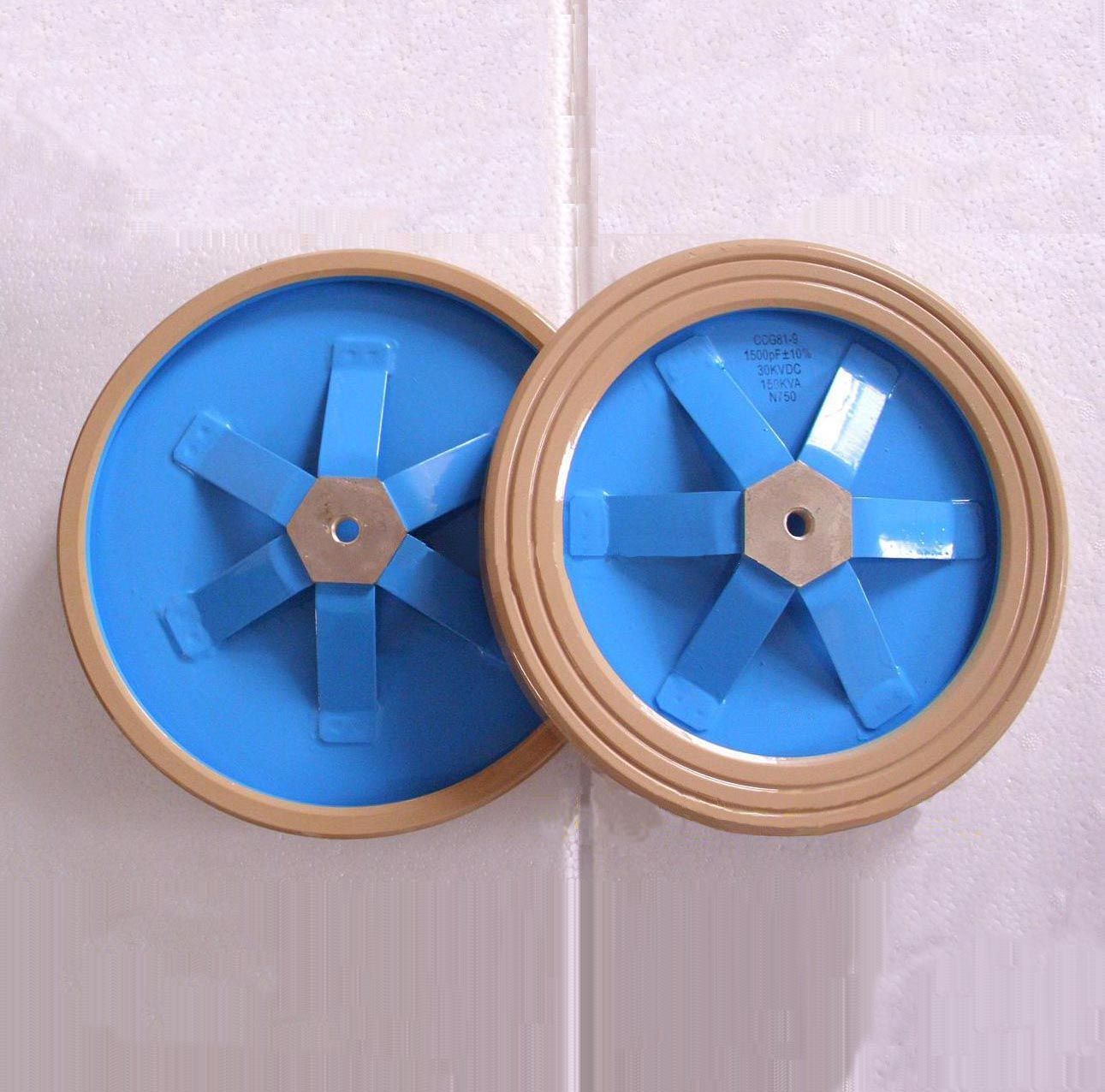

1. Product Name: Plate Power RF-Capacitor with Finger Terminal (PEZ140)

2. Model: PEZ140

The capacitor is used for tank circuit,coupling,by-pass and feed circuit.

We manufacture and export the following all models.

High power ceramic capacitor technical parameters:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85ºC;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV or 1.5 times of rated voltage if the rated voltage>15KV.

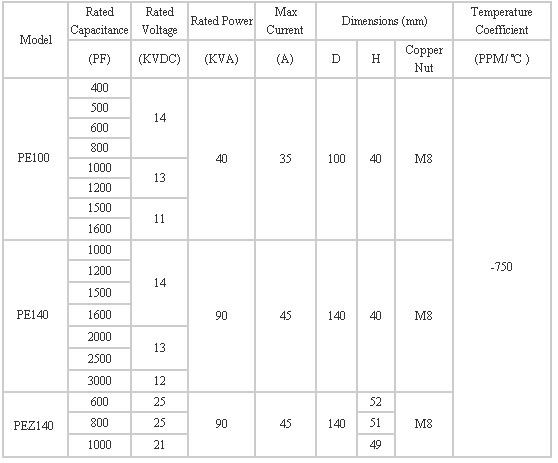

Prod Model:	PEZ140
Capacitance Quantity:	1000PF
Temperature Quotiety Regimentation:	(-750ppm/ºC)U
DC Voltage:	21kv
Rating Power:	90kVA
Diameter:	140mm
Hight:	49mm
Application:	Power
Type:	Ceramic Capacitor
Package Type:	Foam Packing
Capacitance:	1000PF

We are a skilled company and knowledgeable exporter for Electron tube, Electron valve, Ultra-high frequency electron tube, CO2 Laser power tube, Power grid tube, Ceramic vacuum tube, Electronic triode, Electronic tetrode, quadrode, pentode, Metal-ceramic transmitting tube, Broadcasting transmitter power tube, Microwave magnetron, Ceramic vacuum capacitor, Relay, Electronic components, and so on source.

Products are mainly used in high-frequency heating, plastic welding machine, Laser power supply, wood drying machine, radar scanning, RF system, Amplifier, radio transmitter, MRI and such equipments, widely applied in the textile and equipments, radio communications, medical, machining, plastics processing industries, and so on...And with over twenty years experience in export business. There is more than 480 staff, all kinds of 150 management engineers and technicians among them now. We have grown into a high efficient team to service and provide our customers with an extensive and high quality products range with competitive prices.
