| Prod Model: |
OF9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Circuit-Breaker Failure Protection |
| Color: |
White |
| .Rated Current: |
1-6A |
| Rated Frequency: |
50/60Hz |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
1 |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

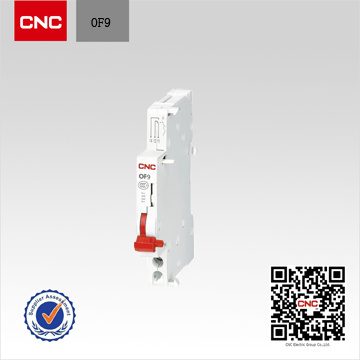

OF9 Auxiliary Contact
Feature
1. Species diversity
2. Widely used
3. ISO9001, ISO9004
Products Overview
OF9 Auxiliary contact is mainly used for the circuit of AC 50/60HZ, rated thermal
Current up to 6A, rated voltage up to 415V, or the circuit of DC rated voltage up to
130V. It's assembled with YCB9-63(H) MCB for instruction of remote circuit breaker.
The products meet the GB14048.5 and IEC60947-5-1 standard, and have CCC, CE
Certification.
Normal Working Condition
1. Ambient Temperature: -25~+60
2. Atmospheric conditions: Relative air humidity of installation location shall be less
Than 50% when the highest temperature is +40; Lower temperature allows a
Higher relative humidity. For example, 90% at +20, the monthly average
Maximum relative humidity shall be less than 90%, considering the gel on the
Surface which comes from temperature changes.
3. Altitude: Not higher than 2000m
4. Pollution Degree: 2
5. Installation Category: II, III
6. Installation: Embedded vertical standard rail mounting
Product Features
When the circuit breaker is not closed, auxiliary contact and normally closed contact
Are closed; When the breaker is closed, auxiliary contact and the circuit breaker are in
The on-off conversion, normally open contact is closed, the external signal are in
Simultaneous conversion.
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 500 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T, Paypal (extra 4% commission charge)
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment
Warranty:
1.6 months.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
We provide 1 year warranty.
If the item is defective, please notify us within 3 days of delivery.
All item please be returned in their original condition in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
|
Item |
Data |
Contact operating
current |
AC: Un=415V In=3A Un=240V In=6A
DC: Un=130V In=1A Un=48V In=2A Un=24V In=6A |
|
Dielectric Properties |
Auxiliary contact should bear 2000V,
1 min frequency voltage withstand test. |
|
Life |
The operating life of auxiliary contact
shall never be less than 5000 times. |
