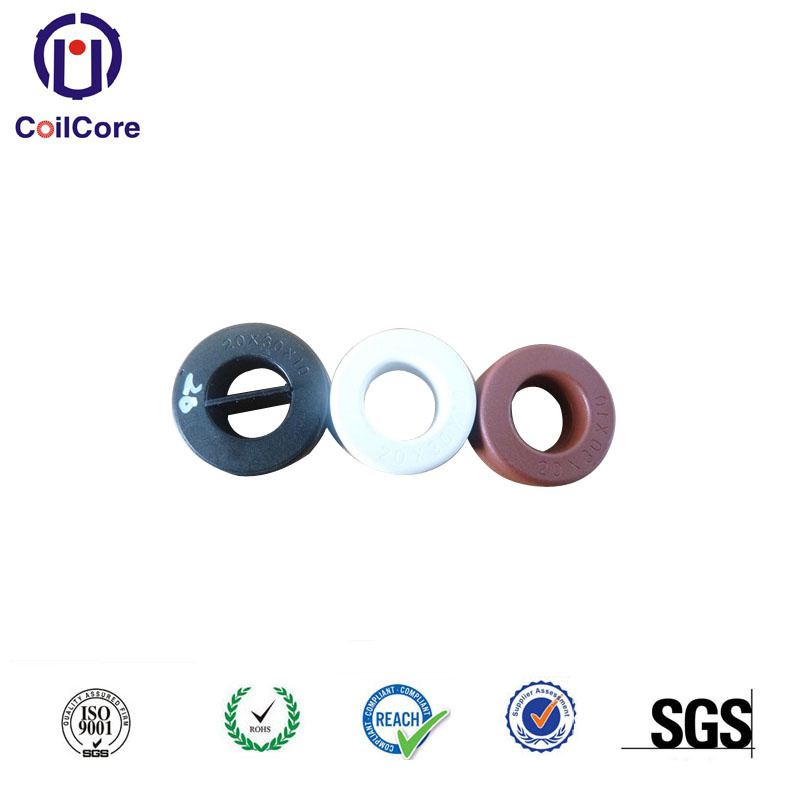

What's the feature of our High precision free sample nanocrystalline core, nanocrystalline toroidal core for current transformer?
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: > 50000
Permeability @ 100KHz: >10500
Curie temperature(ºC): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
What's the application of our High precision free sample nanocrystalline core, nanocrystalline toroidal core for current transformer?
EMC Filter
Switched mode power supply
Computer power supply
Communication and network power supply
Laser and X-ray power supply
Welding equipment and Electrical plating power supply
Solar energy equipment and Wind power generator
Household electrical appliance
Uninterruptable power supply (UPS)
Frequency converter
Inducted heating equipment
high-speed railway power supplies
P/N | core dimension od×id×h mm | Limit dimension | G (g) | Ae cm2 | le cm | I eff mA/ | 10KHz min | 100KHz min | ref. P/N |
OD | ID | H | AL/μH | μ(K) | AL/μH | μ(K) |
NL100705G | 10×6.5×5 | 11.8 | 5.1 | 6.8 | 1.2 | 0.07 | 2.60 | 5.4 | 19.1 | 65 | 4.8 | 14.5 | ~W914 |
NL120805G | 12×8×5 | 14.4 | 6.4 | 7.2 | 2.0 | 0.08 | 3.14 | 7.0 | 20.0 | 65 | | | ~W902 |
NL161008G | 16×10×8 | 17.8 | 8.6 | 10.0 | 5.6 | 0.19 | 4.08 | 10 | 34.0 | 60 | 8.0 | 14.0 | ~W403 |
NL201208G | 20×12×8 | 22.5 | 10.0 | 10.0 | 9.7 | 0.25 | 5.03 | 10 | 40.0 | 64 | 9.3 | 15.0 | ~W409 |
NL201210G | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 50.0 | 65 | 11.7 | 15.0 | |
NL201210GL | 20×12×10 | 22.5 | 10.0 | 12.5 | 11.5 | 0.31 | 5.03 | 10 | 22-33 | 28-42 | | | |
NL211508GC | 21×15×8 | 23.6 | 12.1 | 11.4 | 7.5 | 0.19 | 5.65 | 10 | 25.0 | 60 | 5.8 | 14.0 | |
NL252010G | 25×20×10 | 27.6 | 17.4 | 12.8 | 10.4 | 0.20 | 7.07 | 15 | 21.3 | 62 | 5.5 | 15.5 | W523 |
NL261910GC | 26×19×10 | 28.5 | 16.2 | 13.2 | 14.1 | 0.27 | 7.06 | 15 | 29.0 | 60 | 6.8 | 14.0 | |
NL261610G | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 48.0 | 65 | 11.5 | 15.5 | ~W380 |
NL261610GL | 26×16×10 | 28.0 | 13.7 | 12.5 | 18.0 | 0.39 | 6.60 | 15 | 21-32 | 28-42 | | | |
NL302010GC | 30×20×10 | 33.0 | 17.4 | 13.1 | 28.0 | 0.71 | 8.17 | 20 | 46.0 | 64 | 10.5 | 14.6 | ~W423 |
NL322010GLC | 32×20×10 | 34.5 | 17.7 | 12.5 | 28.0 | 0.71 | 8.17 | 20 | 20-30 | 28-42 | | | |
NL322015G | 32×20×15 | 34.5 | 17.7 | 18.5 | 42.0 | 0.71 | 8.17 | 20 | 70.0 | 65 | 14.0 | 13.0 | FT-3KM N3320E |
NL403215G | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 36.5 | 70 | 8.34 | 16.0 | W422 |
NL403215GL | 40×32×15 | 43.1 | 28.7 | 18.5 | 37.9 | 0.46 | 11.3 | 30 | 15-22 | 28-42 | | | |
NL402510GC | 40×25×10 | 43.2 | 22.6 | 13.5 | 43.6 | 0.59 | 10.2 | 30 | 43.0 | 62 | 10.0 | 14.0 | |
NL402515G | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 76.0 | 70 | 16.0 | 15.0 | W424 |
NL402515GL | 40×25×15 | 43.1 | 22.5 | 18.5 | 64.2 | 0.86 | 10.2 | 30 | 31-46 | 28-42 | | | |
NL462715GC | 46×27×15 | 48.4 | 24.4 | 18.5 | 95 | 1.11 | 11.5 | 30 | 60.0 | 50 | 17.0 | 14.0 | FT-3KM F4627 |
NL462725G | 46×27×25 | 48.4 | 24.4 | 18.5 | 164 | 1.78 | 11.5 | 30 | 90.0 | 45 | 26.0 | 13.0 | FT-3KM F4627H |
NL503215G | 50×32×15 | 53.5 | 29.0 | 18.6 | 98 | 1.10 | 12.9 | 30 | 50.0 | 50 | | | |
NL504020GC | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 34.0 | 50 | 9.5 | 14.0 | W516 |
NL504020GL | 50×40×20 | 53.5 | 36.3 | 23.4 | 79 | 0.76 | 14.1 | 30 | 20-30 | 28-42 | 7.5 | 11.0 | ~W565 |
NL504025GC | 50×40×25 | 53.5 | 36.3 | 28.4 | 95 | 0.95 | 14.1 | 30 | 45.0 | 52 | 11.0 | 12.6 | |
NL523618C | 52×36×18 | 56.0 | 32.0 | 23.4 | 110 | 1.12 | 13.8 | 30 | 53.0 | 52 | 13.0 | 12.7 | |
NL523625C | 52×36×25 | 56.0 | 32.0 | 28.4 | 150 | 1.55 | 13.8 | 30 | 70.0 | 50 | 17.0 | 12.0 | |
NL533820GC | 52×36×20 | 57.0 | 34.0 | 24.5 | 122 | 1.17 | 14.3 | 30 | 62.0 | 55 | 14.0 | 14.0 | |
NL655025G | 65×50×25 | 68.0 | 46.5 | 28.6 | 190 | 1.46 | 18.0 | 40 | 50.0 | 50 | | | ~W517 |
NL654030C | 65×40×30 | 69.0 | 36.0 | 35.0 | 350 | 2.93 | 16.5 | 40 | 110.0 | 50 | 25.0 | 11.0 | |
NL805020G | 80×50×20 | 86.0 | 44.7 | 25.7 | 342 | 2.28 | 20.4 | 50 | 72.0 | 50 | 18.0 | 13.0 | W531 |
NL906020G | 90×60×20 | 95.4 | 56.1 | 24.7 | 395 | 2.28 | 23.6 | 50 | 61.0 | 50 | | | W518 |
NL1037530G | 103×75×30 | 109 | 70.0 | 35.0 | 670 | 3.27 | 28.0 | 60 | 74.0 | 50 | | | ~W468 |
NL1008020G | 100×80×20 | 104 | 76.0 | 20.0 | 320 | 1.58 | 28.3 | 80 | 31.0 | 45 | 8.4 | 12.0 | FT-3KM F10080G |
NL1208030GL | 120×80×30 | 125 | 75.0 | 25.0 | 1100 | 4.80 | 31.4 | 80 | 52-79 | 28-42 | 22.0 | 11.5 | |
NL13010030G | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 60.0 | 50 | 12.4 | 13.0 | W630 |
NL13010030GL | 130×100×30 | 135 | 95.0 | 35.0 | 910 | 3.51 | 36.1 | 80 | 34-52 | 28-42 | 11.0 | 11.5 | |
NL17012025G | 170×120×25 | 178 | 112.0 | 32.0 | 1600 | 4.87 | 45.5 | 80 | 68.0 | 50 | | | |
