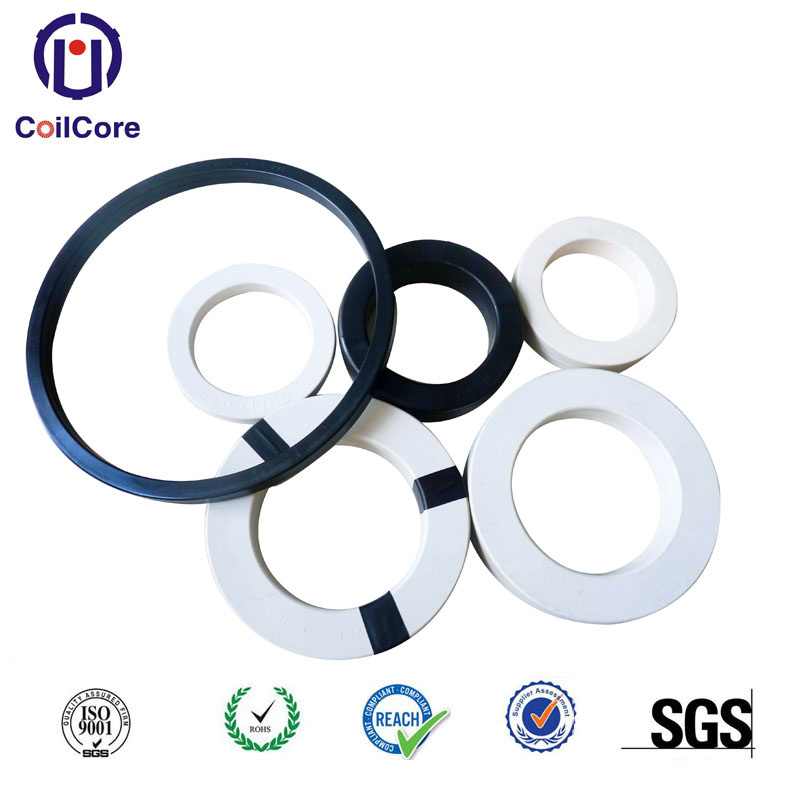

Soft Magnetic Nanocrystalline Core Big Core Use in Power

Name: Soft Magnetic Nanocrystalline Core Big Core Use in Power
Brand: all-electronics-online.com
SKU: 780148085
Availability: InStock
Rating: 4.7 (69 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

There are some information of the product:

High frequency low loss, rapid quenching soft magnetism crystalline alloy.

Characteristics:Made of Fe-based amorphous soft magnetic material, high saturation magnetic flux density, wide range of constant, low loss at high frequency, low leakage magnetic pole, frequency characteristics, excellent temperature characteristics.

Main applications:Car audio filter inductance, differential-made inductors for EMC anti-jamming, charging circuit output smoothing filter and energy storage inductors.

Material characteristics:

Physical properties

Saturation magnetization(Bs)	1.25T	Saturation magnetostrictive coefficient(λs)	<2×10-6
Curie temperature(Tc)	560ºC	Density(d)	7.3g/cm3
Crystallization temperature(Tx)	510ºC	Resistivity(ρ)	130μΩ-cm
Hardness(Hv)	800	Continuous operating temperature range	-55~130ºC

Magnetic properties

Annealing method	Non-magnetic annealing
Initial permeability	>150,000
Maximum permeability	>600,000
Residual magnetic flux density	0.6T
Coercivity	<0.8A/m
Iron loss P(20kHz,0.5T)	<25W/kg
Iron loss P(100kHz,0.3T)	<150W/kg
Iron loss change rate (-55ºC~125ºC)	<15%

Standard model

Width(mm)	Thickness(μm)
5	30±2
10	30±2
15	30±2
20	30±2
30	30±2
Other columns dimensions available according to requirements.(5~50mm)

Prod Model:	CORE AM ID/ODXH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Saturation Magnetic Induction:	Low Core Loss
Application:	Audio
Type:	Voltage Transformer

Guangzhou Coilcore Electronic Technology Co., Ltd founded in 1995, as a leading manufactures and supplier of R&D, manufacture amorphous core, Nanocrystalline core, CT (Current Transformer), Inductors, and Transformers, Our range comprise of:

1. Common Mode Filter Chokes

2. Current Transformer

3. Differential Mode Chokes

4. Automotive Chokes (for car audio)

5. Magnetic Amplifier

6. PFC Chokes

7. ISDN Splitter

8. GFCI (Ground-Fault Circuit Interrupters)

9. ELCB (Earth Leakage Circuit Breaker)

10. ALCI(Appliance Leakage-Current Interrupters)

11. Core and Current Transformer for energy meters (Watt hour -meters )

We have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufactory, we are the source. Our R&D team, LED by experienced professors and senior engineers, are dedicated themselves to develop new products to satisfy customers' requirements about the specification and package of the needed goods.

Based on "Faith, Innovation, Solidarity, Enterprise", following the policy of "persisting in technique innovation and scientific management, best quality, respectable customer", we are always trying to contribute to customers.
