High Precision of Ratio Customised Wide Measuring Range Current Probe

Name: High Precision of Ratio Customised Wide Measuring Range Current Probe
Brand: all-electronics-online.com
SKU: 721686712
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	US $ 10/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

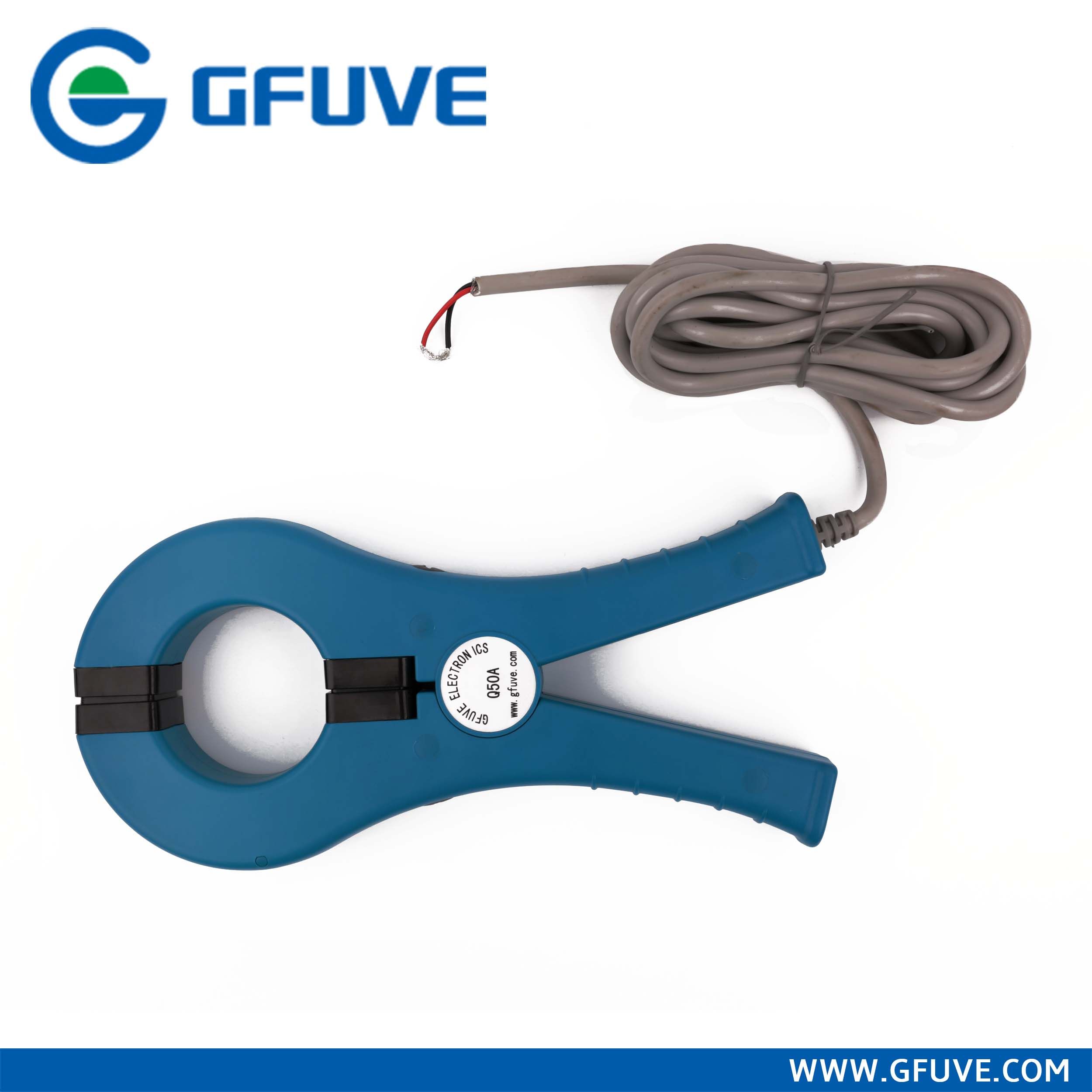

The model Q50A current probe is designed for fast and easy measure the current in industrial and power environment, it has wide range of current measurement.

Aplicaciones	Caracteristicas
1. Calibrador de medidor de energía eléctrica (in situ) 2. Comprobador de resistencia de tierra tipo pinza doble 3. Doble tipo de pinza de fase volt-amperímetro 4. Multi-medidor digital 5. Medidor de energía multi-función 6. Osciloscopio 7. Análisis de la calidad de la energía 8. Instrumentos combinados 9. Instrumento de calibración en el lugar	1. Rango de medición de 1mA a 1000A AC 2. Tamaño pequeño y compacto 3. Diseño ergonómico mejorado y fácil manejo 4. Cambio de fase bajo para la medida de energía 5. Con capacidad de carga ≤4Ω; Cuando la salida 1A, es 0.1Ω; Cuando la salida 5A, es 2.5VA. 6. Modelo del producto: Salida del plomo (2.5m)

MORE INFORMATION PLEASE CLICK OUR WEBSITE: http://gfuve.com/

Prod Model:	Q50A
Ratio:	1000:1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%, 0.5%
Primary Current:	0 - 1000A AC
Secondary Current:	0 - 5A AC (Customized)
Max. Cont. Input Current:	1200A
Over Voltage Category:	Cat III 600V
Output Signal:	500mA,1A,5A AC at Nominal Input Current
Frequency Range:	40Hz-2000Hz
Output:	2.5 Meter Cable with D01 Connector
Max. Voltage Not Insulated Conductors:	600 V
Certification:	IEC60044-1

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
