High Quality AC Dual Capacitor Cbb65 20UF

Name: High Quality AC Dual Capacitor Cbb65 20UF
Brand: all-electronics-online.com
SKU: 730055522
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 1.87/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

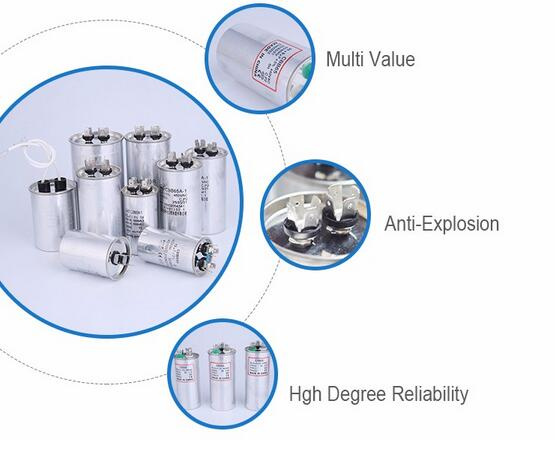

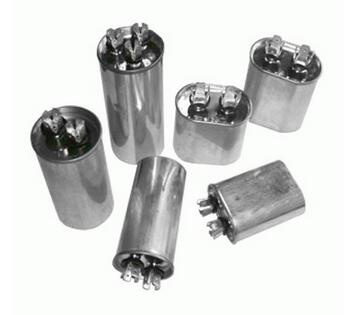

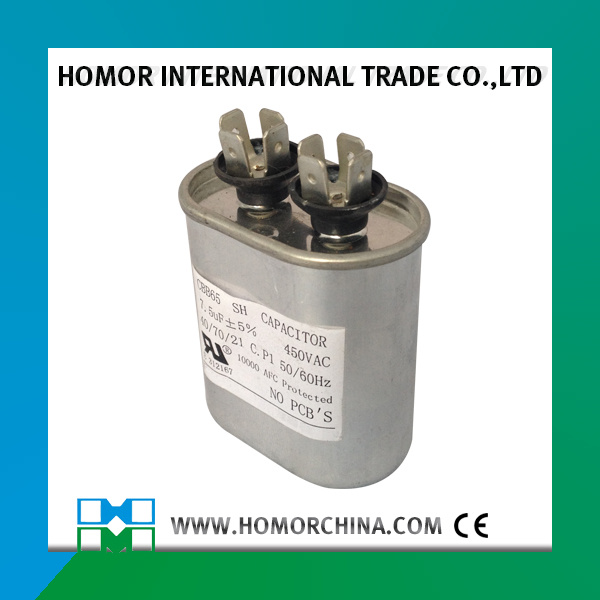

CBB65 Capacitor Introduction:

CBB65 type capacitor sealed in metal case, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit, long working life, with inner anti-explosive device and safety reliability. This type capacitor is suitable used in the frequency of 50hz - 60hz, voltage from 250v - 500v single phase ac motors, refrigerator, air conditioner, house hold appliances, power supply etc. for starting and running.

Characteristics:
1- Product has low loss, high insulation resistance, good self-healing properties.
2- Stable, resistant to impact current, overload capacity and other characteristics
3- Equipped with an internal explosion devices, use of safe and reliable.
4- widelu used in air conditioners, refrigerators, electrical and lighting and other start-up and operation

Main Technical Data:

1	Implemented standard	GB/T3667 1-2005 EN60252
2	Ambient Temperature	40/085/21;40/070/21
3	Rated Voltage	250~500VAC
4	Test Voltage	T-T:2UR t:60s T-C:2000VAC t:60s
5	Capacitance Tolerance	±5%
6	Dissipation Factor	Tg δ≤0.002 (50Hz,60 Hz 20ºC)
7	Class of safety protection	P₂

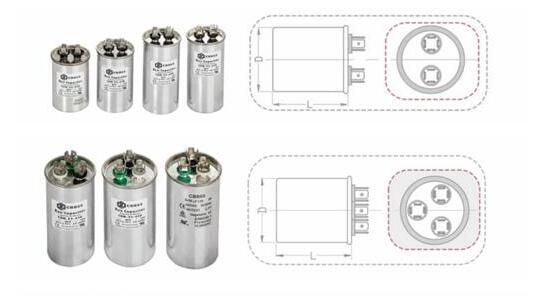

Overall size:

Rated capacity	Rated voltage
	200-300VAC		400-500VAC
	D*L	L1	D*L	L1
5	40*55	16	40*55	16
10	40*55		40*65
15	40*65		40*75
20	40*65		50*65	18-20
25	40*75		50*75
30	40*75		50*85
35	45*75	18-20	50*90	18-20
40	45*75		50*100
45	45*85		50*100
50	50*75		50*100
60	50*85		50*125
69	50*100		55*125
70	50*100		55*125
80	50*100		60*125
90	50*100		60*135
100	50*125		65*125

Company Profile :

Certification:

Prod Model:	CBB65
Operating Temp:	-40/70/21
Color:	Silver
Safety Class:	P0,P1,P2
Executing Standards:	GB/T3667.1-2005, IEC60252-12001
Type:	Polypropylene Capacitor
Application:	Air Conditioner
Package Type:	Through Hole
Capacitance:	50-100uf

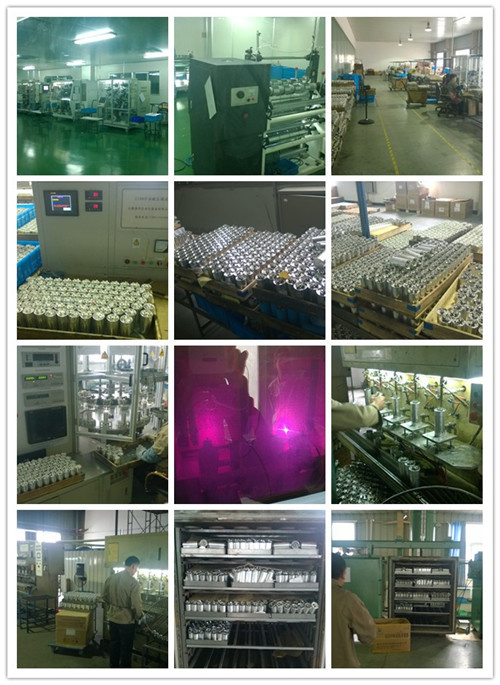

HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.

HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.

HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
