| Prod Model: |
VT200W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Free Tracking Platform: |
Yes |
| Fuel Monitoring: |
Yes |
| Sos Button: |
Yes |
| Stop The Car: |
Yes |
| Live Tracking: |
Yes |
| Data Logger: |
2MB |
| Active RFID: |
Yes |
| Built-in Battery: |
Yes |
| External Antennna: |
Yes |
| I/O: |
2 Inputs, 2 Outputs |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Tracker |
| Port Number: |
GPS Tracking Device |
| Model: |
GPS Tracker Vt200 |
| Screen Size: |
No screen |
| Carrier Frequency: |
GSM 850/900/1800/1900 MHz |
| Chip: |
Ublox |
| Brand: |
Topshine |
| Certification: |
CE/RoHS |
Product Description

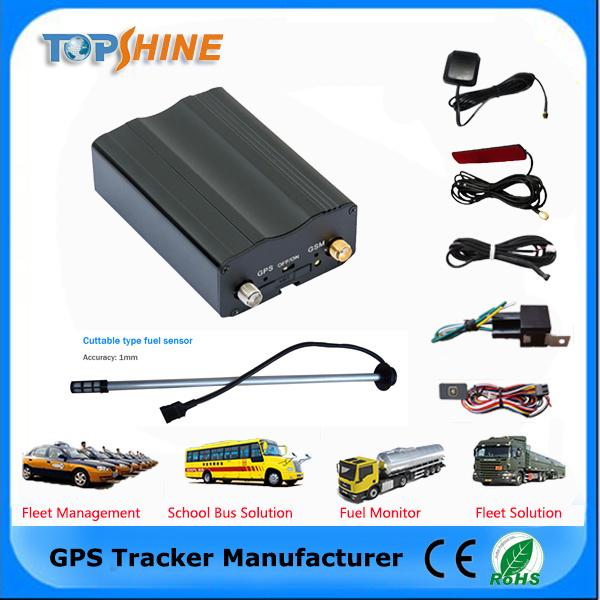

High Quality Free Tracking Software Mini GPS Car Tracker (VT200) GPS tracker VT200W is advanced terminal with GPS positioning and GSM connectivity, which is able to get device coordinates and other data and transfer them via GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. So you can track your remote objects (trucks, cars etc.) quickly and easily.
In case of losing connection GPS tracker can store more than 10,000 records, and once the connection is established the device will send stored data via GPRS. So you won't lose your data(coordinates, sensors data and etc.)
VT200 also plus a newest car alarm solution --- Smart phone Reader. This is as RFID reader, it can connect to your phone as detector. When you with phone leaving the car, the system will be armed automatically, if someone opens the door/ignition/moving your car, system will send alert, you will get alert notification on your phone, immobilizer scenario which enables to start engine only after reading your phone. When you walk close to the car and your phone is recogized, system will be disarmed.
1. Applications
* Vehicle Real Time Tracking
* Vehicle Security/Anti-Hijack
* Fleet Management
2. Features & Functions
* GPS coordinates and I/O data acquisition;
* Real time tracking;
* Smart algorithm of data acquisition (time, distance, angle, ignition and event based);
* Sending acquired data via GPRS (TCP/IP and UDP/IP protocols);
* 10,000 records saving into flash memory;
* Events on I/O detecting and sending via GPRS or SMS;
* One configuration file enables convenient configureation;
* Multi geofence zones (rectangular or circle);
* Deep sleep mode(saving vehicle's accumulator);
* Built-in 650 mA battery;
* Advanced overspeeding detection;
* Immobilizer scenario which enables to start engine only after reading smart phone reader;
* Real time tracking via the web-platform
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* SOS Panic button
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* I/O: 2 Inputs, 2 Outputs, 1 Analog Input
* Analog input for Fuel sensor detecting/monitoring (optional)
* Cut extetnal power alert
3. Specifications
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -161dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input
1 Analog Input Detection
2 Output
1 USB port |
Our ServiceOur price comes with high quality products,lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.With purchase of our GPS tracker, there is no additional or hidden cost to use our tracking platform. We can creat free user name and password for you to monitor various vehicles.
Why choose us
1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.

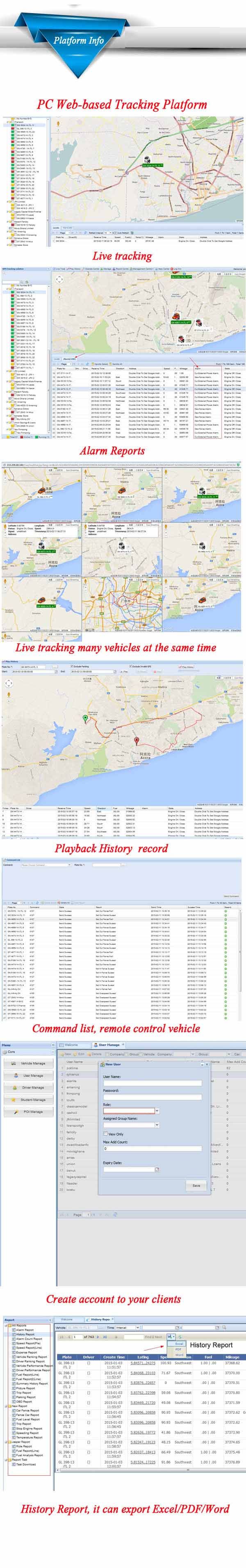

2.Provide two free tracking platform, one is for PC ,other is for moblie
phone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:
PC : www.track-car.com
Mobile : www.track-car.com/phone.jsp
user name: hongkong
Password: 123
3. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.
4. We are good at customization job, if you have any good idea in gps tracker, we will try to achieve for you.
