| Prod Model: |
YCH6-125 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Overcurrent Protection |
| Color: |
White |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Poles Number: |
1 |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

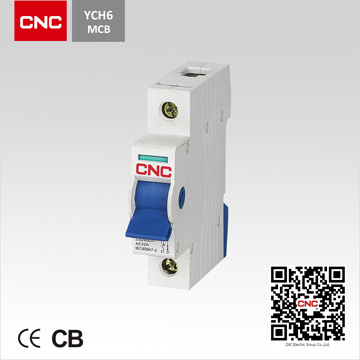

Isolating Switch (YCH6-125)
1. HS Code: 85362000
2. Standard: IEC 60898, NEMA AB1
3. Number of pole: 1, 2, 3, 4Pole
4. Rated voltage: 250/415V
5. Rated current: 16, 20, 32, 40, 63, 90, 100
6. Breaking Capacity: 10KA
7. Electrical endurance: 10, 000 times
Productivity: 20, 000PCS/DAY
Min. Order: 5, 000PCS
Transportation: By sea or air
General
1. Making and breaking under load condition
2. Providing safety isolation for terminal distribution system
3. Used in residential building, non-residential building
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory; 4. We have completely sales service system, ensure every detail is going smooth. 5. We have new designed products each year by our R&D Dpartment. 6. Perfect testing system ensure each product is qualified. 7. Want know more of us? Waiting for your inquiry.
How to Order?
1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 500 sets orders.
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. We accept Western Union and T/T, Paypal (extra 4% commission charge)
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment
Warranty:
1.6 months.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
We provide 1 year warranty.
If the item is defective, please notify us within 3 days of delivery.
All item please be returned in their original condition in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
|
Type |
Standard |
|
lEC/EN 60947-3 |
Electrical
features |
Rated current In |
A |
32,63,80,100,125 |
|
Poles |
P |
1,2,3,4 |
|
Rated voltage Ue |
V |
230/400 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated short-time withstand current Icw |
|
12Ie,1s |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
4000 |
|
Dielectric test voltage at ind. Freq. for 1 min |
kV |
2.5 |
|
Rated making and breaking capacity |
|
3Ie, 1.05Ue, cosφ=0.65 |
|
Rated short circuit making capacity |
|
20Ie, t=0.1s |
|
Pollution degree |
|
2 |
|
Utilization category |
|
AC-22A |
Mechanical
features |
Electrical life |
t |
1500 |
|
Mechanical life |
t |
8500 |
|
Protection degree |
|
IP20 |
|
Ambient temperature (with daily average≤35) |
|
-5~+40 |
|
Installation |
Terminal size top/bottom for cable |
mm² |
50 |
|
AWG |
18-1/0 |
|
Connection |
|
Connection From top and bottom |
