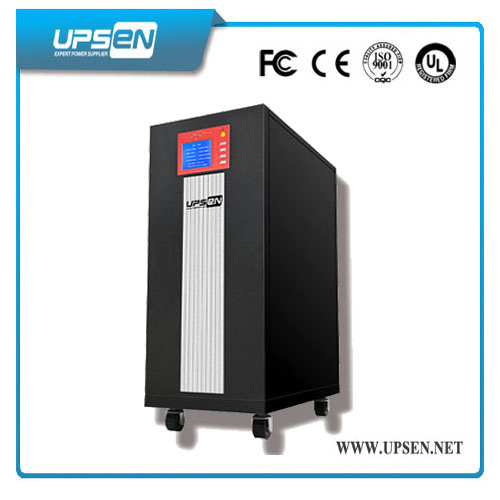

High Quality Low Frequency Online UPS with Double CPU control
Model: Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)
Key Features
1:Double CPU control
2:Advanced DSP digital control technology
3:Large-screen LCD + LED in Chinese and English display
4:Pure sine wave output, true on-line dual conversion design
5:Adopt 4 layer PCB, and SMD technology.
6:High efficiency IGBT (Insulated Gate Bipolar Transistor) inverter technology
7:Larger LCD display
8:Battery can be sharing
9:Up to 8 units in parallel
10:Intelligent management of battery charging and discharging
11:Wide input voltage range
12:High output power factor
13:Strong environmental adaptability
14:Advanced battery management
15:N+X parallel redundancy
16:High efficiency IGBT inverter technology
17:EPO function
18:Full protection against over-discharge, overcharge, over load
Application
Large-medium computer data center,DDC (Direct Digital Control System), Photo Printer, Traffic Lights, Railway Control Room, Army, industrial process and other mission-critical equipment
Technical Specification
| High Efficiency Strar Series HE33 10K-200K |
| Model | HE33 Series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | Nominal voltage | 220V/380, 230/400, 240/415V |
| Voltage Tolerance | 380/400/415V±25% |
| Frequency | 50Hz/60Hz±5% |
Permitted Frequency
Tolerance |
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start | 0-100% in 30" (selectable) |
| Input power factor | 0.95(with input filter) |
| Standard features | Back Feed protection separable bypass line |
| | Phase | Three phase +N+G |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability | ±5% in 19ms |
| Distortion | Linear load <3%, non linear load<5% |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Crest factor | 3:01 |
| Battery voltage | Standard battery voltage | 384V | 432V | 480V |
| Floating charge | 432V | 486V | 540 |
| Terminal voltage | 336V | 378V | 420V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge
Current |
28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED,LCD display |
| Remote signalling | Voltage-free contacts |
| Remote commands | EPO and bypass |
Communication Port
(Optional) |
double RS232 + remote contacts + 2 communication interface slots |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfyany customers' special requests. 6: Free OEM & ODM Service
7: Competitive price, quality and mature products
