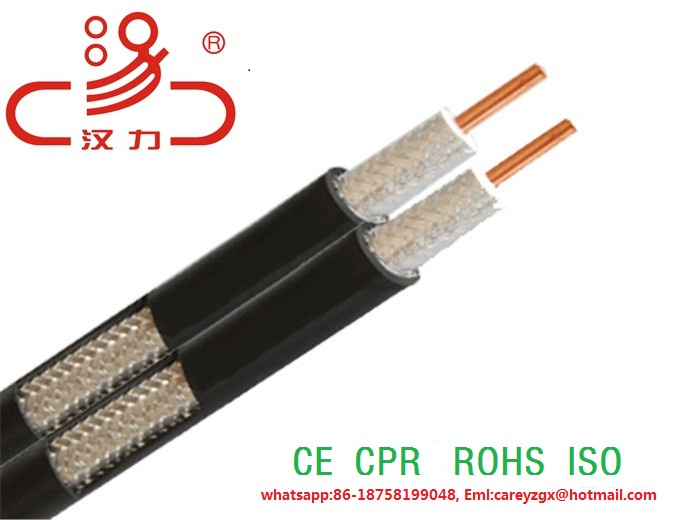

Rg11/Rg59/RG6 Coaxial Cable (CE RoHS UL ISO9001)
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1.Specifications:
1) RG6 Coaxial Cable 75ohm Double shield(standard)
1.02mm BC/CCS Conductor + 4.57mm PE Foam + Al Foil + CCA/BC/Alloy Braiding + 6.9mm PVC Jacket
2) RG6 Coaxial Cable 75ohm Tri-shield
1.02mm BC/CCS Conductor + 4.57mm PE Foam + Bonded Al Foil + CCA/BC/Alloy Braiding + Al Foil + 6.9mm PVC Jacket
3) RG6 Coaxial Cable 75ohm Quad shielded
1.02mm BC Conductor + 4.57mm PE Foam + Bonded-Al Foil + CCA/BC/Alloy Braiding + A Foil + CCA/BC/Alloy Braiding + 7.3mm PVC Jacket
4) Customers'specifications are welcomed
2. Product Description:
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available
3.Electrical characteristics
| @ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
| 5 MHz | 0.58 dB | 2.65 dB |
| 55 MHz | 1.60 dB | 5.25 dB |
| 83 MHz | 1.95 dB | 6.40 dB |
| 187 MHz | 2.85 dB | 9.35 dB |
| 211 MHz | 3.05 dB | 10.00 dB |
| 250 MHz | 3.30 dB | 10.82 dB |
| 300 MHz | 3.55 dB | 11.64 dB |
| 350 MHz | 3.85 dB | 12.63 dB |
| 400 MHz | 4.15 dB | 13.61 dB |
| 450 MHz | 4.40 dB | 14.43 dB |
| 500 MHz | 4.66 dB | 15.29 dB |
| 550 MHz | 4.90 dB | 16.08 dB |
| 600 MHz | 5.10 dB | 16.73 dB |
| 750 MHz | 5.65 dB | 18.54 dB |
| 865 MHz | 6.10 dB | 20.01 dB |
| 1000 MHz | 6.55 dB | 21.49 dB |
4. Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.
5. Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients'request
