Rg59 Coaxial+2c Power Cable/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

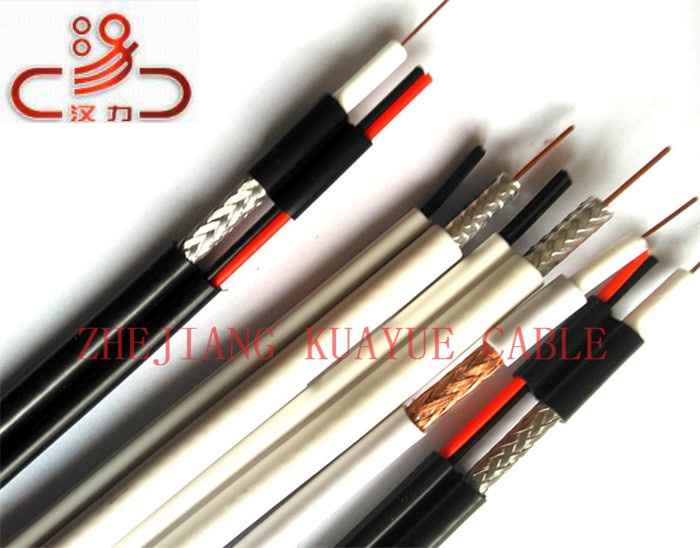

RG59 Coaxial+2c power cable
ConstructionHigh quality & competitive priceDual CTF100 with CE
1. Inner conductor: 20AWG Cu /CCS/CCA
2. Inner insulation: . FPE, SPE
3. Foil Shield: Un-bonded, Bonded, Double bonded, double un-bonded Aluminum Foil, Copper foil, Copper Plastic Foil Available
4. Braid layer: Braiding Shield: Al, BC, TC, CCA, CCS Available
Wire Diameter: 0.10, 0.11, 0.12, 0.13, 0.14, 0.15, 0.16mm Available
Coverage: 30%, 40%, 50%, 60%, 80% Available
5. PVC Jacket: : UV, Flame, Water retardant, LSZH, LSLH Available

Dual CTF100 Coaxial Cable 75ohm sample:
1.2*(1.0Cu+4.60FPE+CU Foil+64/0.12CCA(30.8)+6.6*13.7 PVC) LSF Black RoHS
2. OEM/, Any specification can be designed according to your requirement.

Electrical & Mechanical Characteristics

Impedance	75±5Ohm
Nominal capacitance	54PF/m
Velocity of propagation	82%
Insulation resistance	>5000Mohm. Km
Inner conductor resistance	23.1Ohm/Km
Outer conductor resistance	31Ohm/Km
Operating temperature range	-30°C-+70°C
Cable weight(approx. )	43Kg/Km

RG59 Coaxial+2c power cable
Attenuation

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100FT)
50	5	1.5
100	6.4	1.96
200	9.2	2.8
500	14.5	4.4
600	15.9	4.9
800	17.7	5.4
1000	21.9	6.7
1350	24.9	7.6
1750	29	8.8
2050	33.1	10.1
2400	36.4	11.1

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
