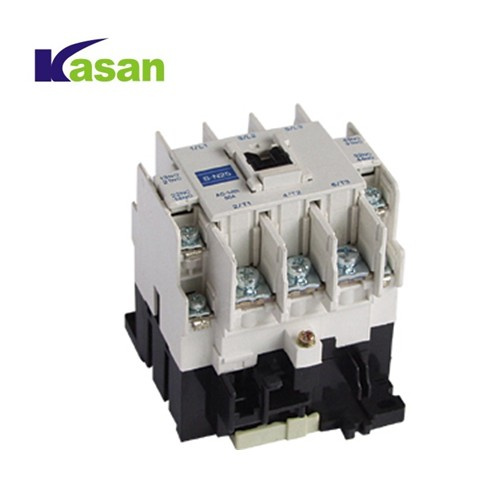

High Quality S-N10 Magnetic AC Contactors

Name: High Quality S-N10 Magnetic AC Contactors
Brand: all-electronics-online.com
SKU: 400035531
Availability: InStock
Rating: 4.5 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electricity Type.:	AC
Size:	Miniature
Usage:	Car Relay, Household Appliances Relay, Communication Relay, Lathe Relay

Product Description

S-N Mitsubishi type AC Contactor

AC Contactor Mitsubishi series:

Mitsubishi series AC contactor are suitable in electrical system with AC 50/60HZ, rated operational voltage up to 660V, In AC-3 usage, rated operational current up to 750A to make or break remote motors of system. And for frequent starting and controlling the motor. After combined with mechanical interlocking device, it is convertible continue-actor for controlling, starting, breaking and reversing of the motor. The products comply with IEC60947-4.

S-N Series AC contactor specification

Type	Capacity of 3 phase squirrel-cage motor AC-3								Rated heating Current 1th(A)
	Rated Power(KW)				Rated Operating Current (A)
	220V-240V	380V-440V	550V	660V	220V-240V	380V-440V	550V	660V
S-N10	2.5	4.0	4.0	4.0	11	9	7	5	20
S-N11	3.5	5.5	5.5	5.5	13	12	9	7	20
S-N12	3.5	5.5	5.5	5.5	13	12	9	7	20
S-N20	5.5	11	11	7.5	22	22	17	9	32
S-N21	5.5	11	11	7.5	22	22	17	9	32
S-N25	8.5	14	14	14	30	30	12	12	40
S-N35	12	20	20	20	40	40	17	17	40

Type	S-N10	S-N11	S-N12	S-N18	S-N20	S-N21	S-N25	S-N35	S-N50	S-N65	S-N80	S-N95
Rated operating current in220V(A)	11	13	13	18	22	22	30	40	50	65	85	105
Rated operating current in380V(A)	9	12	12	16	22	22	30	40	50	62	85	85
Rated operating current in660V(A)	5	7	7	9	9	9	12	17	26	35	52	65
Controlled motor at 220V	2.5	3.5	3.5	4	5.5	5.5	7.5	11	15	18.5	22	30
Power under at380V	4	5.5	5.5	6	11	11	15	18.5	22	30	45	55
AC-3(KW) at660V	4	5.5	5.5	5.5	7.5	7.5	11	15	22	30	45	55
Coil consumption at rated coil voltage	3.5	3.5	3.5	5.3	5.3	5.3	5.3	5.3	2.8	2.8	3.3	3.3
Rated frequency of opertation Ops/hr	1800									1200
Electric life under AC-3	1x10 6

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
