| Prod Model: |
ZVF600-P5R5T4M |
| Color: |
Balck |
| Model: |
Zvf600-P5r5t4m |
| Input Voltage: |
Three Phase 380V.440V |
| Input Frequency: |
50/60Hz |
| Output Voltage: |
0-Three Phase Input Voltage |
| Output Frequency: |
0-600Hz |
| OEM: |
Yes |
| Package: |
Package Box or Wooden Box |
| Protection: |
IP54 |
| Altitude: |
Below 1000m |
| Application: |
Single-phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PAM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Chziri |
Product Description

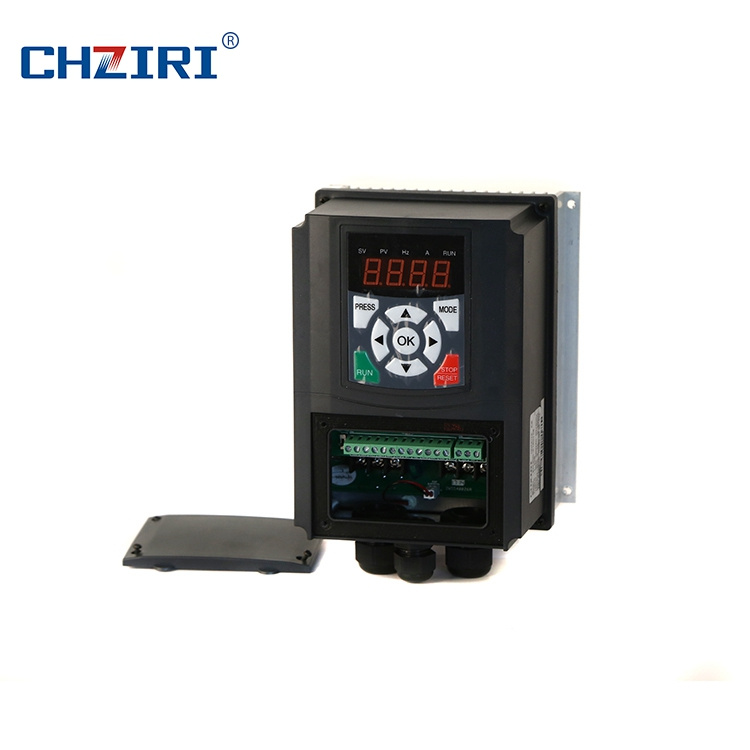

ZVF600 Series Pump Inverter
Main Features
ZVF600 series pump control inverter is the company's own research and development of high degree protection pump inverter, the shell is dustproof and splash water, can be installed different brand water pump motor junction box. Adapt to a variety of sensor signals, simple operation, high reliability, low noise, can be individually controlled a pump and can also be more on-line operation.
Product Features
1.high protection IP54 , all-round anti-corrosion anti-splash water
2.High performance V / F and vector control
3.Water supply special design, water shortage protection, water coming start automatically
4. Single pump constant pressure, main and auxiliary pump single-line networking, automatic control
5.Antifreeze, rust-proof function, more humane protection for protecting pump
6. One-button pressure setting, quick parameter view
7.Dedicated water supply function and fault protection function.
8. professional heat-resistant design, small power, without fan can be more reliable
9. Directly installed on the motor, no need for the cabinet, simple and convenient to operate .
Pump Inverter Outline Dimension(Unit:mm)
You have to clarify the following questions before you slection the model .1. Please let us know the input voltage is Single phase 220V or three phase 380V .
2.Please let us know the power of the pumps .
ZVF600 Pump Frequency Inverter Model Selection Guide | Inverter Model | Voltage(V) | Power(kW) | Output Current(A) | Figure |
| ZVF600-P0R7S2/T2M | 220 | 0.75 | 5 | Fig.1 |
| ZVF600-P1R5S2/T2M | 220 | 1.5 | 7.5 |
| ZVF600-P2R2S2/T2M | 220 | 2.2 | 10 |
| ZVF600-P3R7T2M | 220 | 3.7 | 16 | Fig.2 |
| ZVF600-P0R7T4M | 380 | 0.75 | 2.5 | Fig.1 |
| ZVF600-P1R5T4M | 380 | 1.5 | 3.7 |
| ZVF600-P2R2T4M | 380 | 2.2 | 5 |
| ZVF600-P3R0T4M | 380 | 3.0 | 6.8 |
| ZVF600-P4R0T4M | 380 | 4.0 | 9.0 | Fig.2 |
| ZVF600-P5R5T4M | 380 | 5.5 | 13 |
| ZVF600-P7R5T4M | 380 | 7.5 | 17 |
CHZIRI Application
Constant water supply , fire fighting apparatus, Environmental protection equipment, Environmental Engineering, water treatment equipment and ect.
Technical Indications | Item | Item description |
| Input | Rated voltage& Frequency | Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz |
| Allowable Voltage range | Voltage fluctuate range:-20%~+20%
Voltage unbalance rate:<3%;Frequency fluctuation:≤5% |
| Output | Rated voltage | three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz |
| Basic Function | Frequency accuracy | Digital setting::Max. Frequency×±0.01%
Analog setting:Max. Frequency×±0.2% |
| Frequency resolution | Digital setting :0.01HZ;
Analog setting :Max. Frequency x0.1%. |
| Starting frequency | 0.00~50.00Hz |
Acceleration/deceleration
time | 0.1~3600 can be set in sequence . |
| Carrier frequency | 1.0~15.0KHz |
| V/F curve | 1:linear curve;2:quadratic;3:user defined V/F curve |
| Automatic energy-saving operation | Auto optimize V/F curve according to the load changes to realize the energy saving operation . |
| Built-in PID | This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control . |
| Operating command | Operation panel control ,external terminal control and COM control |
| Frequency setting | Keypad potentiometer setting , operation panel up down setting,. analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on. |
| Input Signal | Forward/Reverse signal,multi-speed signal , fault signal ,
reset signal etc |
| Output Signal | Programmable relay |
| Other Function | Over voltage alarm ,Rotation speed tracking, Momentary power loss restart ,Frequency upper/lower limiting, Acceleration/ Deceleration mode can be adjusted ,Multi-speed/ program running,Fault auto reset,RS485 serial communication . |
| Protection Function | Input phase loss protection, Over current protection ,Overload protection, Over voltage protection ,Under voltage protection, Over heat protection ect. |
| LED Display | Can display the real time running status of the inverter , monitor parameter .function parameter and fault code and other information of the inverter. |
| Ambient | Place to be used | Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc |
| Altitude | Below 1000 M |
| Ambient Temperature | -10 ºC to +45 ºC (Bare Machine: -10 ºC to+50 ºC) |
| Humidity | 20%-90% RH without dew condensation |
| Vibration | <0.5G |
| Storage temperature | -20~+60°C |
CHZIRI Package
FAQ
1. Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2. What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3. What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4. What's your warranty terms?
We offer 12 months warranty time .
5. Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6. Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7. How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8. Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
