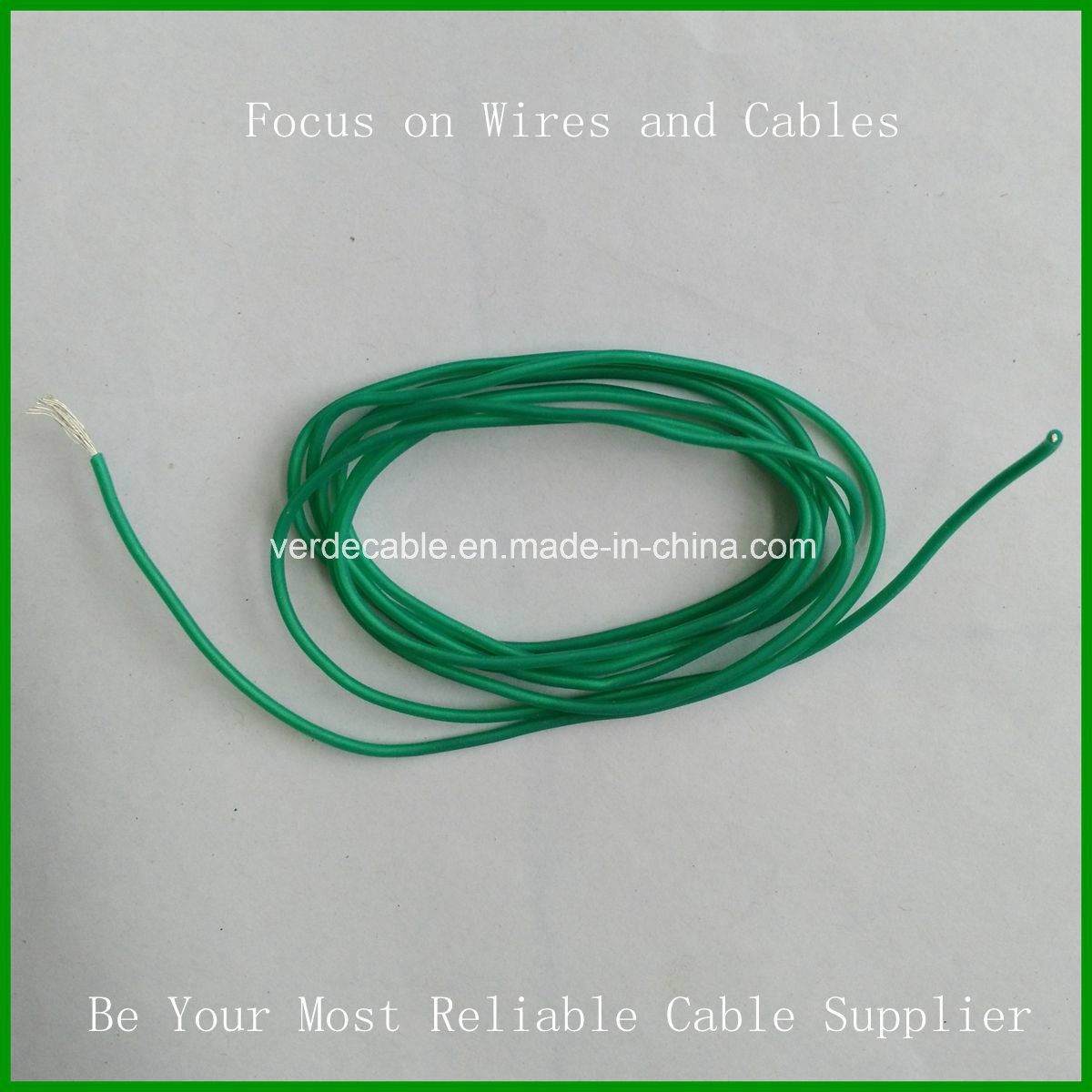

High Temperature Flexible Cable Silicone Wire
Price: |
US $ 0.1-1.5/Meter |
Min Order: |
500/Meter |
Pay Type: |
L/C,T/T,Western Union |
Prod Model: |
silicone wire |
Size: |
1.5, 2,5, 4, 6, 10, 16,.....95mm2......240mm2 |
Produceing Experience: |
15 Years |
OEM: |
Yes |
Export Experience: |
Southeast Asia,Saudi Arabia,Australia,Europe |
Customized: |
Yes |
Export To: |
Israel,Malaysia,Poland,Italy,Russia,UAE |
AWG Size: |
AWG24 , AWG22, AWG20 , AWG18, AWG16 , AWG14 |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
High Temperature Resistant,Welding Usage |
Insulation Material: |
Silicone Rubber |
Certification: |
VDE |
Conductor Material: |
Tinned Copper, Silver Plated Copper |
Sheath Material: |
Silicone Rubber |
Range Of Application: |
Flame Retardant,Heat Resisiting,High Temperature |
Brand: |
Verde |
Product Description
250ºC
High Temperature Resistance Flexible Silicone Wire CableDifferent Specifications can be Customized according to your special requirement.1.Description:Rated Voltage:300/500V,0.6/1kV, 10KV 20KV 30KV 50KV HV Silicone wire
Temperature Ratings: -100ºC~+250ºC
2.Cable Structure:Conductor: Annealed Copper,Tinned Copper
Insulation: Silicone Rubber
If need as per customer's request,Inner Covering:Filling or /and Tape wrapped or/and Extruded
Sheathing:Silicone Rubber
3.Standard:1).UL ,IEC60502
2).Different specification and standard can be customized.4. Main Technical Data For one part of Silicone wire.
If you want to know more technical specification, pls directly contact us.Conductor | Insulation |
3KV | 6KV | 10KV | 20KV | 50KV |
AWG | Conductor construction NO. *φ mm | Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm | Insulation Thick mm | Overall Diameter mm |
26 | 7*0.15 | 0.49 | 0.5 | 1.49 | 0.7 | 1.89 | 1 | 2.49 | 1.3 | 3.09 | 2.5 | 5.49 |
24 | 7*0.20 | 0.6 | 0.5 | 1.6 | 0.7 | 2 | 1 | 2.6 | 1.3 | 3.2 | 2.5 | 5.6 |
22 | 7*0.26 | 0.78 | 0.5 | 1.76 | 0.7 | 2.14 | 1 | 2.78 | 1.3 | 3.36 | 2.5 | 5.76 |
20 | 7*0.30 | 0.91 | 0.5 | 1.91 | 0.7 | 2.31 | 1 | 2.91 | 1.3 | 3.51 | 2.5 | 5.91 |
18 | 7*0.40 | 1.17 | 0.5 | 2.17 | 0.7 | 2.57 | 1 | 3.17 | 1.3 | 3.77 | 2.5 | 6.17 |
16 | 7*0.50 | 1.5 | 0.5 | 2.5 | 0.7 | 2.9 | 1 | 3.5 | 1.3 | 4.1 | 2.5 | 6.5 |
14 | 43*0.25 | 1.83 | 0.6 | 3.03 | 0.8 | 3.43 | 1.2 | 4.23 | 1.5 | 4.83 | 3 | 7.83 |
5.Type Description &Specification Range we produceType & Description we can supply | Core Number | Nominal cross section area (mm2) |
Tinned copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~to500 for single core 1.5 ~240 for multi-core |
Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring | 3, 4, 5, 3+1,3+2, 4+1 | 1.5~240 |
Flame Retardant Flexible Type Copper conductor Silicone Rubber Insulation and sheathed cable | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
Flame Retardant Copper conductor Silicone Rubber Insulation and sheathed rubber cable With Copper wire Braided Shielding Type | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |
Copper conductor Silicone Rubber Insulation and sheathed rubber cable For Moving usage | 1, 2, 3, 4, 5, 3+1,3+2, 4+1 | 1.5~500 for single core 1.5~240 for multi-core |

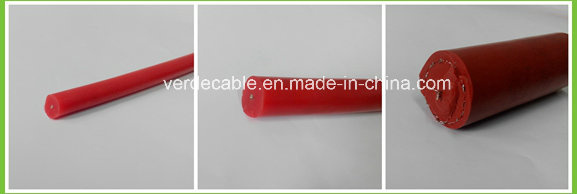

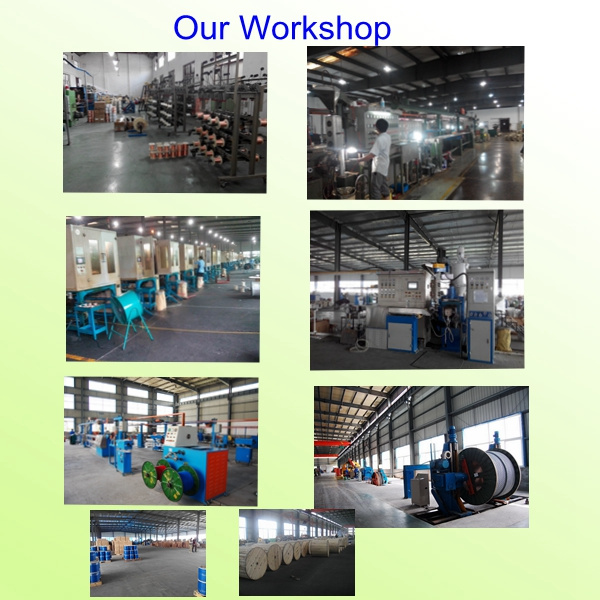

Silicone Cable with 10KV 20KV ~ 50KV 6.Our workshop If you want to know more techincal information,pls contact us.
sending email or telephon us:
May Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
Tel:0086-371-55611184
Mob:0086-13938400126
Focus on Cables and Wires
Be Your Most Reliable Supplier
Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
