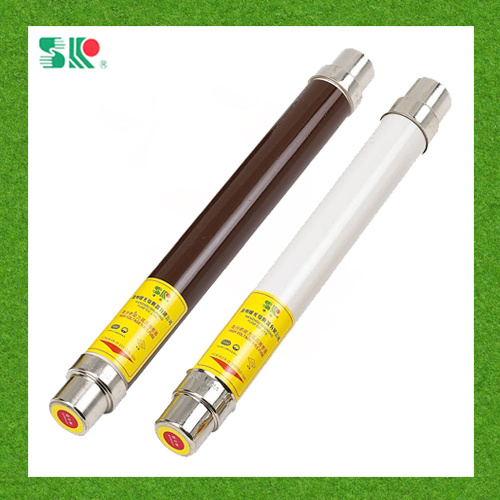

High Voltage Current Limiting Fuse

Name: High Voltage Current Limiting Fuse
Brand: all-electronics-online.com
SKU: 763317125
Availability: InStock
Rating: 5 (132 reviews)

Price:	US $ 8.08-29/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

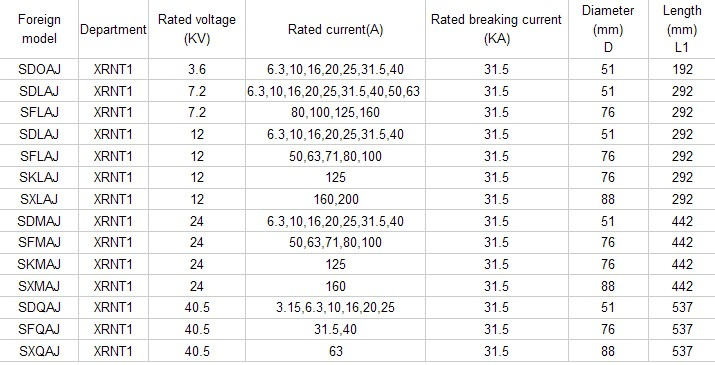

Prod Model:	XRNT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	292mm,442mm,537mm
Diameter:	51,63,76,88mm
Material:	Procelain
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	Stubular Structure
Fusing Device:	Striker
Standard:	IEC282-1,DIN Standard

Product Description

Applications

H. V current-limiting fuses type S is mainly used in AC50Hz, rated voltage 3.6~40.5KV, rated current up to 200A circuit for protection transformers and power equipments from overload and short-circuit. It can also be used with load switch, vacuum contact.
It conforms to IEC282-1, GB15166.2 and DIN standard.

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
