High Voltage Limit Current Fuse for Protection Electrical Motor (England BS Standard)

Name: High Voltage Limit Current Fuse for Protection Electrical Motor (England BS Standard)
Brand: all-electronics-online.com
SKU: 808643165
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

The product can be used in indoor Ac system of 50Hz and rated voltage 3.6kV and 7.2KV 12Kv. When used together with other protection facilitles(such as switches and vauum contactors),it works to protect high-volttage motor and other electric facilities from overloading and circrit break.

Main technical characteristics

1.In required working conditions,the fuse can break any fault current between the minimum break current 1.6-3 and the rated break current.
2.See Chart 3 for time-current property.The section above the minimum break current is by dotted line.
3.See Chart 4 for current limn property.
4.See Chart 5 for l²t property.

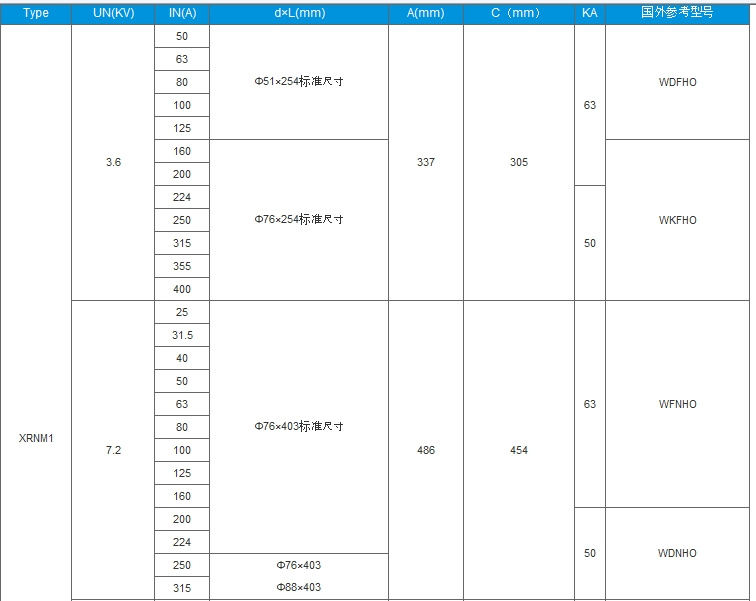

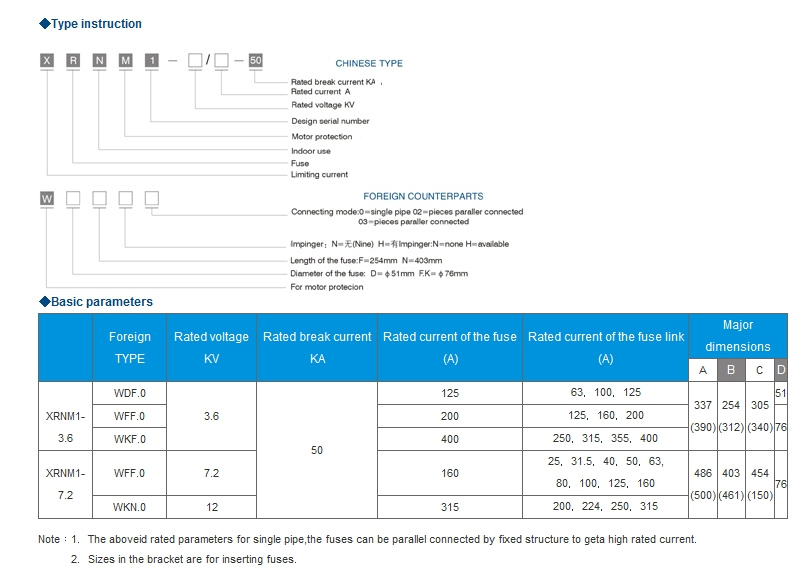

Prod Model:	XRNM1
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	BS

Zhejiang Zhiguang Fuse Co., Ltd. A modern company specialized in high and low voltage fuseptoduclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100 types of series "ZGUA"producls covering more than1000 specificalions, all the productscomply with international IEC standard and national GB13539and GB15166 standard and have passed.

We specialized in high and low voltage fuse produclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100types of series "ZGUA"producls covering more than1000 specificalions, all the products comply with international IEC standard and national GB13539and GB15166 standard and have passed.

The market is the base for the entrprise's survival. After years of market test; The products notonly satisfy the customers at home but also have been exported to above 30 countries and areas, ithas won the reputation all of the world with its advanced technology, perfect functiion, reliable quality and high quality service.

In order to realize sustainable development of enterprise in the competitive market, the companyalwavs intends to offer better products, more advanced technology and betler service to the customer with the tenet of "Quality No. 1, Managing with credibilily"and create a more magnificent future withmind and wisdom.
